Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN4N7G80DFIXED IND 4.7NH 1.2A 0.071OHM SM |
52,345 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.7 nH | ±2% | 1.2 A | - | Unshielded | 71mOhm Max | 31 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN21NG80DFIXED IND 21NH 780MA 0.202OHM SM |
44,970 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 21 nH | ±2% | 780 mA | - | Unshielded | 202mOhm Max | 30 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

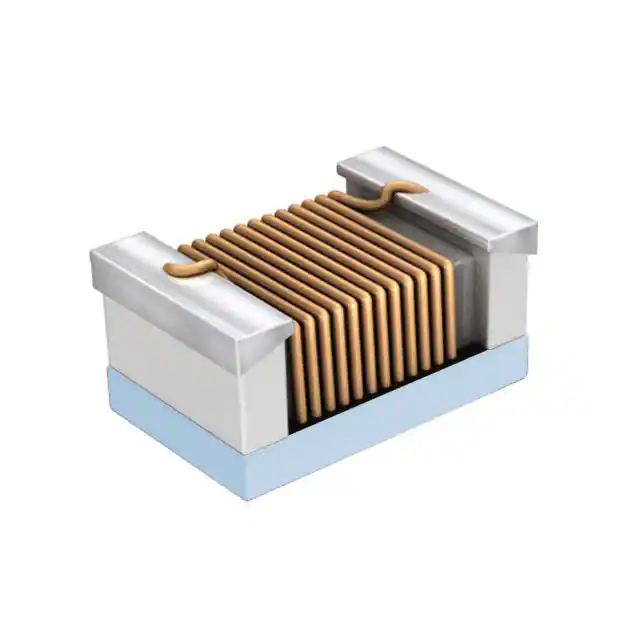

0402HM-150EKTSFIXED IND 15NH 460MA 160MOHM SMD |
43,153 | 0.25 |
|
Datasheet |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 460 mA | - | Unshielded | 160mOhm | 30 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
NLV32T-3R3J-EFFIXED IND 3.3UH 260MA 1.2OHM SMD |
34,158 | 0.25 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 260 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LQW2BASR33J00LFIXED IND 330NH 310MA 1.4OHM SMD |
33,326 | 0.24 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 330 nH | ±5% | 310 mA | - | Unshielded | 1.4Ohm Max | 48 @ 250MHz | 650MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW15AN15NG80DFIXED IND 15NH 1.15A 0.114OHM SM |
32,246 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 15 nH | ±2% | 1.15 A | - | Unshielded | 114mOhm Max | 31 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN47NG80DFIXED IND 47NH 440MA 0.648OHM SM |
30,539 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 47 nH | ±2% | 440 mA | - | Unshielded | 648mOhm Max | 25 @ 200MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQW15AN6N2G80DFIXED IND 6.2NH 1.6A 0.056OHM SM |
28,595 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.2 nH | ±2% | 1.6 A | - | Unshielded | 56mOhm Max | 33 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW2BAS22NJ00LFIXED IND 22NH 500MA 220MOHM SMD |
28,360 | 0.24 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW15AN4N2B80DFIXED IND 4.2NH 1.8A 0.044OHM SM |
27,819 | 0.08 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.2 nH | ±0.1nH | 1.8 A | - | Unshielded | 44mOhm Max | 30 @ 250MHz | 9.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN30NG80DFIXED IND 30NH 660MA 0.309OHM SM |
25,528 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 30 nH | ±2% | 660 mA | - | Unshielded | 309mOhm Max | 30 @ 250MHz | 3.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-BR-Series.jpg)
|
BRL1608T4R7MFIXED IND 4.7UH 310MA 1.3OHM SMD |
24,863 | 0.34 |
|
Datasheet |
BR, L Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 310 mA | 240mA | Unshielded | 1.3Ohm Max | - | 150MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
LQW15AN2N6B80DFIXED IND 2.6NH 1.95A 0.035OHM |
24,114 | 0.08 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.6 nH | ±0.1nH | 1.95 A | - | Unshielded | 35mOhm Max | 30 @ 250MHz | 14.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N9B80DFIXED IND 4.9NH 1.2A 0.071OHM SM |
23,875 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.9 nH | ±0.1nH | 1.2 A | - | Unshielded | 71mOhm Max | 27 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN5N1B80DFIXED IND 5.1NH 1.77A 0.04OHM SM |
23,661 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.1 nH | ±0.1nH | 1.77 A | - | Unshielded | 40mOhm Max | 35 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N9G80DFIXED IND 3.9NH 1.95A 0.03OHM SM |
22,686 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.9 nH | ±2% | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN13NG80DFIXED IND 13NH 1.24A 0.093OHM SM |
22,356 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 13 nH | ±2% | 1.24 A | - | Unshielded | 93mOhm Max | 30 @ 250MHz | 5.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN56NG80DFIXED IND 56NH 340MA 0.996OHM SM |
21,398 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 56 nH | ±2% | 340 mA | - | Unshielded | 996mOhm Max | 25 @ 200MHz | 2.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N3B80DFIXED IND 4.3NH 1.8A 0.044OHM SM |
21,216 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.3 nH | ±0.1nH | 1.8 A | - | Unshielded | 44mOhm Max | 32 @ 250MHz | 9.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-1,80mm.jpg)
|
CBC2016T100MFIXED IND 10UH 350MA 1.066OHM SM |
20,753 | 0.25 |
|
Datasheet |
CB, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 350 mA | 380mA | Unshielded | 1.066Ohm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
