Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1825J000FIXED IND 8.2MH 54MA 80.6OHM SMD |
440 | 0.62 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±5% | 54 mA | 115mA | Unshielded | 80.6Ohm Max | 30 @ 252kHz | 600kHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
SRP6530A-1R5MIND,7.1X6.6X3MM,1.5UH20%,10A,SHD |
421 | 1.25 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 10 A | 18A | Shielded | 15mOhm Max | 30 @ 7.96MHz | 45MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

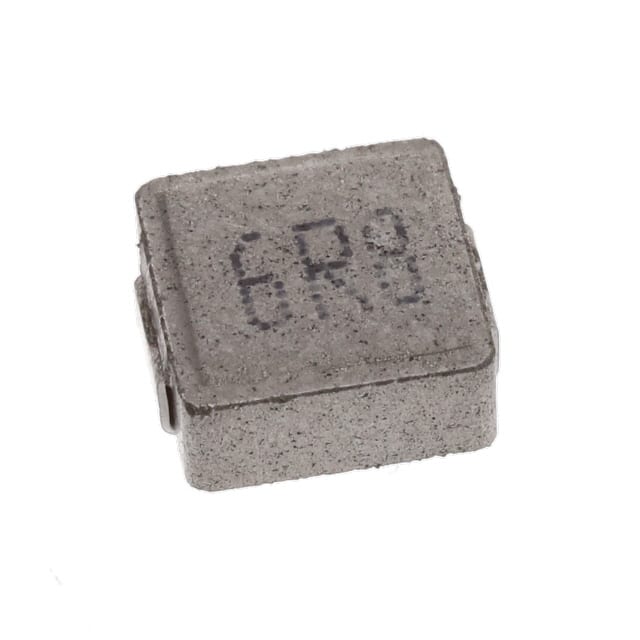

SRP6530A-6R8MIND,7.1X6.6X3MM,6.8UH20%,5.5A,SH |
186 | 1.25 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.5 A | 9A | Shielded | 60mOhm Max | 26 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-MPI4040R2-R47-RFIXED IND 470NH 6.4A 13 MOHM SMD |
7,437 | 1.40 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 6.4 A | 12.2A | Shielded | 13mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
744040420033WE-LQS SMT SEMI-SHIELDED POWER I |
5,363 | 0.00 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±30% | 4.5 A | 7.6A | Shielded | 13mOhm | - | 326MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.071" (1.80mm) |
|
|
744040240016WE-LQS SMT SEMI-SHIELDED POWER I |
3,138 | 0.00 |
|
Datasheet |
WE-LQS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 160 nH | ±20% | 3.7 A | 7A | Shielded | 16mOhm | - | 644MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74404032680WE-LQS SMT SEMI-SHIELDED POWER I |
3,089 | 0.00 |
|
Datasheet |
WE-LQS | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 340 mA | 350mA | Shielded | 1.6Ohm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
ASPI-0403S-102M-TFIXED IND 1MH 150MA 3.4 OHM SMD |
2,183 | 0.55 |
|
Datasheet |
ASPI-0403S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 150 mA | - | Shielded | 3.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
VCUW25201B-R47MS5IND SMD 0.47UH AUTO GRADE CHOKE |
1,990 | 0.00 |
|
Datasheet |
VCUW25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 4 A | 5.6A | Unshielded | 26mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VCTA32251B-150MS6IND SMD 15.0UH AUTO GRADE CHOKE |
1,970 | 0.00 |
|
Datasheet |
VCTA32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 700 mA | 1A | Unshielded | 804mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
B82442T1335J000FIXED IND 3.3MH 85MA 32.8OHM SMD |
1,469 | 0.62 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 85 mA | 175mA | Unshielded | 32.8Ohm Max | 30 @ 252kHz | 1MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
AMDLH5030S-2R2MTFIXED IND 2.2UH 7.5A 14.4MOHM SM |
1,000 | 0.00 |
|
Datasheet |
AMDLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy | 2.2 µH | ±20% | 10.5 A | 8.5A | Shielded | 14.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMDLH5030S-150MTFIXED IND 15UH 2.2A 108MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
AMDLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy | 15 µH | ±20% | 4.1 A | 2.6A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMDLH5030S-3R3MTFIXED IND 3.3UH 6.5A 19.2MOHM SM |
1,000 | 0.00 |
|
Datasheet |
AMDLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy | 3.3 µH | ±20% | 8.5 A | 7.5A | Shielded | 19.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMDLH5030S-1R0MTFIXED IND 1UH 10.5A 6.7MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
AMDLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy | 1 µH | ±20% | 14 A | 11A | Shielded | 6.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLH5030S-R33MTFIXED IND 0.33UH 19A 3.4MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
AMPLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 330 nH | ±20% | 21 A | 25A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLH5030S-R47MTFIXED IND 0.47UH 17A 3.9MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
AMPLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 470 nH | ±20% | 19 A | 20A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLH5030S-1R0MTFIXED IND 1UH 13A 6.7MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
AMPLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 15 A | 16A | Shielded | 6.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMDLH5030S-R68MTFIXED IND 0.68UH 10.5A 4.3MOHM S |
1,000 | 0.00 |
|
Datasheet |
AMDLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy | 680 nH | ±20% | 15 A | 11.5A | Shielded | 4.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMDLH5030S-R47MTFIXED IND 0.47UH 12.5A 3.7MOHM S |
998 | 0.00 |
|
Datasheet |
AMDLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy | 470 nH | ±20% | 18 A | 14A | Shielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
