Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCSC108T-150MS6KIND SMD 15.0UH AUTO GRADE CHOKE |
307 | 0.00 |
|
Datasheet |
VCSC108T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 4.6 A | 9.1A | Unshielded | 46.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.315" (8.00mm) |
|
|
VCSC108T-220MS6KIND SMD 22.0UH AUTO GRADE CHOKE |
249 | 0.00 |
|
Datasheet |
VCSC108T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 3.1 A | 7.1A | Unshielded | 99mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.315" (8.00mm) |
|
|
VCSC108T-100MS6KIND SMD 10.0UH AUTO GRADE CHOKE |
214 | 0.00 |
|
Datasheet |
VCSC108T | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 4.8 A | 10.6A | Unshielded | 37.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.315" (8.00mm) |
|

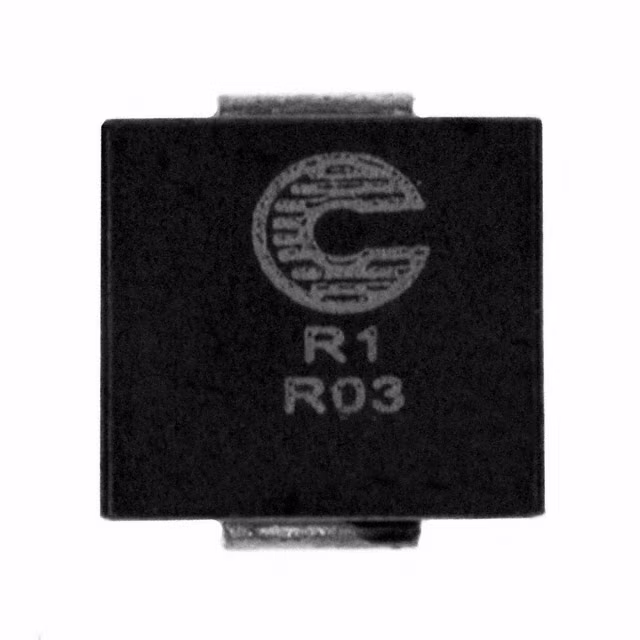

FP0805R1-R03-RFIXED IND 32NH 65A 0.17 MOHM SMD |
4,714 | 1.11 |
|
Datasheet |
FLAT-PAC, FP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 32 nH | ±10% | 65 A | 110A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.300" L x 0.295" W (7.62mm x 7.49mm) | 0.195" (4.96mm) |
|
|
IHLP5050FDER100M0PFIXED IND 10UH 12.2A 17.2 MOHM S |
250 | 0.00 |
|
Datasheet |
IHLP-5050FD-0P | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 12.2 A | 16.1A | Shielded | 17.2mOhm Max | - | 10.9MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER4R7M0PFIXED IND 4.7UH 16.3A 9.6 MOHM S |
248 | 0.00 |
|
Datasheet |
IHLP-5050FD-0P | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 16.3 A | 21.9A | Shielded | 9.6mOhm Max | - | 15.4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER3R3M0PFIXED IND 3.3UH 21A 6.1 MOHM SMD |
248 | 0.00 |
|
Datasheet |
IHLP-5050FD-0P | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 21 A | 27.1A | Shielded | 6.1mOhm Max | - | 21.3MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER1R0M0PFIXED IND 1UH 37.9A 1.6 MOHM SMD |
230 | 0.00 |
|
Datasheet |
IHLP-5050FD-0P | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 37.9 A | 36.5A | Shielded | 1.6mOhm Max | - | 41MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
|
PID120H-251MDIFFERENTIAL MODE INDUCTOR 2X250 |
109 | 0.00 |
|
Datasheet |
PID*-251M | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 250 µH | ±20% | 820 mA | 1.16A | Shielded | 410mOhm | - | - | - | -40°C ~ 150°C | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
SPM10040T-1R0M-HZRAUTO IND 1H 25.7A 3.44MOHM |
4,980 | 0.00 |
|
Datasheet |
SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 19.1 A | 25.7A | Shielded | 3.44mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPM10040T-3R3M-HZRAUTO IND 3.3H 12.7A 11MOHM |
839 | 0.00 |
|
Datasheet |
SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 11.1 A | 12.7A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
IHLP5050FDERR15MA1IHLP-5050FD-A1 .15 20% ER E3 |
470 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 150 nH | ±20% | 55 A | 118A | Shielded | 600mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDERR33MA1IHLP-5050FD-A1 .33 20% ER E3 |
300 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 46 A | 65A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER1R2MA1IHLP-5050FD-A1 1.2 20% ER E3 |
265 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 30 A | 48A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDERR40MA1IHLP-5050FD-A1 .4 20% ER E3 |
250 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 400 nH | ±20% | 44 A | 64A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDERR56MA1IHLP-5050FD-A1 .56 20% ER E3 |
250 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 37 A | 62A | Shielded | 1.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDERR30MA1IHLP-5050FD-A1 .3 20% ER E3 |
250 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 300 nH | ±20% | 48 A | 72A | Shielded | 0.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDERR68MA1IHLP-5050FD-A1 .68 20% ER E3 |
248 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 35 A | 60A | Shielded | 1.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
|
IHLP5050FDER1R5M51FIXED IND 1.5UH 27.5A 2.57 MOHM |
247 | 1.43 |
|
Datasheet |
IHLP-5050FD-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 27.5 A | 23.5A | Shielded | 2.57mOhm Max | - | 29.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
|
|
IHLP5050FDER5R6MA1IHLP-5050FD-A1 5.6 20% ER E3 |
240 | 0.00 |
|
Datasheet |
IHLP-5050FD-A1 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 5.6 µH | ±20% | 13.5 A | 26.5A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.525" L x 0.508" W (13.34mm x 12.90mm) | 0.252" (6.40mm) |
