Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-BR-Series.jpg)
|

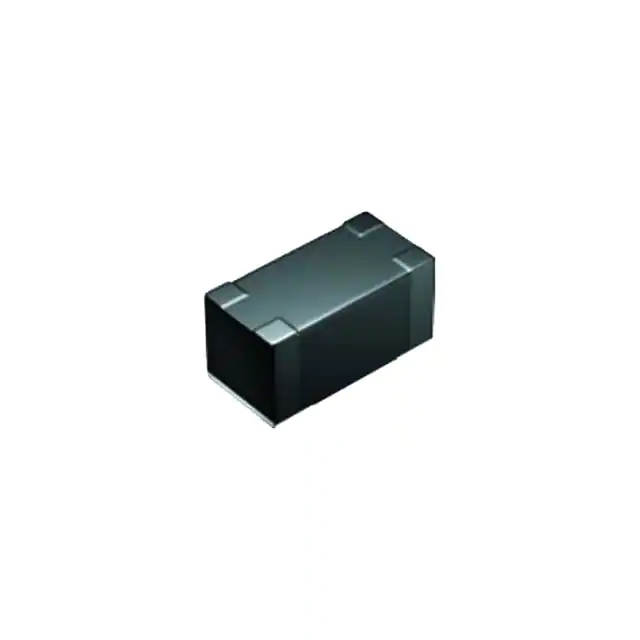

BRC2016T101KFIXED IND 100UH 170MA 4.42OHM SM |
52,083 | 0.29 |
|
Datasheet |
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 170 mA | 140mA | Unshielded | 4.42Ohm Max | - | 7MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LQM2HPN2R2MJ0LFIXED IND 2.2UH 1A 150 MOHM SMD |
48,583 | 0.23 |
|
Datasheet |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 1 A | - | Shielded | 150mOhm Max | - | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-2,70mm.jpg)
|
CBC3225T470MRFIXED IND 47UH 480MA 871MOHM SMD |
46,958 | 0.29 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 480 mA | 390mA | Unshielded | 871mOhm Max | - | 10MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
-2,5x2,0x1,00mm.jpg)
|
CIGT252010EH2R2MNEFIXED IND 2.2UH 2.4A 80MOHM SMD |
28,209 | 0.28 |
|
Datasheet |
CIGT | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 2.4 A | 2.7A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
BRC2016T4R7MFIXED IND 4.7UH 610MA 351MOHM SM |
26,771 | 0.29 |
|
Datasheet |
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 610 mA | 660mA | Unshielded | 351mOhm Max | - | 78MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
CBC3225T2R2MRFIXED IND 2.2UH 1.13A 104MOHM SM |
24,129 | 0.29 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.13 A | 2A | Unshielded | 104mOhm Max | - | 190MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
LQW18ANR10G8ZDFIXED IND 100NH 490MA 0.63OHM SM |
21,730 | 0.29 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 100 nH | ±2% | 490 mA | - | Unshielded | 630mOhm Max | 34 @ 150MHz | 1.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
B78108E1223K009FIXED IND 22UH 1.3A 350 MOHM TH |
19,638 | 0.47 |
|
Datasheet |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.3 A | 1.25A | Unshielded | 350mOhm Max | 40 @ 796kHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
NLFV25T-3R3M-PFFIXED IND 3.3UH 280MA 240MOHM SM |
19,476 | 0.28 |
|
Datasheet |
NLFV | Nonstandard | Tape & Reel (TR) | Last Time Buy | Wirewound | - | 3.3 µH | ±20% | 280 mA | - | Shielded | 240mOhm Max | 5 @ 7.96MHz | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
LQG15WH1N5B02DFIXED IND 1.5NH 1A 0.04OHM SMD |
18,813 | 0.10 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.5 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 11GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLF1005GR47JT000FIXED IND 470NH 50MA 420MOHM SMD |
17,837 | 0.31 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±5% | 50 mA | - | Shielded | 420mOhm Max | 30 @ 10MHz | 190MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH1N0B02DFIXED IND 1NH 1.2A 0.03OHM SMD |
17,371 | 0.29 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
BRC2016T100KFIXED IND 10UH 520MA 520MOHM SMD |
16,458 | 0.29 |
|
Datasheet |
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 520 mA | 450mA | Unshielded | 520mOhm Max | - | 35MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
NLCV32T-R10M-EFRDFIXED IND 100NH 2.85A 24MOHM SMD |
15,868 | 0.31 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 2.85 A | - | Unshielded | 24mOhm Max | 10 @ 25.2MHz | 800MHz | AEC-Q200 | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
-BR-Series.jpg)
|
BRL2012T100MFIXED IND 10UH 330MA 1.105OHM SM |
15,573 | 0.30 |
|
Datasheet |
BR, L Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 330 mA | 270mA | Unshielded | 1.105Ohm Max | - | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LQG15WH5N1B02DFIXED IND 5.1NH 800MA 0.12OHM SM |
15,527 | 0.10 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 5.1 nH | ±0.1nH | 800 mA | - | Unshielded | 120mOhm Max | 23 @ 250MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH1N8B02DFIXED IND 1.8NH 1A 0.04OHM SMD |
15,056 | 0.00 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.8 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 9GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
 18.jpg)
|

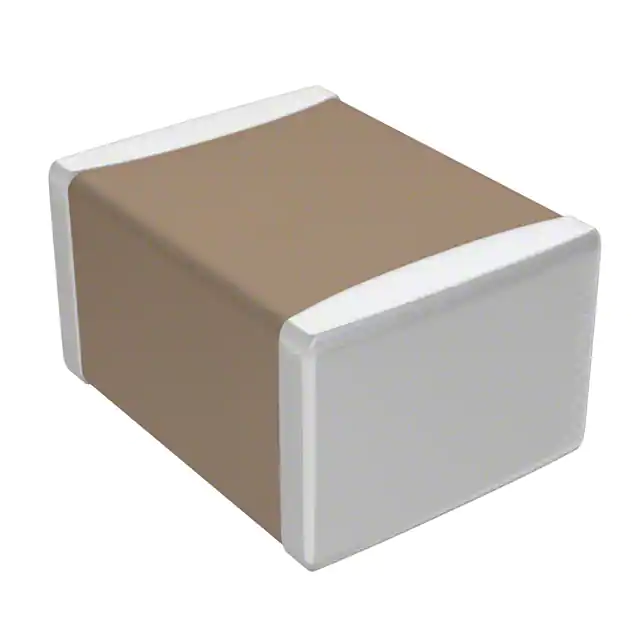

MLH2012F22NKT000FIXED IND 22NH 1.85A 44 MOHM SMD |
13,985 | 0.30 |
|
Datasheet |
MLH2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 nH | ±10% | 1.85 A | 3A | Shielded | 44mOhm | - | 1GHz | - | - | - | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
CBC3225T150KRFIXED IND 15UH 850MA 253.5 MOHM |
13,565 | 0.29 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 850 mA | 730mA | Unshielded | 253.5mOhm Max | - | 20MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
CBC3225T470KRFIXED IND 47UH 480MA 871MOHM SMD |
13,333 | 0.29 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 480 mA | 390mA | Unshielded | 871mOhm Max | - | 10MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
