Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLP4612T-4R7MR72FIXED IND 4.7UH 720MA 280MOHM SM |
11,103 | 1.02 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 720 mA | 880mA | Unshielded | 280mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLP4612T-1R8M1R3FIXED IND 1.8UH 1.3A 140MOHM SMD |
8,721 | 1.02 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±20% | 1.3 A | 1.7A | Unshielded | 140mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLP4612T-100MR52FIXED IND 10UH 520MA 620MOHM SMD |
7,602 | 1.02 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 520 mA | 590mA | Unshielded | 620mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.047" (1.20mm) |
|

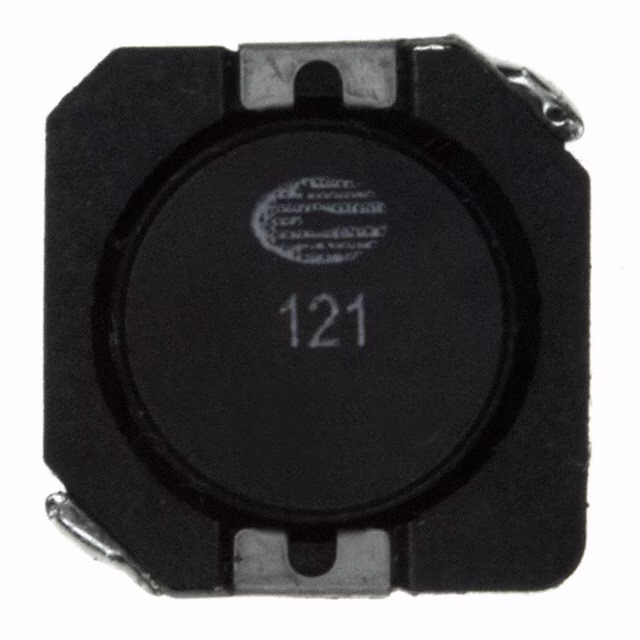

DR1030-121-RFIXED IND 120UH 800MA 602MOHM SM |
7,000 | 0.49 |
|
Datasheet |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±30% | 800 mA | 950mA | Shielded | 602mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
|
VLP4612T-3R3MR85FIXED IND 3.3UH 850MA 260MOHM SM |
5,696 | 1.02 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 850 mA | 900mA | Unshielded | 260mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.047" (1.20mm) |
|
PA4341.223NLTFIXED IND 22UH 2A 190 MOHM SMD |
3,780 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 2 A | 3.5A | Shielded | 190mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
VLP4612T-6R8MR67FIXED IND 6.8UH 670MA 380MOHM SM |
2,935 | 1.02 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 670 mA | 770mA | Unshielded | 380mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.047" (1.20mm) |
|

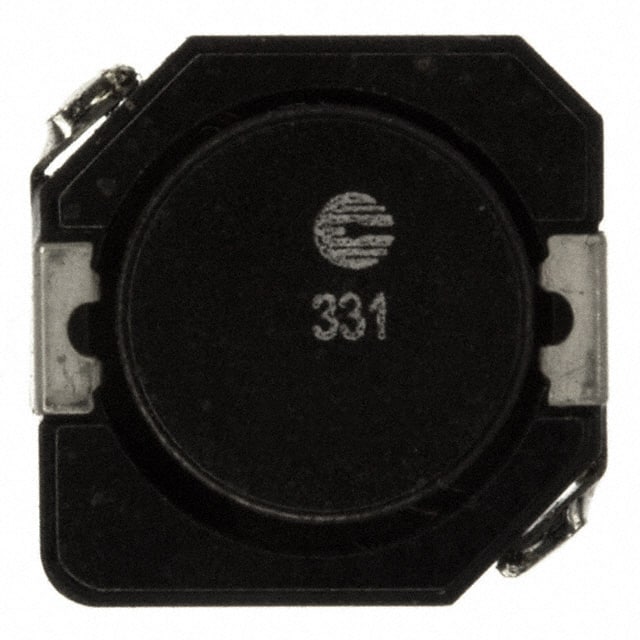

DR1040-331-RFIXED IND 330UH 520MA 1.09OHM SM |
1,527 | 1.07 |
|
Datasheet |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 520 mA | 700mA | Shielded | 1.09Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
VLP4612T-1R0M1R5FIXED IND 1UH 1.5A 110 MOHM SMD |
1,336 | 1.02 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 1.5 A | 2.3A | Unshielded | 110mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.047" (1.20mm) |
|
|
PA4341.361NLTFIXED IND 360NH 19A 4.2 MOHM SMD |
9,990 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 19 A | 32A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.751NLTFIXED IND 750NH 14.5A 6.6MOHM SM |
9,848 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 750 nH | ±20% | 14.5 A | 24.5A | Shielded | 6.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.562NLTFIXED IND 5.6UH 5A 48 MOHM SMD |
9,600 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 5 A | 9A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
SRP0415-1R5KFIXED IND 1.5UH 5.4A 30 MOHM SMD |
5,872 | 1.09 |
|
Datasheet |
SRP0415 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1.5 µH | ±10% | 5.4 A | 7A | Shielded | 30mOhm Max | 43 @ 7.96MHz | 43MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
SRP0420-4R7KFIXED IND 4.7UH 3.1A 91 MOHM SMD |
5,077 | 1.09 |
|
Datasheet |
SRP0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 4.7 µH | ±10% | 3.1 A | 4.6A | Shielded | 91mOhm Max | 37 @ 7.96MHz | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
|
PA4341.161NLTFIXED IND 160NH 27A 1.9 MOHM SMD |
4,990 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 160 nH | ±30% | 27 A | 45A | Shielded | 1.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.821NLTFIXED IND 820NH 13A 8 MOHM SMD |
4,990 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.122NLTFIXED IND 1.2UH 10A 12 MOHM SMD |
4,990 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 10 A | 20A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.221NLTFIXED IND 220NH 23A 2.8 MOHM SMD |
4,986 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.822NLTFIXED IND 8.2UH 4A 68 MOHM SMD |
4,890 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.202NLTFIXED IND 2UH 8.2A 19 MOHM SMD |
4,875 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2 µH | ±20% | 8.2 A | 15A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
