Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSAB0530-2R2MSMD MOLDING POWER CHOKE |
1,840 | 1.03 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 5.9 A | 9.5A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.197" W (5.40mm x 5.00mm) | 0.118" (3.00mm) |
|
SPM3015T-R47MFIXED IND 470NH 4.3A 34.5MOHM SM |
1,775 | 1.34 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.3 A | 6.1A | Shielded | 34.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SPM3015T-3R3MFIXED IND 3.3UH 2A 151.9MOHM SMD |
1,625 | 1.34 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2 A | 2.4A | Shielded | 151.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SPM3015T-2R2MFIXED IND 2.2UH 2.6A 97.4MOHM SM |
1,558 | 1.34 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.6 A | 3A | Shielded | 97.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SPM3015T-1R5MFIXED IND 1.5UH 3A 73.1 MOHM SMD |
1,417 | 1.34 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3 A | 3.5A | Shielded | 73.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
SPM3010T-1R5M-LRFIXED IND 1.5UH 2.3A 118.6 MOHM |
1,395 | 1.34 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.3 A | 3.2A | Shielded | 118.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.039" (1.00mm) |
|

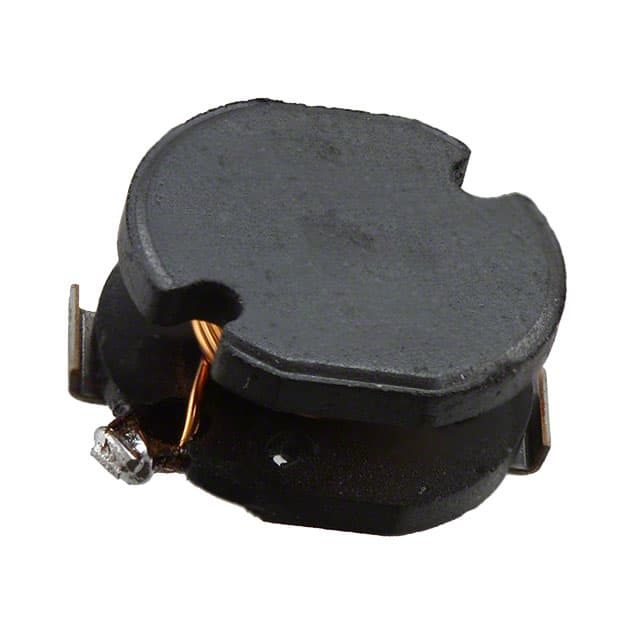

A814AY-120M=P3FIXED IND 12UH 2.48A 50 MOHM SMD |
415 | 1.16 |
|
Datasheet |
D10F | Nonstandard | Cut Tape (CT) | Obsolete | Wirewound | - | 12 µH | ±20% | 2.48 A | - | Unshielded | 50mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.445" L x 0.382" W (11.30mm x 9.70mm) | 0.197" (5.00mm) |
|
CSAB0530-R47MFIX IND 0.47UH 10A 11.0 MOHM SMD |
200 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 470 nH | ±20% | 10 A | 14A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-100MFIX IND 10UH 2.6A 125.0 MOHM SMD |
200 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 2.6 A | 4A | Shielded | 125mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-1R5MFIX IND 1.5UH 7.4A 23.0 MOHM SMD |
200 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 7.4 A | 12A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-6R8MFIX IND 6.8UH 3.3A 90.0 MOHM SMD |
200 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 3.3 A | 4A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-R33MFIX IND 0.33UH 13.5A 5.6 MOHM SM |
200 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 330 nH | ±20% | 13.5 A | 15A | Shielded | 5.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-3R3MFIX IND 3.3UH 5A 42.0 MOHM SMD |
200 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 5 A | 6A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
CSAB0530-R22MFIX IND 0.22UH 16.3A 4.0 MOHM SM |
150 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 220 nH | ±20% | 16.3 A | 19A | Shielded | 4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
0415CDMCCDS-R68MCFIXED IND 680NH 7.3A 19.2MOHM SM |
3,000 | 1.28 |
|
Datasheet |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 7.3 A | 8.6A | Shielded | 19.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
CSAB0530-R68MSMD MOLDING POWER CHOKE |
1,995 | 0.00 |
|
Datasheet |
CSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 680 nH | ±20% | 9.7 A | 12A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
SPM3015T-R47M-LRFIXED IND 470NH 4.8A 28.2MOHM SM |
1,618 | 1.34 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.8 A | 7A | Shielded | 28.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-1R0MCFIXED IND 1UH 5.6A 27.6MOHM SMD |
1,173 | 1.26 |
|
Datasheet |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 5.6 A | 8A | Shielded | 27.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
CSAC0730-3R3MSMD MOLDING POWER CHOKE |
985 | 0.00 |
|
Datasheet |
CSAC0730 | 2-SMD | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.5 A | 12A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CSAC0730-4R7MSMD MOLDING POWER CHOKE |
965 | 0.00 |
|
Datasheet |
CSAC0730 | 2-SMD | Cut Tape (CT) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
