Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
AIRD-01-6R8MFIXED IND 6.8UH 9A 8 MOHM TH |
960 | 0.00 |
|
Datasheet |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 9 A | 26A | Unshielded | 8mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.650" Dia (16.50mm) | 0.827" (21.00mm) |
|
SPM4012T-4R7M-CAFIXED IND 4.7UH 2A 205 MOHM SMD |
959 | 1.80 |
|
Datasheet |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 2 A | 2A | Shielded | 205mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-1R5M-CAFIXED IND 1.5UH 3.5A 70 MOHM SMD |
843 | 1.80 |
|
Datasheet |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 3.5 A | 3.5A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4015T-R47M-CAFIXED IND 470NH 5.5A 24.4MOHM SM |
126 | 1.80 |
|
Datasheet |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 5.5 A | 10A | Shielded | 24.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
ELT-5KN135CFIXED IND 1.5MH 40MA 20 OHM SMD |
3,280 | 1.90 |
|
Datasheet |
5KN | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 mH | ±10% | 40 mA | - | Unshielded | 20Ohm | - | - | - | - | 1 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
PM4547.471NLTFIXED IND 470NH 5.5A 28 MOHM SMD |
2,988 | 1.71 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 5.5 A | 8A | Unshielded | 28mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.681NLTFIXED IND 680NH 4.5A 42 MOHM SMD |
2,770 | 1.71 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 4.5 A | 6.5A | Unshielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.332NLTFIXED IND 3.3UH 2.5A 205MOHM SMD |
2,770 | 1.71 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.5 A | 3.2A | Unshielded | 205mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
|
PM4547.472NLTFIXED IND 4.7UH 1.9A 264MOHM SMD |
1,964 | 1.71 |
|
Datasheet |
PM4547 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.9 A | 2.8A | Unshielded | 264mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
CDRH50D28BT150NP-1R0NCFIXED IND 1UH 3.6A 18 MOHM SMD |
1,725 | 1.72 |
|
Datasheet |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 3.6 A | 5.5A | Shielded | 18mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|

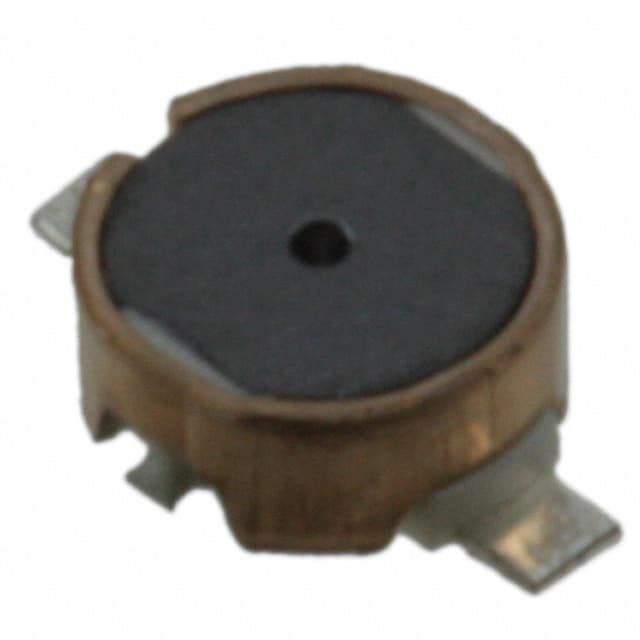

ELT-3KN136BFIXED IND 2MH 20MA 55OHM SMD |
1,436 | 1.87 |
|
Datasheet |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 mH | ±10% | 20 mA | - | Unshielded | 55Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
|
MPX1D0520L6R8FIXED IND 6.8UH 2.9A 130.5 MOHM |
980 | 1.71 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 2.9 A | 4A | Shielded | 130.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
VLF403212MT-1R5N-CAFIXED IND 1.5UH 2.98A 50MOHM SMD |
950 | 1.69 |
|
Datasheet |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.98 A | 2.41A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.047" (1.20mm) |
|
MPX1D0530LR68FIXED IND 680NH 12.6A 8.2MOHM SM |
810 | 1.62 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 12.6 A | 12A | Shielded | 8.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
MPX1D0530LR15FIXED IND 150NH 22A 2.8 MOHM SMD |
568 | 1.71 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 22 A | 21A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
FP1108R1-R15-RFIXED IND 150NH 65A 0.29MOHM SMD |
248 | 1.80 |
|
Datasheet |
FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 65 A | 77A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.303" W (10.70mm x 7.70mm) | 0.295" (7.50mm) |
|
SPRH1210-6R8NSMD POWER INDUCTOR |
225 | 0.00 |
|
Datasheet |
SPRH1210 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 7.15 A | 13.37A | Shielded | 15.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, High Current, Low DCR | Surface Mount | 2-SMD | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
0201DS-2N2XJEWRF INDUCTOR, CERAMIC CORE, 5/10% |
51,533 | 1.53 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 2.2 nH | - | 700 mA | - | Unshielded | 70mOhm Max | 32 @ 900MHz | 16.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
|
|
0201DS-3N3XJEWRF INDUCTOR, CERAMIC CORE, 5/10% |
30,418 | 1.53 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 3.3 nH | - | 630 mA | - | Unshielded | 80mOhm Max | 42 @ 900MHz | 12.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
|
|
0201DS-12NXJEWRF INDUCTOR, CERAMIC CORE, 5/10% |
25,424 | 1.53 |
|
Datasheet |
0201DS | 0201 (0603 Metric) | Strip | Active | Wirewound | Ceramic | 12 nH | - | 300 mA | - | Unshielded | 360mOhm Max | 39 @ 900MHz | 5.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0201 | 0.023" L x 0.018" W (0.58mm x 0.46mm) | 0.035" (0.89mm) |
