Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER180M01INDUCT WW SNGL COIL MISC |
200 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CDMT40D20HF-R47NCFIXED IND 470NH 6.8A 8.3MOHM SMD |
1,157 | 2.67 |
|
Datasheet |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±30% | 6.8 A | 11.4A | Shielded | 8.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.083" (2.10mm) |
|
RLF7045T-330M1R2-DFIXED IND 33UH 1.2A 150 MOHM SMD |
994 | 2.67 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.2 A | 1.2A | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|
|
RLF7045T-101MR75-DFIXED IND 100UH 750MA 432MOHM SM |
968 | 2.67 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 850mA | Shielded | 432mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|
|
RLF7045T-6R8N2R3-DFIXED IND 6.8UH 2.3A 43.2MOHM SM |
808 | 2.67 |
|
Datasheet |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.3 A | 2.7A | Shielded | 43.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|

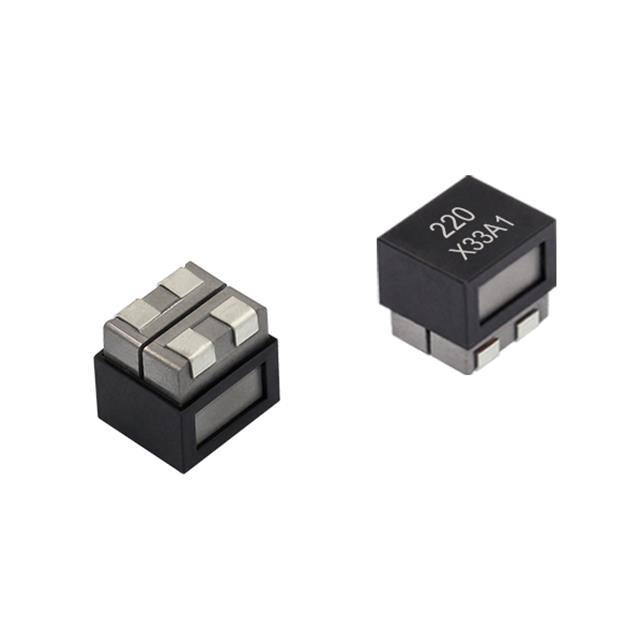

CSAD1010-330MSMD MOLDING POWER CHOKE |
595 | 2.73 |
|
Datasheet |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 33 µH | ±20% | 4 A | 5A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
|
CSAD1010-220MSMD MOLDING POWER CHOKE |
585 | 2.73 |
|
Datasheet |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 22 µH | ±20% | 4.9 A | 6A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
|
CSAD1010-150MSMD MOLDING POWER CHOKE |
524 | 2.73 |
|
Datasheet |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 15 µH | ±20% | 6 A | 8A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
|
VSEB0630H-3R3MCAUTOMOTIVE SMD MOLDING POWER CHK |
500 | 0.00 |
|
Datasheet |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 8.8 A | 8.8A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
VSEB0630H-1R5MCAUTOMOTIVE SMD MOLDING POWER CHK |
498 | 0.00 |
|
Datasheet |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 15.5 A | 13.2A | Shielded | 7.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
VSEB0630H-4R7MCAUTOMOTIVE SMD MOLDING POWER CHK |
497 | 0.00 |
|
Datasheet |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 7.9 A | 6.7A | Shielded | 23.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
VSEB0630H-1R2MCAUTOMOTIVE SMD MOLDING POWER CHK |
496 | 0.00 |
|
Datasheet |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.2 µH | ±20% | 16.5 A | 16.6A | Shielded | 6.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
CSBX1060-220MSMD HIGH CURRENT POWER INDUCTOR |
397 | 0.00 |
|
Datasheet |
CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 4.5 A | 8.8A | Shielded | 36.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
|
|
HM72E-12100HLFTR13FIXED IND 10UH 10A 17.2 MOHM SMD |
396 | 2.59 |
|
- |
HM72E-12 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 10 µH | ±20% | 10 A | 9A | Unshielded | 17.2mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
|
CSBL1060-220MSMD HIGH CURRENT POWER INDUCTOR |
385 | 0.00 |
|
Datasheet |
CSBL1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 4.5 A | 6.5A | Shielded | 36.3mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
|
|
CSBX1060-8R2MSMD HIGH CURRENT POWER INDUCTOR |
379 | 0.00 |
|
Datasheet |
CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 7.8 A | 15A | Shielded | 15.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
|
|
VSEB0630H-2R2MCAUTOMOTIVE SMD MOLDING POWER CHK |
375 | 0.00 |
|
Datasheet |
VSEB0630H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 12 A | 12.2A | Shielded | 9.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Molded Inductors, Automotive Grade Power Inductors | Surface Mount | 2-SMD | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.118" (3.00mm) |
|
|
CSAD1010-100MSMD MOLDING POWER CHOKE |
370 | 2.73 |
|
Datasheet |
CSAD1010 | 4-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 7.6 A | 9.5A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.433" L x 0.378" W (11.00mm x 9.60mm) | 0.429" (10.90mm) |
|
|
PE-92404NLFIXED IND 70UH 3A 52 MOHM TH |
3,662 | 0.00 |
|
Datasheet |
- | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 70 µH | ±20% | 3 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia (21.59mm) | 0.410" (10.41mm) |
|
|
CSBX1060-150MSMD HIGH CURRENT POWER INDUCTOR |
192 | 0.00 |
|
Datasheet |
CSBX1060 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 5.6 A | 10.5A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.441" L x 0.402" W (11.20mm x 10.20mm) | 0.224" (5.70mm) |
