Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4922-49LFIXED IND 10MH 71MA 74 OHM SMD |
1,600 | 2.96 |
|
Datasheet |
4922 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 71 mA | 71mA | Unshielded | 74Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|

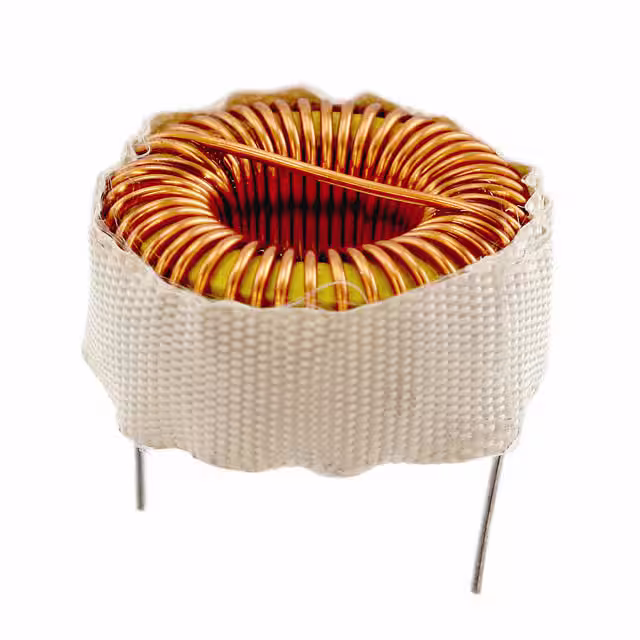

PE-92405NLFIXED IND 145UH 3A 87 MOHM TH |
3,204 | 0.00 |
|
Datasheet |
- | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | 145 µH | ±20% | 3 A | - | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|
HCM1A1305-120-RFIXED IND 12UH 5.5A 24 MOHM SMD |
1,134 | 3.41 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 12 µH | ±20% | 5.5 A | 9A | Shielded | 24mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-7R8-RFIXED IND 7.8UH 7.6A 19.4MOHM SM |
3,058 | 3.41 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 7.8 µH | ±20% | 7.6 A | 15A | Shielded | 19.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-1R8-RFIXED IND 1.8UH 16A 4.6MOHM SMD |
2,890 | 3.41 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.8 µH | ±20% | 16 A | 20A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-R56-RFIXED IND 560NH 28A 1.33MOHM SMD |
4,278 | 3.41 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 560 nH | ±20% | 28 A | 36A | Shielded | 1.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-R68-RFIXED IND 680NH 27A 1.33MOHM SMD |
3,717 | 3.41 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 27 A | 32A | Shielded | 1.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-R82-RFIXED IND 820NH 26A 1.61MOHM SMD |
4,754 | 3.41 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±20% | 26 A | 26A | Shielded | 1.61mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-6R0-RFIXED IND 6UH 8.1A 14.5 MOHM SMD |
3,618 | 3.41 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6 µH | ±20% | 8.1 A | 12.5A | Shielded | 14.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
SC10102KTFIXED IND 1MH 76MA 40 OHM TH |
2,828 | 2.46 |
|
Datasheet |
SC10, Sigma Inductors | Axial | Tape & Reel (TR) | Active | - | - | 1 mH | ±10% | 76 mA | - | Unshielded | 40Ohm Max | 40 @ 790kHz | 2.2MHz | - | -55°C ~ 100°C | 790 kHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
HM73-15R47LFTR13FIXED IND 470NH 17A 1.55 MOHM |
306 | 2.86 |
|
Datasheet |
HM73 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | - | - | 470 nH | ±20% | 17 A | 35A | Shielded | 1.55mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.461" L x 0.413" W (11.70mm x 10.50mm) | 0.157" (4.00mm) |
|
IHLD3232HBER150M5AFIXED IND 15UH 4.2A 66.34MOHM SM |
144 | 3.06 |
|
Datasheet |
IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4.2 A | 3.5A | Shielded | 66.34mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.365" (9.27mm) |
|
PA4320.153NLTFIXED IND 15UH 7A 22 MOHM SMD |
1,048 | 3.05 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 7 A | 8.3A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
HCM1A1307-8R2-RFIXED IND 8.2UH 8.2A 13MOHM SMD |
2,287 | 3.44 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 8.2 A | 13A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-1R2-RFIXED IND 1.2UH 21.8A 2.12 MOHM |
1,950 | 3.44 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.2 µH | ±20% | 21.8 A | 28A | Shielded | 2.12mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-7R8-RFIXED IND 7.8UH 8.8A 11.5MOHM SM |
1,890 | 3.44 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 7.8 µH | ±20% | 8.8 A | 16A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
XAL4040-153MECFIXED IND 15UH 2.8A 120MOHM SM |
54,442 | 0.00 |
|
Datasheet |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 2.8 A | 2.9A | Shielded | 120mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XAL4040-103MECFIXED IND 10UH 3.1A 92.4MOHM SM |
30,905 | 0.00 |
|
Datasheet |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 3.1 A | 3A | Shielded | 92.4mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XAL4040-822MECFIXED IND 8.2UH 3.4A 66.9MOHM SM |
25,491 | 0.00 |
|
Datasheet |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 3.4 A | 4A | Shielded | 66.9mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
MSS1048-223MLCFIXED IND 22UH 3.58A 50MOHM SM |
17,563 | 0.00 |
|
Datasheet |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 22 µH | ±20% | 3.58 A | 3.28A | Shielded | 50mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
