Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCM120T-R82N-DFIXED IND 820NH 41.2A 1.06OHM SM |
352 | 5.07 |
|
Datasheet |
PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 820 nH | ±30% | 41.2 A | 49.3A | Shielded | 1.06mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|
CTH9F-501M500UH AXIAL PWR LINE INDUCTOR |
337 | 2.19 |
|
Datasheet |
CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±20% | - | 2A | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
|
PCM120T-2R7M-DFIXED IND 2.7UH 24.4A 3.12OHM SM |
215 | 5.07 |
|
Datasheet |
PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 2.7 µH | ±20% | 24.4 A | 26.3A | Shielded | 3.12mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|
CSBX1275-4R7MSMD HIGH CURRENT POWER INDUCTOR |
1,878 | 3.37 |
|
Datasheet |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 19 A | 30A | Shielded | 4.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-3R3MSMD HIGH CURRENT POWER INDUCTOR |
1,138 | 3.37 |
|
Datasheet |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 22 A | 37A | Shielded | 3.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
CSBL1275-220MSMD HIGH CURRENT POWER INDUCTOR |
766 | 3.53 |
|
Datasheet |
CSBL1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 9.5A | Shielded | 17.8mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-6R8MSMD HIGH CURRENT POWER INDUCTOR |
600 | 3.37 |
|
Datasheet |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 14 A | 25.5A | Shielded | 6.95mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-2R2MSMD HIGH CURRENT POWER INDUCTOR |
501 | 3.37 |
|
Datasheet |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 24 A | 45A | Shielded | 2.45mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
CSBL1265-220MSMD HIGH CURRENT POWER INDUCTOR |
330 | 3.53 |
|
Datasheet |
CSBL1265 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 8A | Shielded | 21.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.256" (6.50mm) |
|

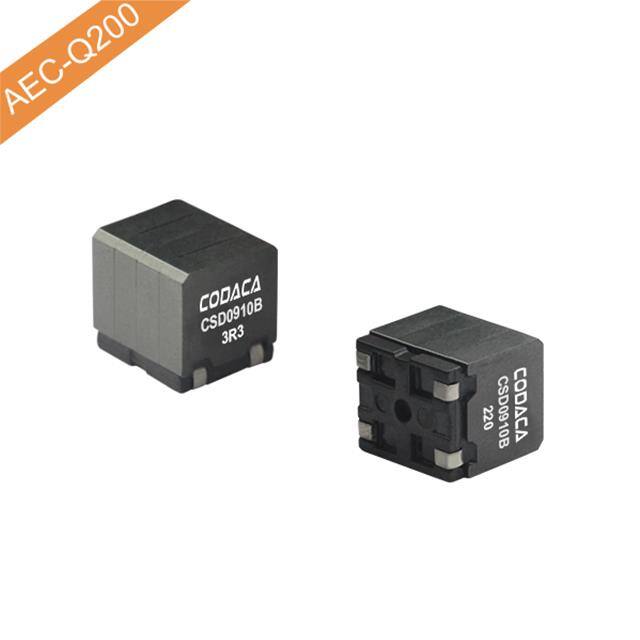

CSD0910B-6R8MCLASS D INDUCTOR FOR DIGITAL AMP |
300 | 4.10 |
|
Datasheet |
CSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 5 A | 8.7A | Shielded | 18.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
CSD0910B-150MCLASS D INDUCTOR FOR DIGITAL AMP |
300 | 4.10 |
|
Datasheet |
CSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 4.6A | Shielded | 39.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
CSBX1275-270MFIX IND 27UH 7A 26.5MOHM SMD |
300 | 0.00 |
|
Datasheet |
CSBX1275 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 27 µH | ±20% | 7 A | 11.4A | Shielded | 26.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBL1275-5R6MSMD HIGH CURRENT POWER INDUCTOR |
298 | 3.53 |
|
Datasheet |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 17 A | 22A | Shielded | 5.29mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-5R6MSMD HIGH CURRENT POWER INDUCTOR |
289 | 3.37 |
|
Datasheet |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 5.6 µH | ±20% | 17 A | 27A | Shielded | 5.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBL1275-100MSMD HIGH CURRENT POWER INDUCTOR |
289 | 3.53 |
|
Datasheet |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 11 A | 16A | Shielded | 10.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSD0910B-100MCLASS D INDUCTOR FOR DIGITAL AMP |
283 | 4.10 |
|
Datasheet |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 5 A | 5.6A | Shielded | 18.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
|
CSBL1275-3R3MSMD HIGH CURRENT POWER INDUCTOR |
282 | 3.53 |
|
Datasheet |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 22 A | 30A | Shielded | 3.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBX1275-330MSMD HIGH CURRENT POWER INDUCTOR |
279 | 0.00 |
|
Datasheet |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 6 A | 10.6A | Shielded | 32.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
|
|
CSBX1275-1R5MSMD HIGH CURRENT POWER INDUCTOR |
260 | 3.37 |
|
Datasheet |
CSBX1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1.5 µH | ±20% | 28 A | 54A | Shielded | 1.61mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.299" (7.60mm) |
|
|
CSBL1275-330MSMD HIGH CURRENT POWER INDUCTOR |
253 | 0.00 |
|
Datasheet |
CSBL1275 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 6 A | 8A | Shielded | 32.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.287" (7.30mm) |
