Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBL2212-150MSMD HIGH CURRENT POWER INDUCTOR |
108 | 8.08 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 18 A | 26A | Shielded | 5.45mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBL2212-3R3MSMD HIGH CURRENT POWER INDUCTOR |
103 | 8.08 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 32 A | 50A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
CSBX2212-220MSMD HIGH CURRENT POWER INDUCTOR |
1,350 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 15 A | 27A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-100MSMD HIGH CURRENT POWER INDUCTOR |
1,347 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 21 A | 40A | Shielded | 3.88mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-150MSMD HIGH CURRENT POWER INDUCTOR |
860 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 18 A | 32A | Shielded | 5.45mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-101MSMD HIGH CURRENT POWER INDUCTOR |
810 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 100 µH | ±20% | 6.1 A | 12.5A | Shielded | 40.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-4R7MSMD HIGH CURRENT POWER INDUCTOR |
550 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 30 A | 58A | Shielded | 1.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-470MSMD HIGH CURRENT POWER INDUCTOR |
534 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 47 µH | ±20% | 9 A | 18.5A | Shielded | 21.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-3R3MSMD HIGH CURRENT POWER INDUCTOR |
488 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 32 A | 70A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBX2212-6R8MSMD HIGH CURRENT POWER INDUCTOR |
325 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 26 A | 48A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
CSBX2212-390MFLAT WIRE HIGH CURRENT INDUCTOR |
120 | 0.00 |
|
Datasheet |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 39 µH | ±20% | 9.5 A | 20.5A | Shielded | 19.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-8R2MFLAT WIRE HIGH CURRENT INDUCTOR |
120 | 0.00 |
|
Datasheet |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 24 A | 45A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-560MFLAT WIRE HIGH CURRENT INDUCTOR |
120 | 0.00 |
|
Datasheet |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 56 µH | ±20% | 8.2 A | 17A | Shielded | 23.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-120MFLAT WIRE HIGH CURRENT INDUCTOR |
120 | 0.00 |
|
Datasheet |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 12 µH | ±20% | 19.5 A | 37A | Shielded | 4.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-820MFLAT WIRE HIGH CURRENT INDUCTOR |
120 | 0.00 |
|
Datasheet |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 82 µH | ±20% | 7 A | 13.8A | Shielded | 33.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBX2212-680MFLAT WIRE HIGH CURRENT INDUCTOR |
120 | 0.00 |
|
Datasheet |
CSBX2212 | 2-SMD | Cut Tape (CT) | Active | Wirewound | Metal Composite | 68 µH | ±20% | 7.5 A | 15A | Shielded | 30.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | High Current, Low Loss | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.472" (12.00mm) |
|
|
CSBL2212-330MSMD HIGH CURRENT POWER INDUCTOR |
105 | 8.08 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 11.5 A | 18A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|

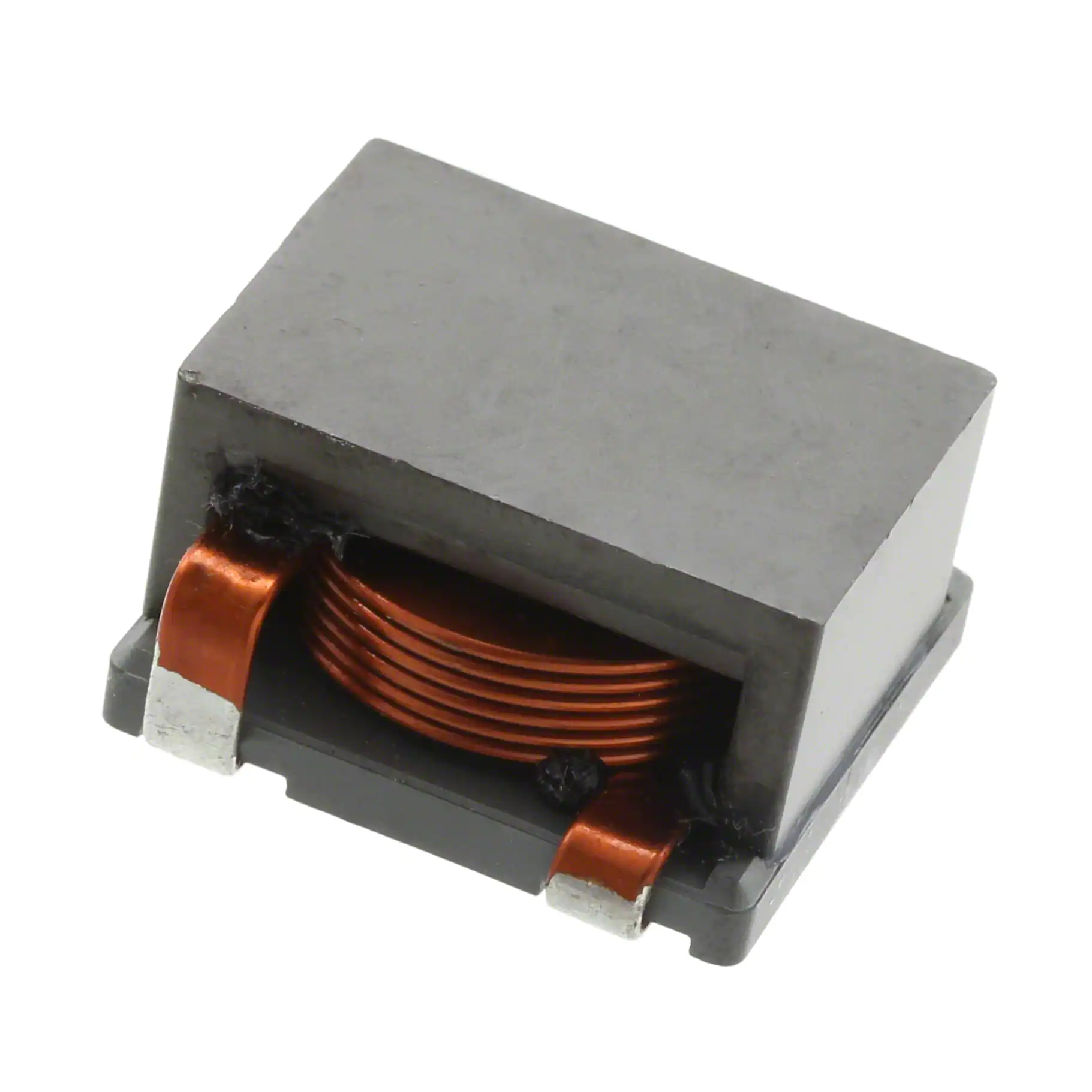

HA65A-25153R3LFFIXED IND 3.3UH 2.6 MOHM SMD |
243 | 6.69 |
|
Datasheet |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 3.3 µH | ±10% | - | 87A | Unshielded | 2.6mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
|
HA65A-25154R7LFFIXED IND 4.7UH 2.6 MOHM SMD |
237 | 6.69 |
|
Datasheet |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 4.7 µH | ±10% | - | 61A | Unshielded | 2.6mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
|
HA65A-251533RLFFIXED IND 33UH 2.6 MOHM SMD |
190 | 6.69 |
|
Datasheet |
HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 33 µH | ±10% | - | 10.3A | Unshielded | 2.6mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
