Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL1313-222MEDFIXED IND 2.2UH 45.1A 1.6MOHM SM |
654 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 45.1 A | 46A | Shielded | 1.6mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-822MEDFIXED IND 8.2UH 28.7A 5.2MOHM SM |
638 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 8.2 µH | ±20% | 28.7 A | 25A | Shielded | 5.2mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-223MEDFIXED IND 22UH 17.2A 13.3MOHM SM |
626 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 17.2 A | 15.4A | Shielded | 13.3mOhm Max | - | 7.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-682MEDFIXED IND 6.8UH 31A 4.3MOHM SM |
534 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 31 A | 26.5A | Shielded | 4.3mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-333MEDFIXED IND 33UH 12.6A 20.7MOHM SM |
501 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 12.6 A | 11.6A | Shielded | 20.7mOhm Max | - | 5.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-332MEDFIXED IND 3.3UH 39.7A 2.3MOHM SM |
478 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 39.7 A | 40A | Shielded | 2.3mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-103MEDFIXED IND 10UH 26A 6.3MOHM SM |
429 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 26 A | 23A | Shielded | 6.3mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-472MEDFIXED IND 4.7UH 36.7A 2.8MOHM SM |
418 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 36.7 A | 35A | Shielded | 2.8mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-473MEDFIXED IND 47UH 9.1A 30MOHM SM |
347 | 0.00 |
|
Datasheet |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 47 µH | ±20% | 9.1 A | 9.7A | Shielded | 30mOhm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
MHW1807SG4R0KFIXED IND 4UH 18A 3 MOHM SMD |
250 | 8.56 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 4 µH | ±10% | 18 A | 18A | - | 3mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | 0.335" (8.50mm) |
|
MHW2009SG7R0KAFIXED IND 7UH 7A 7 MOHM SMD |
500 | 8.74 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 7 µH | ±10% | 7 A | 18A | - | 7mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.858" L x 0.835" W (21.80mm x 21.20mm) | 0.323" (8.20mm) |
|
MHW1807SG2R0KAFIXED IND 2UH 25A 3 MOHM SMD |
250 | 9.00 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 2 µH | ±10% | 25 A | 32A | - | 3mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.800" L x 0.748" W (20.30mm x 19.00mm) | 0.335" (8.50mm) |
|
ER1025-06KSFIXED IND 270NH 960MA 160MOHM TH |
1,250 | 8.88 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
CTHR5F-100K10UH FILTER INDUCTOR |
759 | 6.10 |
|
Datasheet |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 10 µH | ±10% | 12 A | 19A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 1.125" (28.58mm) |
|

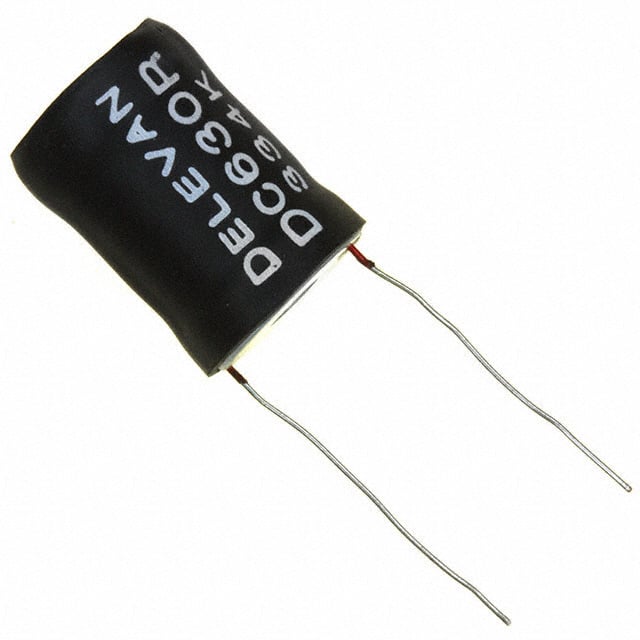

DC630R-334KFIXED IND 330UH 1.72A 315MOHM TH |
362 | 9.47 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.72 A | 3.8A | Unshielded | 315mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
CPD3119-100MTHT CLASS D IND FOR DIGITAL AMP |
154 | 8.37 |
|
Datasheet |
CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 17 A | 61A | Shielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
|
CPD3119-220MCLASS D INDUCTOR FOR DIGITAL AMP |
152 | 8.37 |
|
Datasheet |
CPD3119 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 15.5 A | 33A | Shielded | 6.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) |
|
CPG2717-220MTHT HIGH CURRENT POWER INDUCTOR |
184 | 11.10 |
|
Datasheet |
CPG2717 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 33.7 A | 12A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Flat Wire, High Current | Through Hole | Vertical, 4 PC Pin | - | - |
|
|
4501R-128MFIXED IND 100UH 650MA 400MOHM SM |
562 | 9.13 |
|
Datasheet |
4501R | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 µH | ±20% | 650 mA | 650mA | Shielded | 400mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.210" (5.33mm) |
|
SWS-3.00-110FIXED IND 110UH 3A 90 MOHM SMD |
225 | 7.09 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
