Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.00mm.jpg)
|
1285AS-H-1R0M=P2FIXED IND 1UH 2.2A 96 MOHM SMD |
21,274 | 0.38 |
|
Datasheet |
DFE201610C | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 2.2 A | - | Shielded | 96mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

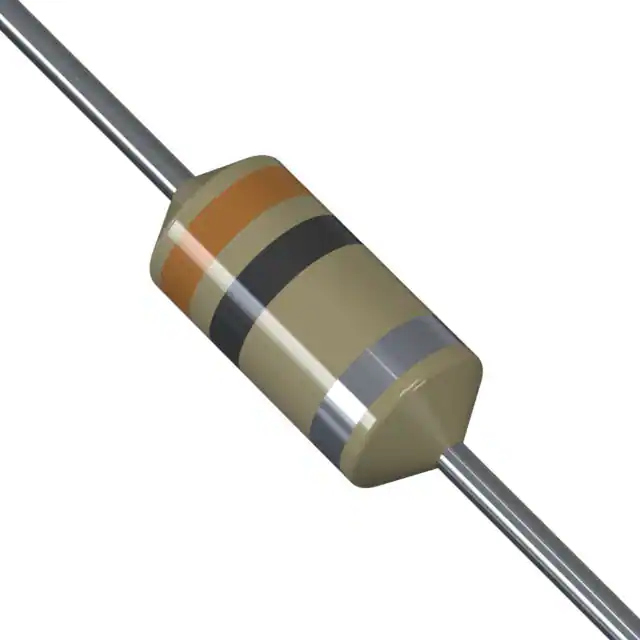

B78108E1101M009FIXED IND 100NH 7.3A 15 MOHM TH |
21,149 | 0.43 |
|
Datasheet |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 7.3 A | 17A | Unshielded | 15mOhm Max | 50 @ 7.96MHz | 700MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

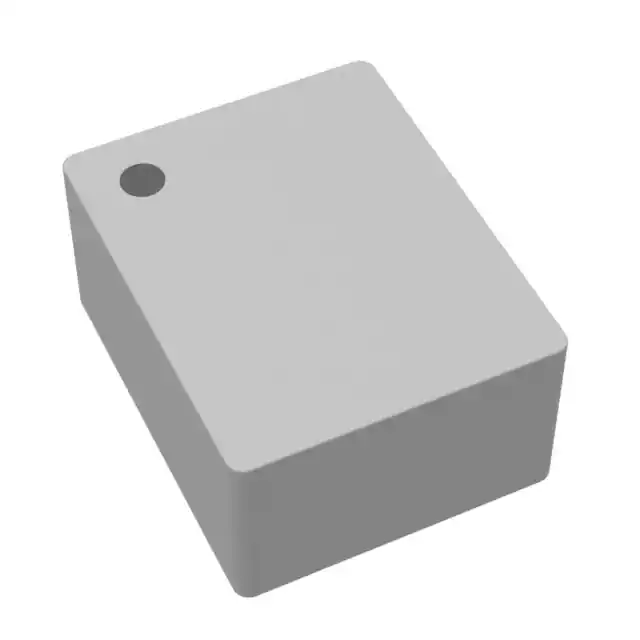

HTEX25201B-100MSRFIXED IND 10UH 1.2A 399MOHM SMD |
20,810 | 0.41 |
|
Datasheet |
HTEX25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 1.2 A | 1.4A | Shielded | 399mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
NR4018T150MFIXED IND 15UH 650MA 300MOHM SMD |
17,896 | 0.41 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 650 mA | 940mA | Shielded | 300mOhm Max | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
CM453232-220KLFIXED IND 22UH 180MA 3.2 OHM SMD |
17,328 | 0.41 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NR4018T221MFIXED IND 220UH 170MA 4.8OHM SMD |
17,061 | 0.41 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 170 mA | 270mA | Shielded | 4.8Ohm Max | - | 4MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LQM21PN1R5MEHDFIXED IND 1.5UH 1.5A 125MOHM SMD |
16,486 | 0.25 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.5 A | 550mA | Shielded | 125mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
SRN2512-2R2MFIXED IND 2.2UH 2.3A 102MOHM SMD |
10,371 | 0.40 |
|
Datasheet |
SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.3 A | 2.7A | Shielded | 102mOhm Max | 11 @ 1MHz | 80MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
HTEP20120H-1R0MSR20120H 1.0H 20% |
10,256 | 0.42 |
|
Datasheet |
HTEP20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 3.1 A | 3.8A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
TYA252012100M-10FIXED IND 10UH 850MA 480MOHM SMD |
9,868 | 0.37 |
|
Datasheet |
TYA252012 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 850 mA | 1.1A | Shielded | 480mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.053" (1.35mm) |
-Height-1.20mm.jpg)
|
1239AS-H-1R0M=P2FIXED IND 1UH 3A 59 MOHM SMD |
9,513 | 0.37 |
|
Datasheet |
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3 A | 3A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLS252012ET-3R3MFIXED IND 3.3UH 980MA 272MOHM SM |
9,008 | 0.40 |
|
Datasheet |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 980 mA | 1.25A | Shielded | 272mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
1239AS-H-1R5M=P2FIXED IND 1.5UH 2.6A 72 MOHM SMD |
8,984 | 0.37 |
|
Datasheet |
DFE252012C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.4 A | 2.6A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLS5045EX-100MFIXED IND 10UH 2.5A 79.3MOHM SMD |
8,055 | 0.44 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 3.1A | Shielded | 79.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
ASPI-4030S-1R5N-TFIXED IND 1.5UH 3.34A 20MOHM SMD |
7,257 | 0.46 |
|
Datasheet |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.5 µH | ±30% | 3.34 A | 4.84A | Shielded | 20mOhm | - | 62MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|

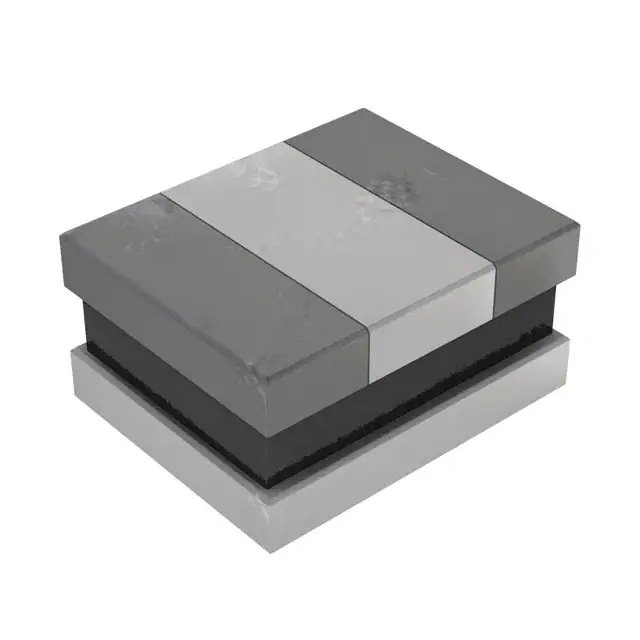

SRN2010-R47MFIXED IND 470NH 3.3A 42 MOHM SMD |
6,449 | 0.41 |
|
Datasheet |
SRN2010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.3 A | 3.8A | Shielded | 42mOhm Max | 9 @ 1MHz | 230MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.040" (1.02mm) |
-Height-1.00mm.jpg)
|
1269AS-H-100N=P2FIXED IND 10UH 1A 689 MOHM SMD |
6,321 | 0.37 |
|
Datasheet |
DFE252010C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±30% | 1 A | - | Shielded | 689mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM21PN1R0MEHDFIXED IND 1UH 1.6A 107 MOHM SMD |
6,027 | 0.25 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.6 A | 1A | Shielded | 107mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

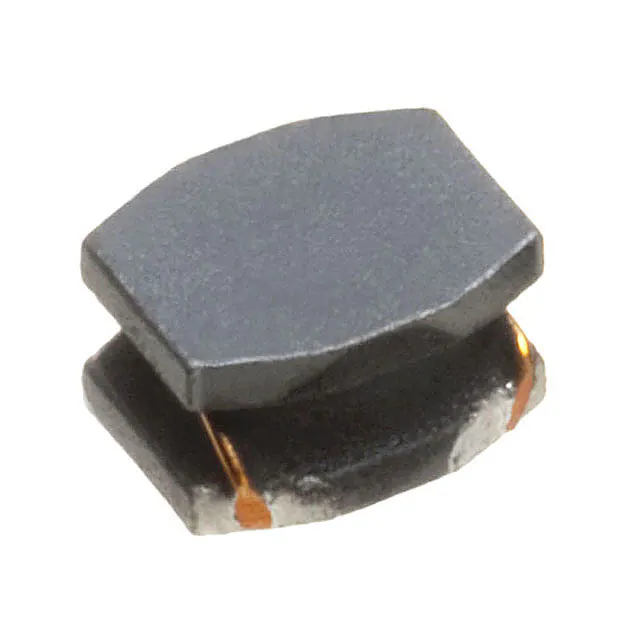

VLS252015ET-2R2MFIXED IND 2.2UH 1.25A 160MOHM SM |
6,000 | 0.40 |
|
Datasheet |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.25 A | 1.5A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM21PNR47MEHDFIXED IND 470NH 1.9A 75MOHM SMD |
5,660 | 0.25 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.9 A | 1.8A | Shielded | 75mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
