Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISC1210ER3R3KFIXED IND 3.3UH 270MA 1.1OHM SMD |
948 | 1.00 |
|
Datasheet |
ISC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±10% | 270 mA | - | Shielded | 1.1Ohm Max | 30 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
SRR4528A-221MFIXED IND 220UH 370MA 1.48OHM SM |
935 | 1.03 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 370 mA | 230mA | Shielded | 1.48Ohm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
744914143FIXED IND 43NH 4A 7.9 MOHM SMD |
892 | 0.92 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 43 nH | ±5% | 4 A | - | Unshielded | 7.9mOhm Max | 106 @ 150MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
LSXBH10050HL2R9NFIXED IND 2.9UH 7.3A 12.09 MOHM |
868 | 0.92 |
|
Datasheet |
LSXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.9 µH | ±30% | 7.3 A | 8.2A | Shielded | 9.3mOhm | - | 29MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
SRR4818A-3R3YFIXED IND 3.3UH 3.1A 55 MOHM SMD |
800 | 1.02 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.1 A | 2.1A | Shielded | 55mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
744911112FIXED IND 12.55NH 1.6A 14MOHM SM |
767 | 0.92 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.55 nH | ±5% | 1.6 A | - | Unshielded | 14mOhm Max | 100 @ 800MHz | 4.6GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|
SWPA6045S3R3NTFIXED IND 3.3UH 3.7A 27MOHM SMD |
740 | 0.88 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.7 A | 6.2A | Shielded | 27mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRR4818A-390MFIXED IND 39UH 800MA 540MOHM SMD |
736 | 1.02 |
|
Datasheet |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 800 mA | 530mA | Shielded | 540mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
SRR4828A-181MFIXED IND 180UH 550MA 1.08OHM SM |
699 | 1.02 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 550 mA | 260mA | Shielded | 1.08Ohm Max | - | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4528A-270MFIXED IND 27UH 1.06A 197MOHM SMD |
663 | 1.03 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±20% | 1.06 A | 680mA | Shielded | 197mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
SRR3818A-3R3YFIXED IND 3.3UH 2.1A 85 MOHM SMD |
633 | 1.02 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.1 A | 1.15A | Shielded | 85mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
SRR3818A-1R0YFIXED IND 1UH 3.6A 37 MOHM SMD |
608 | 1.02 |
|
Datasheet |
SRR3818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.6 A | 2.1A | Shielded | 37mOhm Max | - | 165MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
SRR4828A-220MFIXED IND 22UH 1.55A 185MOHM SMD |
583 | 1.02 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.55 A | 680mA | Shielded | 185mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4828A-820MFIXED IND 82UH 850MA 480MOHM SMD |
532 | 1.02 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 850 mA | 350mA | Shielded | 480mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
SRR4828A-180MFIXED IND 18UH 1.7A 160 MOHM SMD |
523 | 1.02 |
|
Datasheet |
SRR4828A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.7 A | 800mA | Shielded | 160mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

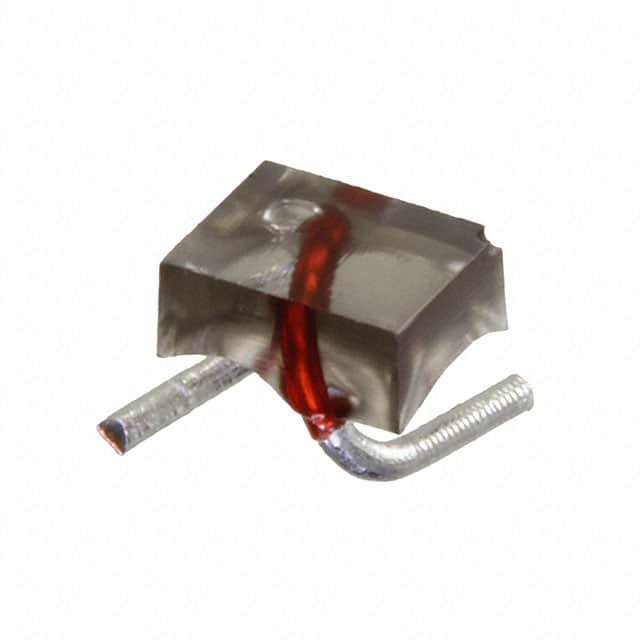

744913025FIXED IND 2.5NH 4A 1.1 MOHM SMD |
500 | 0.92 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 2.5 nH | ±5% | 4 A | - | Unshielded | 1.1mOhm Max | 140 @ 150MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
744910038FIXED IND 3.85NH 1.6A 6 MOHM SMD |
458 | 0.92 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 3.85 nH | ±5% | 1.6 A | - | Unshielded | 6mOhm Max | 100 @ 800MHz | 7.5GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|
LSXBH10050HL221MFIXED IND 220UH 800MA 585MOHM SM |
426 | 0.49 |
|
Datasheet |
LSXB | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 800 mA | 1A | Shielded | 450mOhm | - | 3MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | 0.197" (5.00mm) |
|
|
SRR4528A-680MFIXED IND 68UH 700MA 452MOHM SMD |
400 | 1.03 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 700 mA | 410mA | Shielded | 452mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|

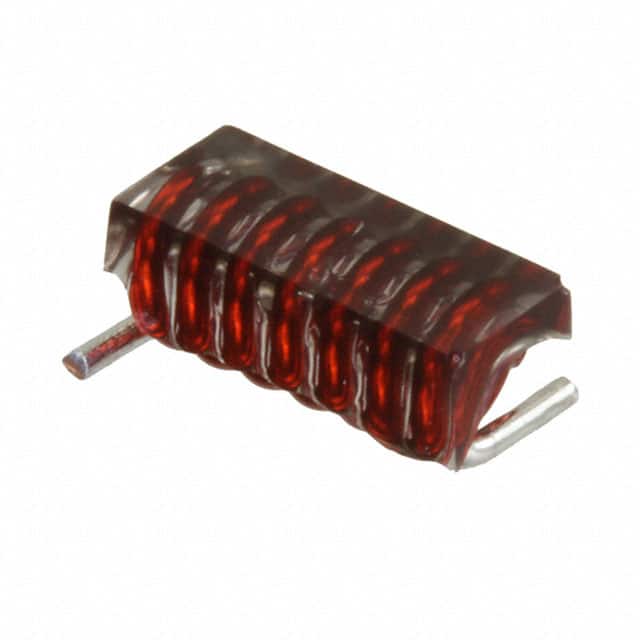

744914122FIXED IND 22NH 4A 5.2 MOHM SMD |
368 | 0.92 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 4 A | - | Unshielded | 5.2mOhm Max | 102 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
