Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHD1EB183LFIXED IND 18MH 80MA 40 OHM TH |
3,873 | 9.40 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±15% | 80 mA | 60mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
1537GFIXED IND 30UH 8A 24 MOHM TH |
2,391 | 6.93 |
|
Datasheet |
1537 | Axial | Bulk | Active | Molded | Ferrite | 30 µH | ±5% | 8 A | - | Unshielded | 24mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.580" Dia x 1.250" L (14.73mm x 31.75mm) | - |
|
HC8-220-RFIXED IND 22UH 3.4A 99.5MOHM SMD |
2,569 | 4.95 |
|
Datasheet |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 3.4 A | 6.2A | Unshielded | 99.5mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
SH150S-3.00-17FIXED IND 17UH 3A 50 MOHM SMD |
1,103 | 5.94 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|

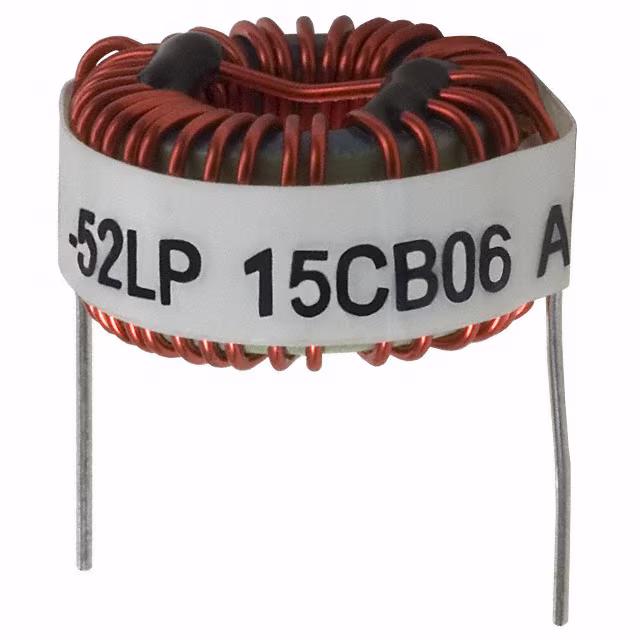

CTX50-1-52LP-RFIXED IND 50UH 2.6A 71.5 MOHM TH |
2,543 | 5.24 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 2.6 A | 2.7A | Unshielded | 71.5mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.638" Dia (16.20mm) | 0.354" (9.00mm) |
|
7443782012068FIXED IND 6.8UH 20.6A 5 MOHM TH |
4,901 | 5.88 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±20% | 20.6 A | 30.6A | Shielded | 5mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
7443782012047FIXED IND 4.7UH 28.7A 2.4MOHM TH |
3,299 | 5.88 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±20% | 28.7 A | 29.8A | Shielded | 2.4mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
7443782012150FIXED IND 15UH 20.6A 5 MOHM TH |
1,344 | 5.88 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±20% | 20.6 A | 12.9A | Shielded | 5mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
4590R-685KFIXED IND 6.8MH 340MA 5.75OHM TH |
100 | 5.66 |
|
Datasheet |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 340 mA | 220mA | Unshielded | 5.75Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
.jpg)
|
IHLP7575GZER100M5AFIXED IND 10UH 18.7A 9.96 MOHM H |
4,759 | 6.34 |
|
Datasheet |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 18.7 A | 31.1A | Shielded | 9.96mOhm Max | - | 8.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
.jpg)
|
AIRD-03-182KFIXED IND 1.8MH 1.6A 705 MOHM TH |
4,761 | 6.64 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 1.6 A | 2.8A | Unshielded | 705mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-152KFIXED IND 1.5MH 2A 518 MOHM TH |
3,608 | 6.64 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 2 A | 3.4A | Unshielded | 518mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
S1008R-122KFIXED IND 1.2UH 625MA 290MOHM SM |
4,660 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±10% | 625 mA | - | Shielded | 290mOhm Max | 30 @ 7.9MHz | 95MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
2300HT-100-V-RCFIXED IND 10UH 23.3A 6 MOHM TH |
100 | 6.53 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 23.3 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
2300HT-470-H-RCFIXED IND 47UH 10A 28 MOHM TH |
4,320 | 6.53 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 47 µH | ±15% | 10 A | - | Shielded | 28mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-100-H-RCFIXED IND 10UH 23.3A 6 MOHM TH |
4,070 | 6.53 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 23.3 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-820-V-RCFIXED IND 82UH 8.8A 37 MOHM TH |
2,509 | 6.53 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 82 µH | ±15% | 8.8 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-331-H-RCFIXED IND 330UH 4.9A 100 MOHM TH |
1,620 | 6.53 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 4.9 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-221-V-RCFIXED IND 220UH 6.8A 61 MOHM TH |
2,782 | 6.53 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 220 µH | ±15% | 6.8 A | - | Shielded | 61mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
FIT106-4FIXED IND 116UH 6.8A 48.5MOHM TH |
1,958 | 6.76 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 116 µH | - | 6.8 A | - | Unshielded | 48.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
