Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
1539M05 FIXED IND 100UH 4.5A 72 MOHM TH Hammond Manufacturing	4,545	13.31	RFQ	Datasheet	1539	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	100 µH	±10%	4.5 A	-	Unshielded	72mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.830" Dia (21.08mm)	0.910" (23.11mm)
C-8X FIXED IND 7H 75MA 240 OHM CHASS Triad Magnetics	2,238	14.49	RFQ	Datasheet	C	Nonstandard	Bulk	Active	Wirewound	-	7 H	-20%, +50%	75 mA	-	Unshielded	240Ohm	-	-	-	-40°C ~ 85°C	120 Hz	-	Chassis Mount	-	3.312" L x 1.750" W (84.12mm x 44.45mm)	1.940" (49.28mm)
1539M07 FIXED IND 500UH 2A 378 MOHM TH Hammond Manufacturing	2,648	14.18	RFQ	Datasheet	1539	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	500 µH	±10%	2 A	-	Unshielded	378mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.830" Dia (21.08mm)	0.910" (23.11mm)
7443763540068 FIXED IND 6.8UH 56.7A 1.2MOHM TH Würth Elektronik	4,363	22.56	RFQ	Datasheet	WE-HCFT	Nonstandard	Tray	Active	Drum Core, Wirewound	Manganese Zinc Ferrite (MnZn)	6.8 µH	±20%	56.7 A	76.5A	Shielded	1.2mOhm Max	-	16MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Through Hole	-	1.614" L x 1.417" W (41.00mm x 36.00mm)	1.378" (35.00mm)
1539M06 FIXED IND 250UH 2.9A 173 MOHM TH Hammond Manufacturing	1,056	15.14	RFQ	Datasheet	1539	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	250 µH	±10%	2.9 A	-	Unshielded	173mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.830" Dia (21.08mm)	0.910" (23.11mm)
1539M10 FIXED IND 5UH 20A 5 MOHM TH Hammond Manufacturing	3,732	16.09	RFQ	Datasheet	1539	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	5 µH	±10%	20 A	-	Unshielded	5mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	1.220" Dia (30.99mm)	1.110" (28.19mm)
156M FIXED IND 3H 100MA 86 OHM CHASS Hammond Manufacturing	4,888	18.82	RFQ	Datasheet	156	Nonstandard	Bulk	Active	-	-	3 H	±15%	100 mA	-	Unshielded	86Ohm	-	-	-	-	-	-	Chassis Mount	-	2.810" L x 1.500" W (71.37mm x 38.10mm)	1.690" (42.93mm)
155H FIXED IND 5H 50MA 270 OHM CHASS Hammond Manufacturing	3,366	19.03	RFQ	Datasheet	155	Nonstandard	Bulk	Active	-	-	5 H	±15%	50 mA	-	Unshielded	270Ohm	-	-	-	-	-	-	Chassis Mount	-	2.380" L x 1.380" W (60.45mm x 35.05mm)	1.380" (35.05mm)
CTX250-5-52-R FIXED IND 250UH 9.2A 40 MOHM TH Eaton - Electronics Division	1,854	16.51	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	250 µH	±20%	9.2 A	8.1A	Unshielded	40mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	2.114" Dia x 0.957" W (53.70mm x 24.30mm)	-
155J FIXED IND 15H 30MA 1.026K OHM Hammond Manufacturing	2,968	19.69	RFQ	Datasheet	155	Nonstandard	Bulk	Active	-	-	15 H	±15%	30 mA	-	Unshielded	1.026kOhm	-	-	-	-	-	-	Chassis Mount	-	2.380" L x 1.380" W (60.45mm x 35.05mm)	1.380" (35.05mm)
506WLSN6R00KT236T FIXED IND 6UH 236MA 2.8 OHM SMD KYOCERA AVX	2,152	22.50	RFQ	Datasheet	506WLS	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Iron Powder	6 µH	±10%	236 mA	-	Unshielded	2.8Ohm	-	-	-	-55°C ~ 125°C	1 MHz	-	Surface Mount	-	0.245" L x 0.133" W (6.22mm x 3.38mm)	0.117" (2.97mm)
85071-A0 FIXED IND 3.7UH 140 MOHM SMD Newava Technology Inc.	112	33.42	RFQ	Datasheet	-	Nonstandard	Tape & Reel (TR)	Active	Thick Film	Ceramic, Ferrite	3.7 µH	±25%	-	275mA	Shielded	140mOhm	-	-	-	-45°C ~ 250°C	-	-	Surface Mount	-	0.200" L x 0.200" W (5.08mm x 5.08mm)	-
IHXL1500VZEBR68M5A FIXED IND 680NH 235A 0.13MOHM TH Vishay Dale	3,065	34.37	RFQ	Datasheet	IHXL-1500VZ-5A	Nonstandard	Bulk	Active	-	-	680 nH	±20%	235 A	-	Shielded	0.13mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	500 kHz	-	Through Hole	-	1.500" L x 1.500" W (38.10mm x 38.10mm)	0.872" (22.15mm)
159T FIXED IND 2.5H 300MA 43 OHM CHAS Hammond Manufacturing	3,713	34.61	RFQ	Datasheet	159	Nonstandard	Bulk	Active	-	-	2.5 H	±15%	300 mA	-	Unshielded	43Ohm	-	-	-	-	-	-	Chassis Mount	-	4.030" L x 2.250" W (102.36mm x 57.15mm)	2.630" (66.80mm)
193B FIXED IND 12H 100MA 155 OHM CHAS Hammond Manufacturing	3,401	49.27	RFQ	Datasheet	193	Nonstandard, 2 Lead	Bulk	Active	Wirewound	-	12 H	±15%	100 mA	-	Unshielded	155Ohm	-	-	-	-40°C ~ 65°C	-	-	Chassis Mount	-	2.750" L x 2.500" W (69.85mm x 63.50mm)	3.125" (79.38mm)
193H FIXED IND 5H 200MA 65 OHM CHASS Hammond Manufacturing	1,514	49.27	RFQ	Datasheet	193	Nonstandard, 2 Lead	Bulk	Active	Wirewound	-	5 H	±15%	200 mA	-	Unshielded	65Ohm	-	-	-	-40°C ~ 65°C	-	-	Chassis Mount	-	2.750" L x 2.500" W (69.85mm x 63.50mm)	3.125" (79.38mm)

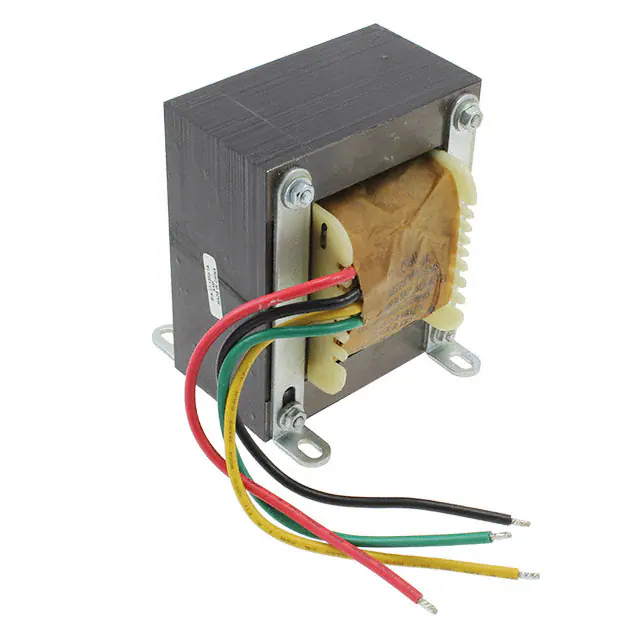

C-49U FIXED IND 32MH 5A 28 MOHM CHASS Triad Magnetics	1,909	56.23	RFQ	Datasheet	C	Nonstandard	Bulk	Active	Wirewound	-	32 mH	-20%, +50%	5 A	-	Unshielded	28mOhm	-	-	-	-40°C ~ 85°C	120 Hz	-	Chassis Mount	-	3.500" L x 3.625" W (88.90mm x 92.07mm)	4.250" (107.95mm)
193C FIXED IND 20H 100MA 181 OHM CHAS Hammond Manufacturing	3,394	59.12	RFQ	Datasheet	193	Nonstandard, 2 Lead	Bulk	Active	Wirewound	-	20 H	±15%	100 mA	-	Unshielded	181Ohm	-	-	-	-40°C ~ 65°C	-	-	Chassis Mount	-	2.940" L x 2.500" W (74.68mm x 63.50mm)	3.125" (79.38mm)
197C10 FIXED IND 1MH 10A 0.075OHM SMD Hammond Manufacturing	1,643	60.89	RFQ	Datasheet	197	Nonstandard	Box	Active	Powdered Iron Core	Carbonyl Powder	1 mH	±15%	10 A	-	Unshielded	75mOhm	-	514.2kHz	-	-40°C ~ 105°C	-	-	Surface Mount	-	3.400" L x 2.500" W (86.36mm x 63.50mm)	3.376" (85.75mm)
CH-6 FIXED IND 40MH 6A 400 MOHM CHASS Signal Transformer	2,273	67.29	RFQ	Datasheet	-	Nonstandard	Box	Active	-	-	40 mH	-	6 A	-	Unshielded	400mOhm	-	-	-	-	-	-	Chassis Mount	-	3.752" L x 3.626" W (95.30mm x 92.10mm)	3.252" (82.60mm)

Total 147749 Record«Prev 1... 1826 1827 1828 182918301831 1832 1833...7388 Next»
