Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB0912-4R7MLFIXED IND 4.7UH 4A 22 MOHM TH |
1,542 | 0.50 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 5A | Unshielded | 22mOhm Max | 30 @ 7.96MHz | 41MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.433" (11.00mm) |
|
RLB0914-821KLFIXED IND 820UH 460MA 1.8 OHM TH |
1,353 | 0.50 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 460 mA | 830mA | Unshielded | 1.8Ohm Max | 20 @ 796kHz | 1.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0914-220KLFIXED IND 22UH 1.9A 90 MOHM TH |
1,271 | 0.50 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.9 A | 4.5A | Unshielded | 90mOhm Max | 40 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
|
RLB0914-4R7MLFIXED IND 4.7UH 3.2A 33 MOHM TH |
1,230 | 0.50 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.2 A | 10A | Unshielded | 33mOhm Max | 20 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
VLCF4018T-6R8NR94-2FIXED IND 6.8UH 940MA 124MOHM SM |
1,160 | 0.84 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 940 mA | 940mA | Shielded | 124mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SRN4018-221MFIXED IND 220UH 280MA 3.552 OHM |
1,085 | 0.50 |
|
Datasheet |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 280 mA | 300mA | Shielded | 3.552Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SRP2512-2R2MFIXED IND 2.2UH 2.1A 104MOHM SMD |
152,122 | 0.52 |
|
Datasheet |
SRP2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.1 A | 3A | Shielded | 104mOhm Max | 39 @ 1MHz | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
TFM252012ALVA4R7MTAAFIXED IND 4.7UH 1.6A 200MOHM SMD |
114,488 | 0.81 |
|
Datasheet |
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.6 A | 1.9A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRN3015-150MFIXED IND 15UH 800MA 422MOHM SMD |
98,274 | 0.52 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 680mA | Shielded | 422mOhm Max | 17 @ 2.52MHz | 33MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-1R5YFIXED IND 1.5UH 2.1A 66 MOHM SMD |
39,895 | 0.52 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.1 A | 2A | Shielded | 66mOhm Max | 10 @ 7.96MHz | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-101MFIXED IND 100UH 290MA 2.92OHM SM |
37,286 | 0.52 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 290 mA | 270mA | Shielded | 2.92Ohm Max | 27 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015-470MFIXED IND 47UH 400MA 1.406OHM SM |
24,059 | 0.52 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 400 mA | 380mA | Shielded | 1.406Ohm Max | 27 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LQW18CNR47J00DFIXED IND 470NH 500MA 450MOHM SM |
20,965 | 0.48 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 500 mA | - | Unshielded | 450mOhm Max | - | 555MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
SRN3015-3R3MFIXED IND 3.3UH 1.6A 112MOHM SMD |
17,024 | 0.52 |
|
Datasheet |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.6 A | 1.4A | Shielded | 112mOhm Max | 10 @ 7.96MHz | 75MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
AIAP-01-222K-TFIXED IND 2.2MH 100MA 19 OHM TH |
14,163 | 0.47 |
|
Datasheet |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 2.2 mH | ±10% | 100 mA | - | Unshielded | 19Ohm Max | - | 640kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|

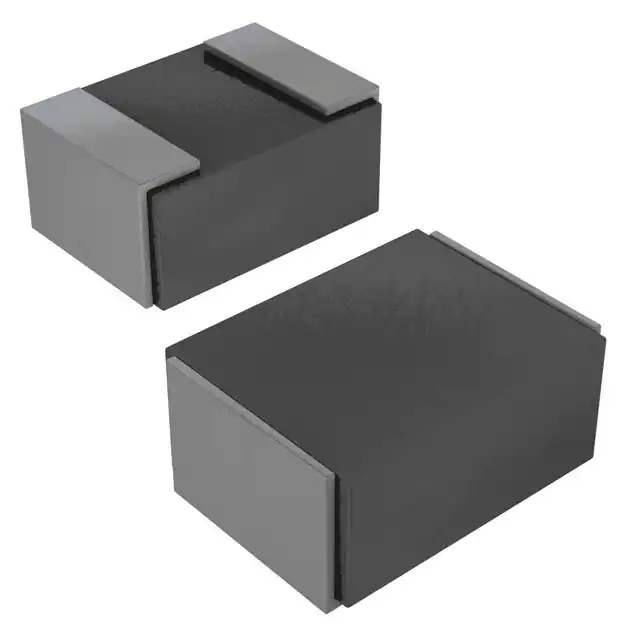

SRP2010-2R2MFIXED IND 2.2UH 1.7A 150MOHM SMD |
13,597 | 0.52 |
|
Datasheet |
SRP2010 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 1.7 A | 1.9A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRP2512-R47MFIXED IND 470NH 4.5A 25 MOHM SMD |
11,988 | 0.52 |
|
Datasheet |
SRP2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 4.5 A | 5.3A | Shielded | 25mOhm Max | 39 @ 1MHz | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW18CNR65J00DFIXED IND 650NH 430MA 520MOHM SM |
10,544 | 0.48 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 650 nH | ±5% | 430 mA | - | Unshielded | 520mOhm Max | - | 510MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
B82422A1473K100FIXED IND 47UH 85MA 7 OHM SMD |
9,235 | 0.60 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 85 mA | - | Unshielded | 7Ohm Max | 27 @ 2.52MHz | 11MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1104K100FIXED IND 100UH 65MA 11.5OHM SMD |
8,058 | 0.60 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 65 mA | - | Unshielded | 11.5Ohm Max | 27 @ 2.52MHz | 7MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
