Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)

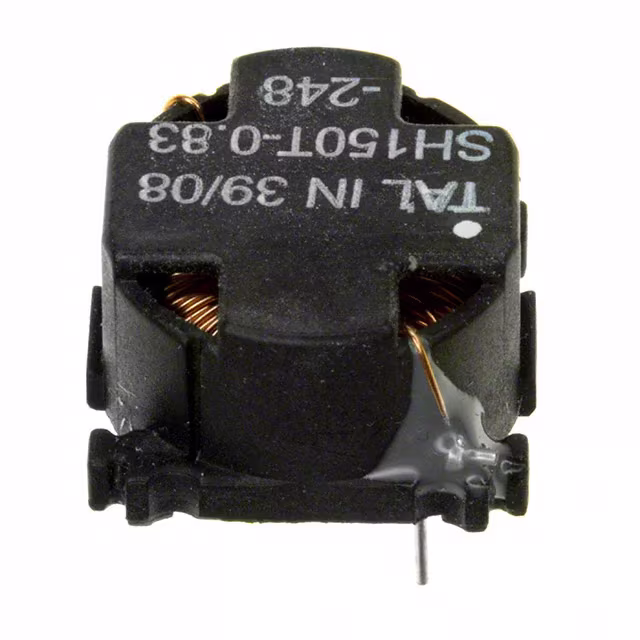

SH150T-0.83-248 FIXED IND 248UH 830MA 600MOHM TH Amgis, LLC	4,050	6.36	RFQ	Datasheet	SH150	Radial, Horizontal - Corner Terminals	Tray	Active	Toroidal	Iron Powder	248 µH	±20%	830 mA	-	Unshielded	600mOhm	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	0.614" L x 0.591" W (15.60mm x 15.00mm)	0.358" (9.10mm)

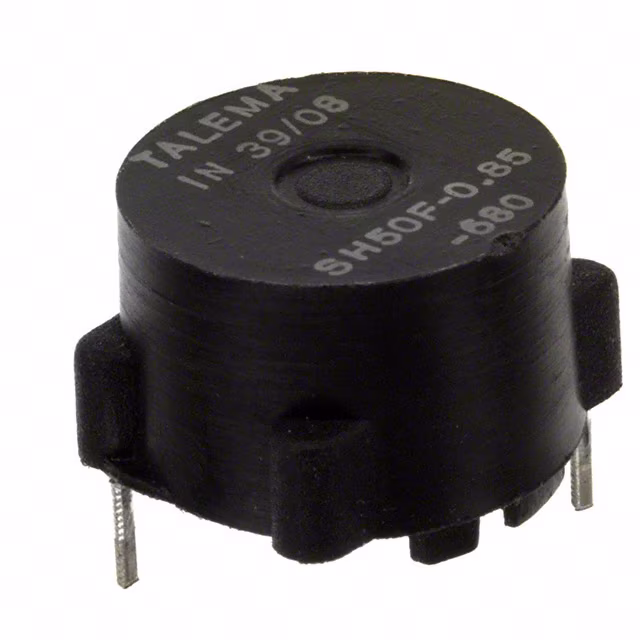

SH50F-0.85-680 FIXED IND 680UH 850MA 1.25OHM TH Amgis, LLC	100	6.39	RFQ	Datasheet	SH50	Radial, Vertical Cylinder, 4 Leads	Tray	Active	Toroidal	Iron Powder	680 µH	±20%	850 mA	-	Unshielded	1.25Ohm Max	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	0.669" Dia (17.00mm)	0.492" (12.50mm)
CTX10-7-52-R FIXED IND 10UH 11.4A 8 MOHM TH Eaton - Electronics Division	1,456	6.53	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	10 µH	±20%	11.4 A	13.5A	Unshielded	8mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.012" Dia x 0.709" W (25.70mm x 18.00mm)	-
DSH-22-0002 FIXED IND 630MA 750 MOHM TH SCHURTER Inc.	2,124	6.68	RFQ	Datasheet	DSH	Radial, Horizontal - Corner Terminals	Bulk	Active	-	-	-	-	630 mA	-	-	750mOhm	-	-	-	-40°C ~ 125°C	-	-	Through Hole	-	0.906" L x 0.512" W (23.00mm x 13.00mm)	-

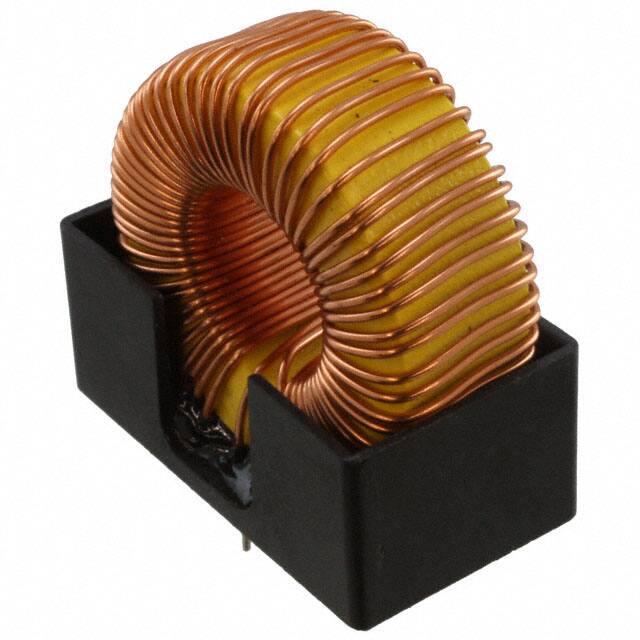

SH50C-3.0-330 FIXED IND 330UH 3A 150 MOHM TH Amgis, LLC	4,974	7.47	RFQ	Datasheet	SH50	Radial, Vertical (Open)	Tray	Active	Toroidal	Iron Powder	330 µH	±20%	3 A	-	Unshielded	150mOhm Max	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	1.252" L x 0.701" W (31.80mm x 17.81mm)	1.382" (35.10mm)
CTX500-1-52LP-R FIXED IND 500UH 1.7A 361 MOHM TH Eaton - Electronics Division	4,464	7.50	RFQ	Datasheet	CTX	Radial, Horizontal (Open)	Bulk	Active	Toroidal	Iron Powder	500 µH	±20%	1.7 A	1.9A	Unshielded	361mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	0.945" Dia (24.00mm)	0.602" (15.30mm)
IHD1EB270L FIXED IND 27UH 1.9A 70 MOHM TH Vishay Dale	1,998	7.91	RFQ	Datasheet	IHD	Axial	Bulk	Active	Drum Core, Wirewound	Ferrite	27 µH	±15%	1.9 A	1.4A	Unshielded	70mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-	0.270" Dia x 0.700" L (6.86mm x 17.78mm)	-
B82559A3152A020 FIXED IND 1.5UH 0.9 MOHM SMD EPCOS - TDK Electronics	2,562	8.28	RFQ	Datasheet	ERU20 - Flat Wire Inductor	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	1.5 µH	±10%	-	50A	Shielded	0.9mOhm Max	-	-	AEC-Q200	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.878" L x 0.866" W (22.30mm x 22.00mm)	0.437" (11.10mm)
CTX150-2-52LP-R FIXED IND 150UH 4.3A 71.9MOHM TH Eaton - Electronics Division	2,749	7.11	RFQ	Datasheet	CTX	Radial, Horizontal (Open)	Bulk	Active	Toroidal	Iron Powder	150 µH	±20%	4.3 A	4A	Unshielded	71.9mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.205" Dia (30.60mm)	0.441" (11.20mm)
74434301213100 FIXED IND 10UH 6A 20 MOHM SMD Würth Elektronik	3,170	8.08	RFQ	Datasheet	WE-LHMD	Nonstandard	Tape & Reel (TR)	Active	-	-	10 µH	±15%	6 A	21A	Shielded	20mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.543" L x 0.543" W (13.80mm x 13.80mm)	0.406" (10.30mm)
7444011480100 FIXED IND 10UH 8.5A 9 MOHM TH Würth Elektronik	1,416	8.08	RFQ	Datasheet	WE-HIDA	Nonstandard	Tray	Active	-	-	10 µH	±20%	8.5 A	13.5A	Unshielded	9mOhm	-	18MHz	-	-40°C ~ 125°C	100 kHz	-	Through Hole	-	0.551" L x 0.315" W (14.00mm x 8.00mm)	0.630" (16.00mm)
7444011715100 FIXED IND 10UH 10A 7 MOHM TH Würth Elektronik	4,971	8.08	RFQ	Datasheet	WE-HIDA	Nonstandard	Tray	Active	-	-	10 µH	±20%	10 A	28A	Unshielded	7mOhm	-	19MHz	-	-40°C ~ 125°C	100 kHz	-	Through Hole	-	0.689" L x 0.591" W (17.50mm x 15.00mm)	0.768" (19.50mm)
7444211415082 FIXED IND 8.2UH 6.7A 9.2MOHM TH Würth Elektronik	1,466	8.08	RFQ	Datasheet	WE-HIDA	Nonstandard	Tray	Active	-	-	8.2 µH	±20%	6.7 A	16A	Unshielded	9.2mOhm	-	20MHz	-	-40°C ~ 125°C	100 kHz	-	Through Hole	-	0.610" L x 0.551" W (15.50mm x 14.00mm)	0.083" (2.10mm)
1538M12 FIXED IND 68UH 7.3A 34 MOHM TH Hammond Manufacturing	1,643	10.80	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	68 µH	±10%	7.3 A	-	Unshielded	34mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.880" Dia x 1.120" L (22.35mm x 28.45mm)	-
1538M10 FIXED IND 27UH 9A 22 MOHM TH Hammond Manufacturing	4,960	11.42	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	27 µH	±10%	9 A	-	Unshielded	22mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.880" Dia x 0.880" L (22.35mm x 22.35mm)	-

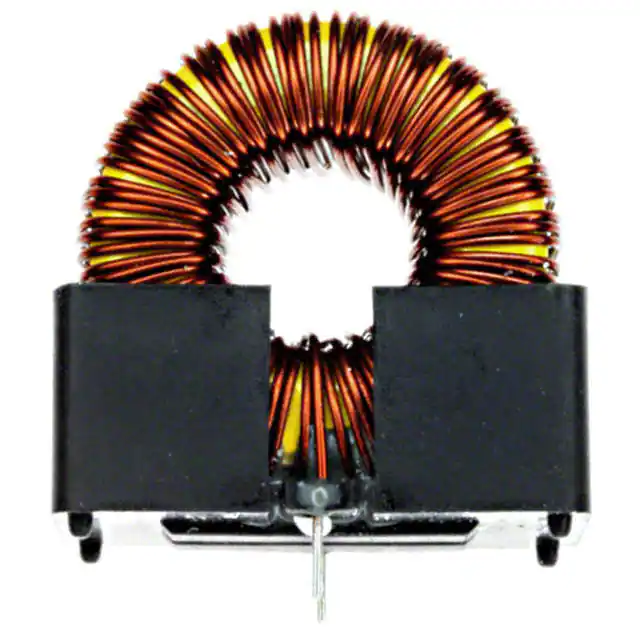

SH50C-0.95-1000 FIXED IND 1MH 950MA 240 MOHM TH Amgis, LLC	4,824	7.58	RFQ	Datasheet	SH50	Radial, Vertical (Open)	Tray	Active	Toroidal	Iron Powder	1 mH	±20%	950 mA	-	Unshielded	240mOhm Max	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	1.252" L x 0.701" W (31.80mm x 17.81mm)	1.382" (35.10mm)
1540M03 FIXED IND 125UH 2.75A 120MOHM TH Hammond Manufacturing	4,326	12.85	RFQ	Datasheet	1540	Radial, Vertical (Open)	Bulk	Active	Toroidal	-	125 µH	±15%	2.75 A	-	Unshielded	120mOhm Max	-	-	-	-	-	-	Through Hole	-	0.875" Dia x 0.437" W (22.22mm x 11.10mm)	-
DFSG-30-0001 FIXED IND 3A 165 MOHM TH SCHURTER Inc.	2,146	8.25	RFQ	Datasheet	DFSG	Radial, Horizontal - Corner Terminals	Bulk	Active	-	-	-	-	3 A	-	-	165mOhm	-	-	-	-25°C ~ 100°C	-	-	Through Hole	-	1.181" L x 1.181" W (30.00mm x 30.00mm)	-
1538M04 FIXED IND 50UH 5.6A 40 MOHM TH Hammond Manufacturing	1,131	11.22	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	50 µH	±10%	5.6 A	-	Unshielded	40mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.810" Dia x 0.880" L (20.57mm x 22.35mm)	-
HCM1A2213V2-101-R FIXED IND 100UH 6.4A 39.5MOHM SM Eaton - Electronics Division	1,097	10.47	RFQ	Datasheet	HCM1AV2	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	100 µH	±20%	6.4 A	8A	Shielded	39.5mOhm Max	-	1.9MHz	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.885" L x 0.866" W (22.48mm x 22.00mm)	0.512" (13.00mm)

Total 147749 Record«Prev 1... 1889 1890 1891 189218931894 1895 1896...7388 Next»
