Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

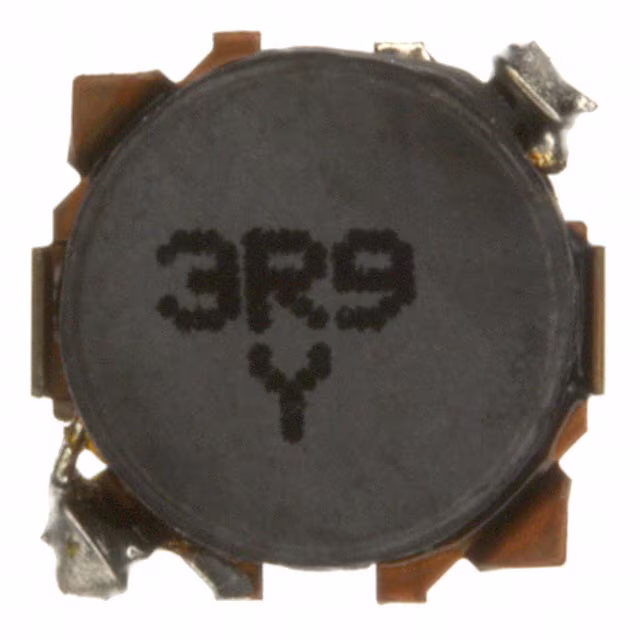

ELL-6GG3R9MFIXED IND 3.9UH 1.7A 60 MOHM SMD |
2,383 | 0.96 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±20% | 1.7 A | 1.65A | Shielded | 60mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.063" (1.60mm) |
|
AMDLA7030Q-1R0MTFIXED IND 1UH 11A 7.4 MOHM SMD |
4,745 | 0.59 |
|
Datasheet |
AMDLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 11 A | 13.5A | Shielded | 7.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
OWIHP1040A-220MFIXED IND 22UH 7A 74 MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
- | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 22 µH | ±20% | 5 A | 7A | Unshielded | 74mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
OWIHP1040A-100MFIXED IND 10UH 12A 30 MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
- | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 10 µH | ±20% | 7.5 A | 12A | Unshielded | 30mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
OWIHP1040A-150MFIXED IND 15UH 10A 45 MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
- | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 15 µH | ±20% | 6.25 A | 10A | Unshielded | 45mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
OWIHP1040A-330MFIXED IND 33UH 5A 112 MOHM SMD |
1,000 | 0.00 |
|
Datasheet |
- | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 33 µH | ±20% | 3.5 A | 5A | Unshielded | 112mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
OWIHP1040A-470MFIXED IND 47UH 4.5A 167 MOHM SMD |
995 | 0.00 |
|
Datasheet |
- | Nonstandard | Cut Tape (CT) | Active | Molded | Metal | 47 µH | ±20% | 3 A | 4A | Unshielded | 167mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
AMDLA7030S-R68MTFIXED IND 680NH 14.5A 5.3MOHM SM |
979 | 1.18 |
|
Datasheet |
AMDLA7030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 14.5 A | 15A | Shielded | 5.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
APO 322530NV-100M10 UH SHIELDED DRUM CORE, WIREWO |
864 | 0.00 |
|
Datasheet |
APO322530NV | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.13 A | 1.1A | Unshielded | 340mOhm Max | - | 95MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" (3.20mm) |
|
|
APO 322530NV-220M22 UH SHIELDED DRUM CORE, WIREWO |
741 | 0.00 |
|
Datasheet |
APO322530NV | 1210 (3225 Metric) | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 700 mA | 720mA | Unshielded | 880mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" (3.20mm) |
|
AMPLA7030S-1R5MTFIXED IND 1.5UH 9A 15 MOHM SMD |
490 | 1.54 |
|
Datasheet |
AMPLA7030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
SBC1-1R5-292FIXED IND 1.5UH 2.9A 30 MOHM TH |
474 | 0.89 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.9 A | 4A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.335" (8.50mm) |
|
VLP4612T-220MR34FIXED IND 22UH 340MA 1.42OHM SMD |
2,104 | 0.92 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 340 mA | 390mA | Unshielded | 1.42Ohm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.181" L x 0.118" W (4.60mm x 3.00mm) | 0.047" (1.20mm) |
|
CLF6045T-220MFIXED IND 22UH 1.7A 93.6MOHM SMD |
1,898 | 0.92 |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.7 A | 1.3A | Shielded | 93.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|
SBCP-47HY470BFIXED IND 47UH 730MA 267 MOHM TH |
4,666 | 0.47 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 730 mA | 730mA | Unshielded | 267mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY151BFIXED IND 150UH 410MA 878MOHM TH |
4,097 | 0.47 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 410 mA | 410mA | Unshielded | 878mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
NLC565050T-180K-PFFIXED IND 18UH 530MA 360MOHM SMD |
106 | 0.81 |
|
Datasheet |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±10% | 530 mA | - | Unshielded | 360mOhm Max | 10 @ 2.52MHz | 14MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NLC565050T-8R2K-PFFIXED IND 8.2UH 750MA 180MOHM SM |
2,904 | 0.81 |
|
Datasheet |
NLC | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±10% | 750 mA | - | Unshielded | 180mOhm Max | 10 @ 7.96MHz | 22MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
HCMA1104-2R2-RFIXED IND 2.2UH 12A 7 MOHM SMD |
1,486 | 0.89 |
|
Datasheet |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 12 A | 18A | Shielded | 7mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
0624CDMCCDS-150MCFIXED IND 15UH 2.5A 160MOHM SMD |
583 | 0.91 |
|
Datasheet |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 2.5 A | 3.7A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
