Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPD2315FA-220MFIX IND 22UH 14A 6.06 MOHM TH |
1,391 | 0.00 |
|
Datasheet |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | 22 µH | ±20% | 14 A | 23.5A | Shielded | 6.06mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|
|
CPD2315FA-150MFIX IND 15UH 14A 6.06 MOHM TH |
2,871 | 0.00 |
|
Datasheet |
CPD2315FA | Radial | Tray | Active | Molded | Ferrite | 15 µH | ±20% | 14 A | 30.5A | Shielded | 6.06mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|
IHTH0750IZEB470M5AFIXED IND 47UH 6.8A 37.2 MOHM TH |
4,804 | 4.09 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder, 3 Leads | Bulk | Active | - | Metal Composite | 47 µH | ±20% | 6.8 A | 6.5A | Shielded | 37.2mOhm Max | - | 4.28MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
|
IHTH0750IZEB330M5AFIXED IND 33UH 9.5A 23.8 MOHM TH |
4,471 | 4.09 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder, 3 Leads | Bulk | Active | - | Metal Composite | 33 µH | ±20% | 9.5 A | 10A | Shielded | 23.8mOhm Max | - | 4.58MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
|
IHTH0750IZEB680M5AFIXED IND 68UH 6.2A 48.92MOHM TH |
3,710 | 4.09 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder, 3 Leads | Bulk | Active | - | Metal Composite | 68 µH | ±20% | 6.2 A | 6.2A | Shielded | 48.92mOhm Max | - | 2.74MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
MPX1D1740L330FIXED IND 33UH 5A 82.3 MOHM SMD |
4,005 | 6.21 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 5 A | 8A | Shielded | 82.3mOhm Max | - | 4MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
IHTH0750IZEB6R8M5AFIXED IND 6.8UH 24.5A 4.18 MOHM |
100 | 4.09 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 6.8 µH | ±20% | 24.5 A | 22A | Shielded | 4.18mOhm Max | - | 9.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
|
MPX1D1740L4R7FIXED IND 4.7UH 14.5A 10.4 MOHM |
1,161 | 6.21 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 14.5 A | 18.5A | Shielded | 10.4mOhm Max | - | 12MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
|
IHTH0750IZEB8R2M5AFIXED IND 8.2UH 20A 6.14 MOHM TH |
1,136 | 4.09 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 8.2 µH | ±20% | 20 A | 14.5A | Shielded | 6.14mOhm Max | - | 11.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
|
MPX1D1740L150FIXED IND 15UH 7.5A 35.2MOHM SMD |
2,620 | 6.21 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 7.5 A | 13A | Shielded | 35.2mOhm Max | - | 6MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
CTH7F-102K1000UH AXIAL PWR LINE INDUCTOR |
3,912 | 3.55 |
|
Datasheet |
CTH7F | Axial | Tape & Reel (TR) | Active | - | - | 1 mH | ±10% | 200 mA | 400mA | Unshielded | 2.3Ohm Max | - | 1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.290" Dia x 0.602" L (7.37mm x 15.30mm) | - |
|

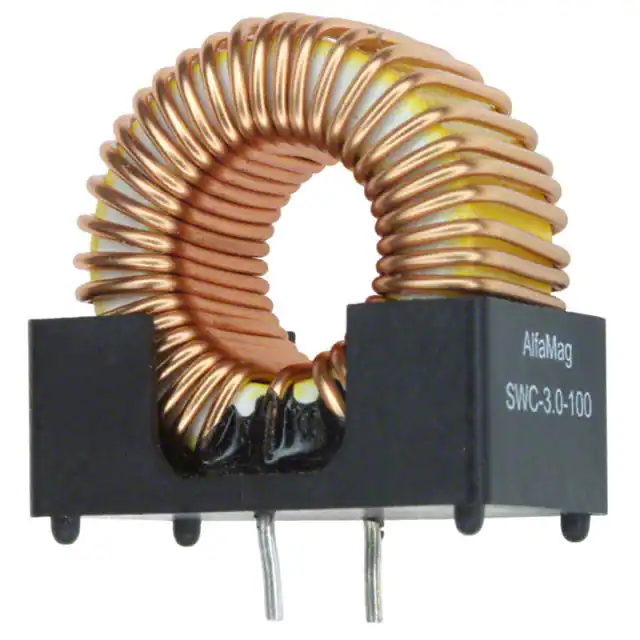

SWC-3.0-100FIXED IND 100UH 3A 40 MOHM TH |
100 | 3.71 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±20% | 3 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
DHP106095S-101MHFFIXED IND 100UH 11.5A 15.5 MOHM |
2,780 | 5.80 |
|
Datasheet |
DHP106095S | Radial | Tray | Active | - | Ferrite | 100 µH | ±20% | 11.5 A | - | Shielded | 15.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | 1.094" L x 0.724" W (27.80mm x 18.40mm) | 0.949" (24.10mm) |
|
|
DHP106095S-620MHFFIXED IND 62UH 12A 14.7 MOHM TH |
2,213 | 5.80 |
|
Datasheet |
DHP106095S | Radial | Tray | Active | - | Ferrite | 62 µH | ±20% | 12 A | - | Shielded | 14.7mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | 1.094" L x 0.724" W (27.80mm x 18.40mm) | 0.949" (24.10mm) |
|
CSBL2212-220MSMD HIGH CURRENT POWER INDUCTOR |
1,807 | 8.08 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 15 A | 21A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBL2212-100MSMD HIGH CURRENT POWER INDUCTOR |
3,139 | 8.08 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 21 A | 31A | Shielded | 3.88mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBL2212-101MSMD HIGH CURRENT POWER INDUCTOR |
4,631 | 8.08 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 100 µH | ±20% | 6.1 A | 9A | Shielded | 40.8mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
CSBX2212-330MSMD HIGH CURRENT POWER INDUCTOR |
3,330 | 5.95 |
|
Datasheet |
CSBX2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 33 µH | ±20% | 11.5 A | 22A | Shielded | 13.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CPD1717BA-220MTHT CLASS D IND FOR DIGITAL AMP |
1,723 | 0.00 |
|
Datasheet |
CPD1717BA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 9 A | 11.9A | Shielded | 17.44mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.760" (19.30mm) |
|
|
CPD1717BA-100MTHT CLASS D IND FOR DIGITAL AMP |
4,449 | 0.00 |
|
Datasheet |
CPD1717BA | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 14 A | 20A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.760" (19.30mm) |
