Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWVS00808040150M00FIXED IND 15UH 3.2A 50 MOHM SMD |
6,373 | 0.68 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 3.2 A | 3.6A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
B82498F3561J000FIXED IND 560NH 230MA 1.3OHM SMD |
6,174 | 0.74 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 230 mA | - | Unshielded | 1.3Ohm Max | 23 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
BWVS00808040220M00FIXED IND 22UH 2.6A 80 MOHM SMD |
5,267 | 0.68 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.6 A | 2.8A | Shielded | 80mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

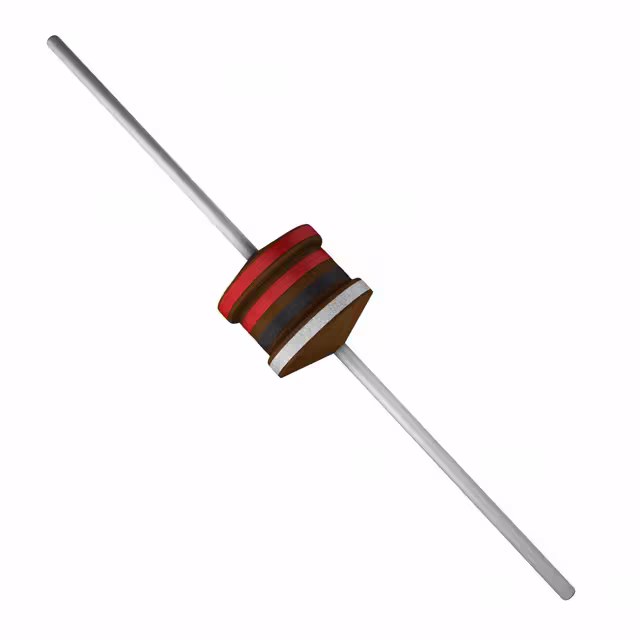

B82144F2223K000FIXED IND 22UH 2.1A 0.175OHM TH |
4,471 | 0.76 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2A | Unshielded | 175mOhm Max | 50 @ 252kHz | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
TFM201210ALMA2R2MTAAINDUCTORS FOR POWER CIRCUITS, AU |
4,317 | 0.67 |
|
Datasheet |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 1.1 A | 1.2A | Shielded | 282mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

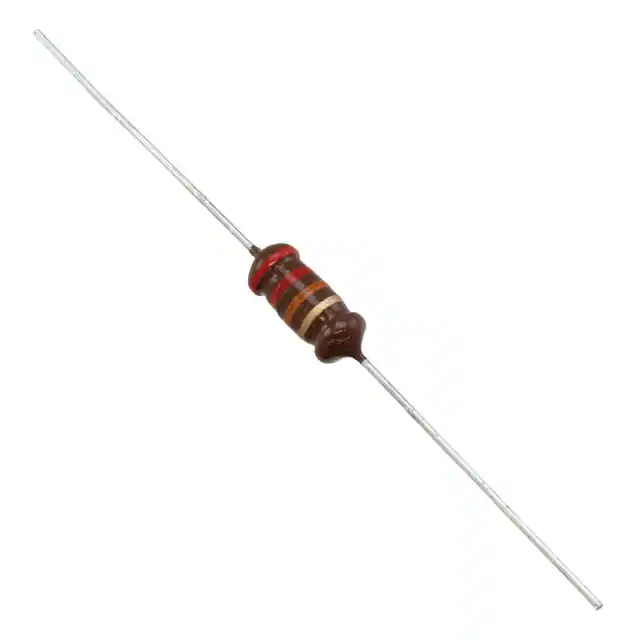

B82144A2226J000FIXED IND 22MH 40MA 120 OHM TH |
3,989 | 0.73 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±5% | 40 mA | - | Unshielded | 120Ohm Max | 50 @ 79.6kHz | 260kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

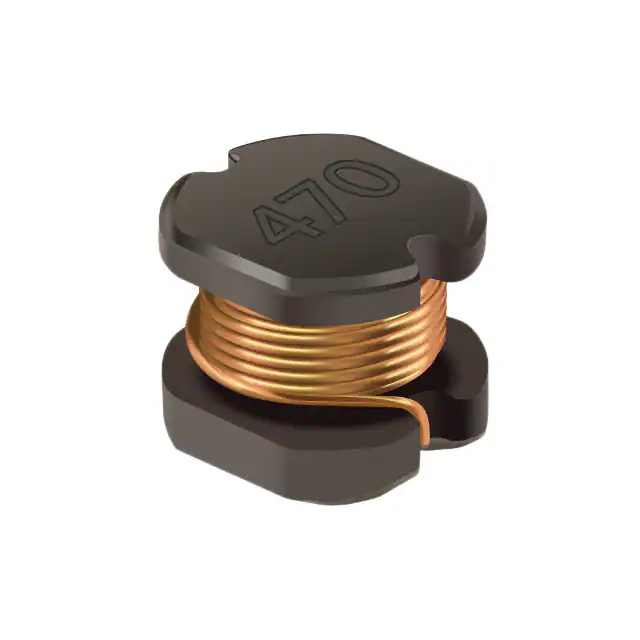

SDE0604A-120MFIXED IND 12UH 2.5A 120 MOHM SMD |
3,864 | 0.69 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.5 A | 1.85A | Unshielded | 120mOhm Max | - | 29MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
SDE0604A-2R2MFIXED IND 2.2UH 4.35A 31MOHM SMD |
3,744 | 0.69 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.35 A | 4.2A | Unshielded | 31mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
TFM201210ALMA1R5MTAAINDUCTORS FOR POWER CIRCUITS, AU |
3,460 | 0.67 |
|
Datasheet |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 1.8 A | 2A | Shielded | 130mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
74404043047AFIXED IND 4.7UH 2.3A 46MOHM SMD |
3,354 | 0.63 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.3 A | 1.43A | Shielded | 46mOhm | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
SDE0604A-180MFIXED IND 18UH 2A 150 MOHM SMD |
3,308 | 0.69 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2 A | 1.5A | Unshielded | 150mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
BWVS008080404R7M00FIXED IND 4.7UH 5.5A 18 MOHM SMD |
2,828 | 0.68 |
|
Datasheet |
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 5.5 A | 6A | Shielded | 18mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
AIAC-1812-22NK-TFIXED IND 22NH 3.2A 4.8 MOHM SMD |
2,785 | 0.67 |
|
Datasheet |
AIAC-1812 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±10% | 3.2 A | - | Unshielded | 4.8mOhm Max | 100 @ 150MHz | 3.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.146" (3.70mm) |
|

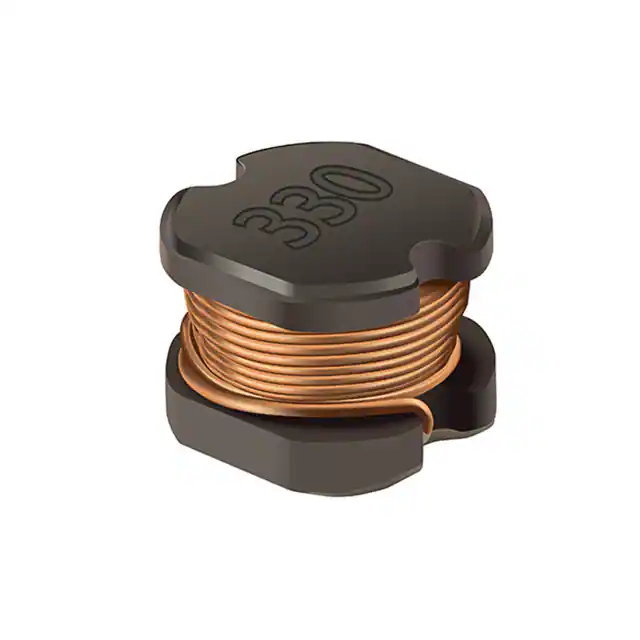

SDE0403A-180MFIXED IND 18UH 750MA 309MOHM SMD |
2,576 | 0.69 |
|
Datasheet |
SDE0403A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 750 mA | 1.1A | Unshielded | 309mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
VLS3012HBX-6R8MFIXED IND 6.8UH 1.84A 285MOHM SM |
2,370 | 0.70 |
|
Datasheet |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.84 A | 1.98A | Shielded | 285mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AIAC-1812-68NJ-TFIXED IND 68NH 2.9A 8.1 MOHM SMD |
2,212 | 0.67 |
|
Datasheet |
AIAC-1812 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 68 nH | ±5% | 2.9 A | - | Unshielded | 8.1mOhm Max | 100 @ 150MHz | 1.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.146" (3.70mm) |
|

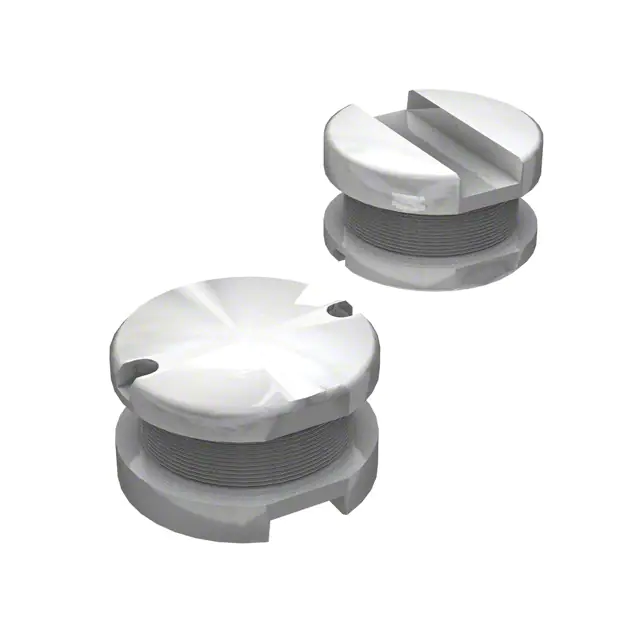

SDR0503-153JLFIXED IND 15MH 20MA 168 OHM SMD |
71,523 | 0.70 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±5% | 20 mA | 32mA | Unshielded | 168Ohm Max | 30 @ 79.6kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
|
CLF7045NIT-471M-DFIXED IND 470UH 410MA 1.44OHM SM |
29,405 | 1.19 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 410 mA | 410mA | Shielded | 1.44Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SDE0604A-4R7MFIXED IND 4.7UH 3.4A 70 MOHM SMD |
6,321 | 0.69 |
|
Datasheet |
SDE0604A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.4 A | 3A | Unshielded | 70mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.189" (4.80mm) |
|
|
SDR0503-102KLFIXED IND 1MH 110MA 11.5 OHM SMD |
6,197 | 0.70 |
|
Datasheet |
SDR0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 110 mA | 135mA | Unshielded | 11.5Ohm Max | 40 @ 252kHz | 3MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.197" L x 0.189" W (5.00mm x 4.80mm) | 0.130" (3.30mm) |
