Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
1538M08 FIXED IND 5UH 14A 9 MOHM TH Hammond Manufacturing	1,275	10.80	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	5 µH	±10%	14 A	-	Unshielded	9mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.640" Dia x 0.880" L (16.26mm x 22.35mm)	-

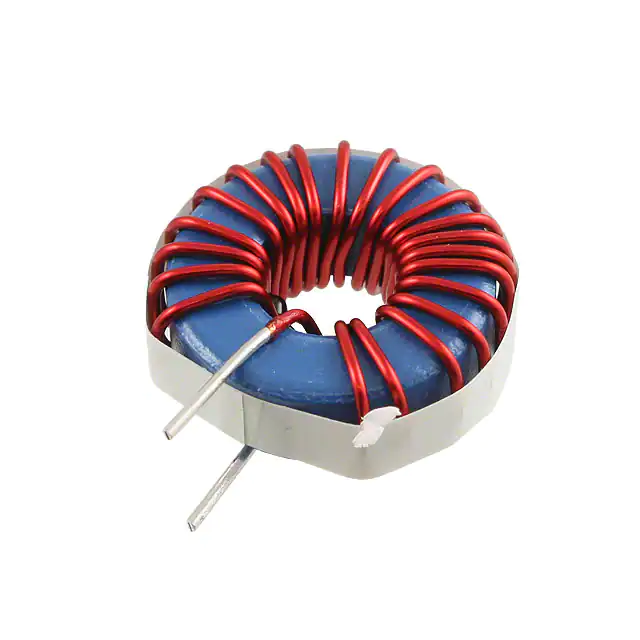

CTX50-7-52-R FIXED IND 50UH 10.5A 16.3MOHM TH Eaton - Electronics Division	1,938	10.43	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	50 µH	±20%	10.5 A	10.2A	Unshielded	16.3mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.535" Dia x 0.661" W (39.00mm x 16.80mm)	-
1538M13 FIXED IND 100UH 6.8A 38 MOHM TH Hammond Manufacturing	3,665	12.03	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	100 µH	±10%	6.8 A	-	Unshielded	38mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.880" Dia x 1.380" L (22.35mm x 35.05mm)	-
1538M21 FIXED IND 5UH 23A 4 MOHM TH Hammond Manufacturing	4,132	11.28	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	5 µH	±10%	23 A	-	Unshielded	4mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.720" Dia x 1.380" L (18.29mm x 35.05mm)	-
1140-560K-RC FIXED IND 56UH 12A 19 MOHM TH Bourns Inc.	2,741	12.37	RFQ	Datasheet	1140	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	56 µH	±10%	12 A	27.6A	Unshielded	19mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	1.500" Dia (38.10mm)	1.028" (26.10mm)
MPX1D2213L100 FIXED IND 10UH 34A 4.4 MOHM SMD KEMET	1,284	11.92	RFQ	Datasheet	METCOM MPX	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal Composite	10 µH	±20%	34 A	36A	Shielded	4.4mOhm Max	-	5.2MHz	-	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.886" L x 0.866" W (22.50mm x 22.00mm)	0.512" (13.00mm)
MPX1D2213L101 FIXED IND 100UH 10A 47.4MOHM SMD KEMET	3,608	11.92	RFQ	Datasheet	METCOM MPX	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal Composite	100 µH	±20%	10 A	10.5A	Shielded	47.4mOhm Max	-	1.6MHz	-	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.886" L x 0.866" W (22.50mm x 22.00mm)	0.512" (13.00mm)
1538M19 FIXED IND 68UH 10A 23 MOHM TH Hammond Manufacturing	3,623	11.70	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	68 µH	±10%	10 A	-	Unshielded	23mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.940" Dia x 1.380" L (23.88mm x 35.05mm)	-
1140-392K-RC FIXED IND 3.9MH 1.8A 845 MOHM TH Bourns Inc.	1,186	12.37	RFQ	Datasheet	1140	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	3.9 mH	±10%	1.8 A	3.3A	Unshielded	845mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	1.500" Dia (38.10mm)	1.030" (26.16mm)
1540M02 FIXED IND 25UH 5.5A 14 MOHM TH Hammond Manufacturing	1,711	12.93	RFQ	Datasheet	1540	Radial, Vertical (Open)	Bulk	Active	Toroidal	-	25 µH	±15%	5.5 A	-	Unshielded	14mOhm Max	-	-	-	-	-	-	Through Hole	-	0.875" Dia x 0.437" W (22.22mm x 11.10mm)	-
1540M10 FIXED IND 1MH 1.5A 980 MOHM TH Hammond Manufacturing	2,370	11.68	RFQ	Datasheet	1540	Radial, Vertical (Open)	Bulk	Active	Toroidal	-	1 mH	±15%	1.5 A	-	Unshielded	980mOhm Max	-	-	-	-	-	-	Through Hole	-	1.125" Dia x 0.562" W (28.58mm x 14.27mm)	-
7443783533220 FIXED IND 22UH 23.2A 8.8 MOHM TH Würth Elektronik	2,106	14.95	RFQ	Datasheet	WE-HCFT	Nonstandard	Tray	Active	Drum Core, Wirewound	Manganese Zinc Ferrite (MnZn)	22 µH	±20%	23.2 A	49.4A	Shielded	8.8mOhm Max	-	8.15MHz	-	-40°C ~ 125°C	100 kHz	-	Through Hole	-	1.417" L x 1.358" W (36.00mm x 34.50mm)	1.378" (35.00mm)
1538M23 FIXED IND 27UH 15A 10 MOHM TH Hammond Manufacturing	3,331	11.66	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	27 µH	±10%	15 A	-	Unshielded	10mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	1.000" Dia x 1.380" L (25.40mm x 35.05mm)	-

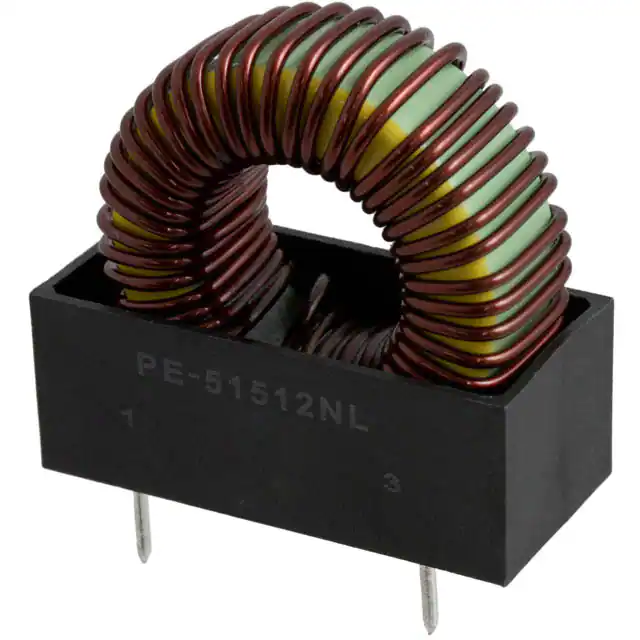

PE-51512NL FIXED IND 90UH 10A 28 MOHM TH Pulse Electronics	1,973	11.97	RFQ	Datasheet	-	Radial, Vertical, 4 Leads (Open)	Tray	Active	Toroidal	-	90 µH	-	10 A	-	Unshielded	28mOhm Max	-	-	-	-40°C ~ 130°C	50 kHz	-	Through Hole	-	1.950" L x 0.910" W (49.53mm x 23.11mm)	2.000" (50.80mm)
MPXV1D2213L4R7 FIXED IND 4.7UH 48A 2.2 MOHM SMD KEMET	2,548	12.86	RFQ	Datasheet	METCOM MPXV	Nonstandard	Tape & Reel (TR)	Active	-	Metal Composite	4.7 µH	±20%	48 A	40A	Shielded	2.2mOhm Max	-	9MHz	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.886" L x 0.866" W (22.50mm x 22.00mm)	0.512" (13.00mm)
HC3-3R3-R FIXED IND 3.3UH 42.45A 1.2 MOHM Eaton - Electronics Division	1,823	10.72	RFQ	Datasheet	HC3	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	3.3 µH	±20%	42.45 A	46A	Unshielded	1.2mOhm Max	-	-	-	-40°C ~ 85°C	300 kHz	-	Surface Mount	-	1.181" L x 0.996" W (30.00mm x 25.30mm)	0.689" (17.50mm)
1540M17 FIXED IND 500UH 4A 150 MOHM TH Hammond Manufacturing	3,670	13.56	RFQ	Datasheet	1540	Radial, Vertical (Open)	Bulk	Active	Toroidal	-	500 µH	±15%	4 A	-	Unshielded	150mOhm Max	-	-	-	-	-	-	Through Hole	-	1.812" Dia x 0.750" W (46.02mm x 19.05mm)	-
1540M12 FIXED IND 150UH 4.75A 46 MOHM TH Hammond Manufacturing	3,624	11.98	RFQ	Datasheet	1540	Radial, Vertical (Open)	Bulk	Active	Toroidal	-	150 µH	±15%	4.75 A	-	Unshielded	46mOhm Max	-	-	-	-	-	-	Through Hole	-	1.250" Dia x 0.625" W (31.75mm x 15.88mm)	-
1538M14 FIXED IND 150UH 6.3A 46 MOHM TH Hammond Manufacturing	2,109	13.01	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	150 µH	±10%	6.3 A	-	Unshielded	46mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.880" Dia x 1.620" L (22.35mm x 41.15mm)	-
1538M18 FIXED IND 50UH 10.5A 20 MOHM TH Hammond Manufacturing	2,523	13.14	RFQ	Datasheet	1538	Radial, Horizontal Cylinder	Bulk	Active	Wirewound	-	50 µH	±10%	10.5 A	-	Unshielded	20mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-	0.940" Dia x 1.380" L (23.88mm x 35.05mm)	-

Total 147749 Record«Prev 1... 2111 2112 2113 211421152116 2117 2118...7388 Next»
