Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6000-220K-RCFIXED IND 22UH 2.4A 70 MOHM TH |
2,736 | 1.05 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.4 A | - | Unshielded | 70mOhm Max | 40 @ 2.52MHz | 9.2MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
6000-560K-RCFIXED IND 56UH 1.48A 180 MOHM TH |
1,918 | 1.00 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.48 A | - | Unshielded | 180mOhm Max | 30 @ 2.52MHz | 5.4MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
6000-271K-RCFIXED IND 270UH 900MA 750MOHM TH |
4,382 | 1.00 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 900 mA | - | Unshielded | 750mOhm Max | 20 @ 796kHz | 2.4MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
6000-821K-RCFIXED IND 820UH 560MA 1.8 OHM TH |
3,158 | 1.05 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 560 mA | - | Unshielded | 1.8Ohm Max | 20 @ 796kHz | 1.5MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
B82473A1473K000FIXED IND 47UH 1.1A 180 MOHM SMD |
1,643 | 1.17 |
|
Datasheet |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.1 A | 1.2A | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
HCM1A4020V2-1R0-RFIXED IND 1UH 5.6A 24 MOHM SMD |
2,351 | 1.03 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 5.6 A | 7A | Shielded | 24mOhm Max | - | 60MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
CDRH5D16F/LDNP-2R2NCFIXED IND 2.2UH 3.8A 27 MOHM SMD |
4,728 | 1.13 |
|
Datasheet |
CDRH5D16F/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±25% | 3.8 A | 1.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.071" (1.80mm) |
|
PM54-180M-RCFIXED IND 18UH 1.25A 150MOHM SMD |
1,744 | 1.10 |
|
Datasheet |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.25 A | 1.5A | Unshielded | 150mOhm | 30 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
PM105SB-820L-RCFIXED IND 82UH 790MA 280MOHM SMD |
2,789 | 1.12 |
|
Datasheet |
PM105SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±15% | 790 mA | - | Shielded | 280mOhm Max | 26 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" L x 0.390" W (9.90mm x 9.90mm) | 0.189" (4.80mm) |
|
RL822-102K-RCFIXED IND 1MH 160MA 2.96 OHM TH |
3,713 | 1.12 |
|
Datasheet |
RL822 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 160 mA | - | Unshielded | 2.96Ohm Max | 50 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
PM43-1R0M-RCFIXED IND 1UH 3.8A 33 MOHM SMD |
1,198 | 1.02 |
|
Datasheet |
PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.8 A | 5.5A | Unshielded | 33mOhm Max | 28 @ 7.96MHz | 150MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PF0560.683NLFIXED IND 68UH 1.42A 213MOHM SMD |
4,856 | 0.00 |
|
Datasheet |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 68 µH | ±25% | 1.42 A | 1.5A | Shielded | 213mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
SDR6603-220MFIXED IND 22UH 800MA 370MOHM SMD |
4,433 | 1.13 |
|
Datasheet |
SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 800 mA | 700mA | Unshielded | 370mOhm Max | 16 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDR6603-1R0MFIXED IND 1UH 2.9A 50 MOHM SMD |
1,851 | 1.13 |
|
Datasheet |
SDR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.9 A | 2.9A | Unshielded | 50mOhm Max | 20 @ 7.96MHz | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
EXL1V0603-1R0-RFIXED IND 1UH 18A 6.05 MOHM SMD |
2,282 | 1.09 |
|
Datasheet |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 18 A | 18A | Shielded | 6.05mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.118" (3.00mm) |
|
CD73NP-330MCFIXED IND 33UH 850MA 170MOHM SMD |
4,458 | 1.17 |
|
Datasheet |
CD73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 850 mA | - | Unshielded | 170mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.157" (4.00mm) |
|

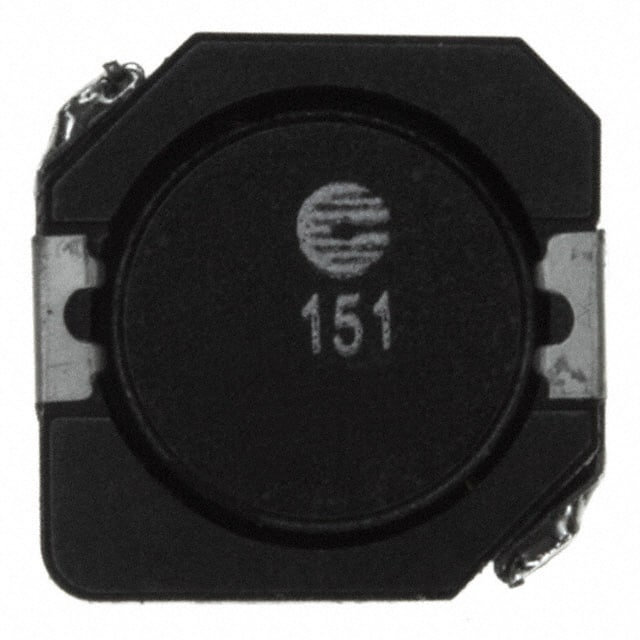

DR1040-151-RFIXED IND 150UH 850MA 430MOHM SM |
2,004 | 1.07 |
|
Datasheet |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 850 mA | 1.15A | Shielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

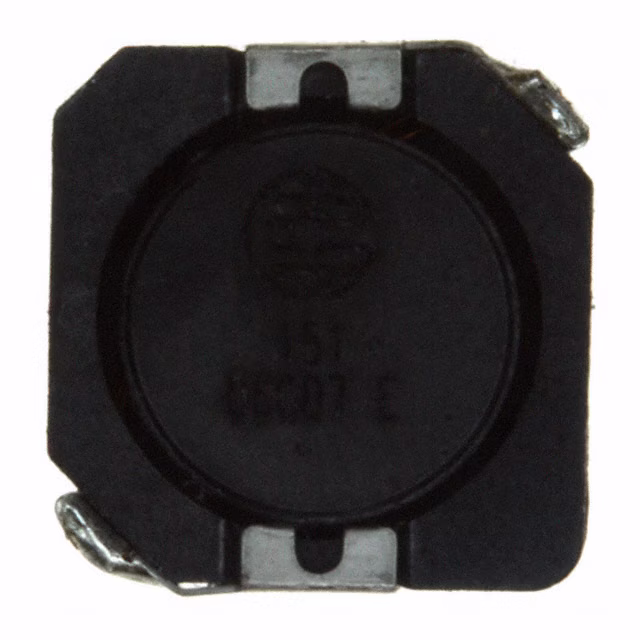

DR1030-151-RFIXED IND 150UH 680MA 700MOHM SM |
4,662 | 1.07 |
|
Datasheet |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 680 mA | 860mA | Shielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
IFLR4027EZERR15M01FIXED IND 155NH 50A 0.42MOHM SMD |
4,758 | 1.28 |
|
Datasheet |
IFLR-4027EZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 155 nH | ±20% | 50 A | 40A | Shielded | 0.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.402" W (7.00mm x 10.20mm) | 0.197" (5.00mm) |
|
SRP3012TA-R36MFIXED IND 360NH 6A 23 MOHM SMD |
4,804 | 1.15 |
|
Datasheet |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 360 nH | ±20% | 6 A | 8.5A | Shielded | 23mOhm Max | - | 125MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.047" (1.20mm) |
