Home > Products > Inductors, Coils, Chokes > Fixed Inductors

Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
1110-470K-RC FIXED IND 47UH 2.8A 62 MOHM TH Bourns Inc.	4,190	9.56	RFQ	Datasheet	1110	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	47 µH	±10%	2.8 A	-	Unshielded	62mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	0.660" Dia (16.76mm)	0.840" (21.34mm)
CTX10-10-52-R FIXED IND 10UH 16.9A 5.1 MOHM TH Eaton - Electronics Division	3,134	9.67	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	10 µH	±20%	16.9 A	20.9A	Unshielded	5.1mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.339" Dia x 0.843" W (34.00mm x 21.40mm)	-

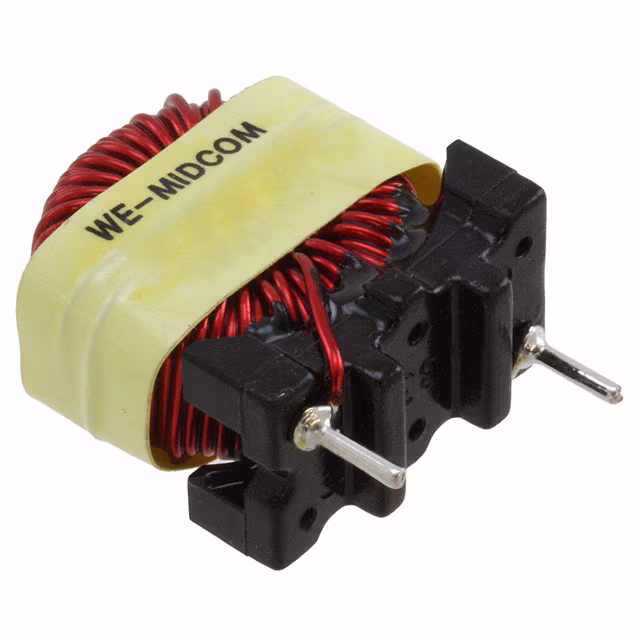

750312186 FIXED IND 696UH 2A 128 MOHM TH Würth Elektronik	2,565	11.24	RFQ	Datasheet	MID-LLIT	Radial, Vertical	Tray	Active	Toroidal	-	696 µH	±10%	2 A	-	-	128mOhm Max	-	-	-	-40°C ~ 125°C	1 kHz	-	Through Hole	-	0.820" L x 0.450" W (20.83mm x 11.43mm)	0.970" (24.64mm)
5718-RC FIXED IND 1.1MH 2.5A 330 MOHM TH Bourns Inc.	2,383	10.37	RFQ	Datasheet	5700	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	1.1 mH	±15%	2.5 A	-	Unshielded	330mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	1.812" Dia x 0.750" W (46.02mm x 19.05mm)	-

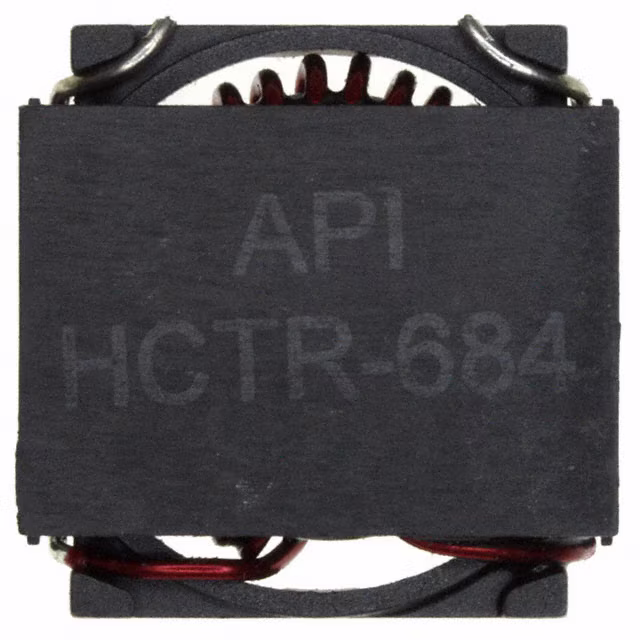

HCTR-684 FIXED IND 29UH 6.57A 25 MOHM SMD Delevan	3,221	9.13	RFQ	Datasheet	HCTR	Nonstandard	Bulk	Active	Toroidal	Iron Powder	29 µH	±25%	6.57 A	-	Shielded	25mOhm Max	30 @ 100kHz	16MHz	-	-30°C ~ 130°C	100 kHz	-	Surface Mount	-	0.945" L x 0.940" W (24.00mm x 23.88mm)	0.400" (10.16mm)
IHTH1500MZEB4R7M5A IHTH-1500MZ-5A 4.7 20% EB E2 Vishay Dale	3,182	14.02	RFQ	Datasheet	IHTH-1500MZ-5A	Radial, Vertical Cylinder, 4 Leads	Bulk	Active	-	Metal Composite	4.7 µH	±20%	60.6 A	90.1A	Shielded	1.19mOhm Max	-	9.2MHz	-	-55°C ~ 155°C	100 kHz	-	Through Hole	Radial	1.500" Dia (38.10mm)	0.502" (12.76mm)
PFC2723ER-421K03B-00 CHOKE COMMON MODE TDK Corporation	3,955	13.57	RFQ	Datasheet	PFC	Radial, Horizontal, 5 Leads	Bulk	Not For New Designs	Drum Core, Wirewound	Ferrite	420 µH	±10%	3.4 A	-	Unshielded	-	-	-	-	-30°C ~ 120°C	50 kHz	Choke Coils for PFC (Pin Terminal Type)	Through Hole	-	1.142" L x 0.984" W (29.00mm x 25.00mm)	1.024" (26.00mm)
PE-51513NL FIXED IND 144UH 10A 32 MOHM TH Pulse Electronics	1,115	13.48	RFQ	Datasheet	-	Radial, Vertical, 4 Leads (Open)	Tray	Active	Toroidal	-	144 µH	-	10 A	-	Unshielded	32mOhm Max	-	-	-	-40°C ~ 130°C	50 kHz	-	Through Hole	-	2.300" L x 1.110" W (58.42mm x 28.19mm)	2.300" (58.42mm)
1140-220K-RC FIXED IND 22UH 16.2A 9 MOHM TH Bourns Inc.	3,795	12.37	RFQ	Datasheet	1140	Radial	Bulk	Active	Drum Core, Wirewound	Ferrite	22 µH	±10%	16.2 A	43.7A	Unshielded	9mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Through Hole	-	1.500" Dia (38.10mm)	1.030" (26.16mm)
IHDM1008BCEV3R3M3A IHDM1008BC-3A 3.3 UH 20% EV Vishay Dale	4,709	12.49	RFQ	Datasheet	IHDM-1008BC-3A	Nonstandard	Tray	Active	Drum Core, Wirewound	Iron Powder	3.3 µH	±20%	50 A	90A	Unshielded	0.7mOhm Max	-	25MHz	-	-40°C ~ 180°C	100 kHz	-	Through Hole	-	1.005" L x 0.816" W (25.53mm x 20.73mm)	0.896" (22.75mm)
IHTH1500TZEB330M5A IHTH-1500TZ-5A 33 20% EB E2 Vishay Dale	4,571	14.45	RFQ	Datasheet	IHTH-1500TZ-5A	Radial, Vertical Cylinder, 4 Leads	Bulk	Active	-	Metal Composite	33 µH	±20%	28.7 A	56.6A	Shielded	5.1mOhm Max	-	2.6MHz	-	-55°C ~ 155°C	100 kHz	-	Through Hole	Radial	1.500" Dia (38.10mm)	0.780" (19.82mm)
PFC3519QM-231K07B-00 CHOKE COMMON MODE TDK Corporation	3,199	13.57	RFQ	Datasheet	PFC	Radial, Horizontal, 8 Leads	Bulk	Not For New Designs	Drum Core, Wirewound	Ferrite	230 µH	±10%	7.4 A	-	Unshielded	-	-	-	-	-30°C ~ 120°C	50 kHz	Choke Coils for PFC (Pin Terminal Type)	Through Hole	-	1.457" L x 1.181" W (37.00mm x 30.00mm)	0.827" (21.00mm)
PFC3819QM-181K09B-00 CHOKE COMMON MODE TDK Corporation	4,870	13.57	RFQ	Datasheet	PFC	Radial, Horizontal, 8 Leads	Bulk	Not For New Designs	Drum Core, Wirewound	Ferrite	180 µH	±10%	8.8 A	-	Unshielded	-	-	-	-	-30°C ~ 120°C	50 kHz	Choke Coils for PFC (Pin Terminal Type)	Through Hole	-	1.575" L x 1.319" W (40.00mm x 33.50mm)	0.827" (21.00mm)
IHV28BZ60 FIXED IND 60UH 28A 8.5 MOHM TH Vishay Dale	1,751	15.64	RFQ	Datasheet	IHV	Radial, Horizontal Cylinder	-	Active	-	Iron	60 µH	±10%	28 A	-	Unshielded	8.5mOhm Max	-	1.9MHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-	1.020" Dia x 2.450" L (25.91mm x 62.23mm)	-

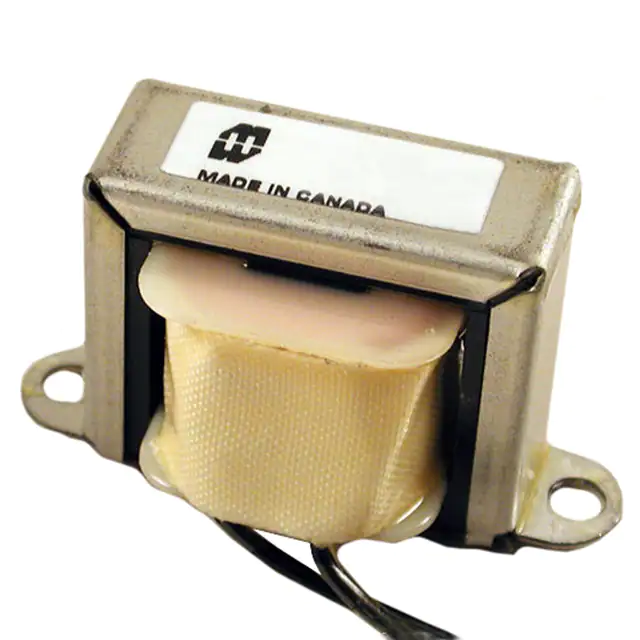

157L FIXED IND 14H 75MA 429 OHM CHASS Hammond Manufacturing	3,351	31.77	RFQ	Datasheet	157	Nonstandard	Bulk	Active	-	-	14 H	±15%	75 mA	-	Unshielded	429Ohm	-	-	-	-	-	-	Chassis Mount	-	3.250" L x 1.750" W (82.55mm x 44.45mm)	2.000" (50.80mm)
CH-8 FIXED IND 30MH 8A 300 MOHM CHASS Signal Transformer	1,148	68.79	RFQ	Datasheet	-	Nonstandard	Box	Active	-	-	30 mH	-	8 A	-	Unshielded	300mOhm	-	-	-	-	-	-	Chassis Mount	-	4.126" L x 3.626" W (104.80mm x 92.10mm)	3.500" (88.90mm)
CH-25 FIXED IND 5MH 25A 25 MOHM CHASS Signal Transformer	3,488	160.86	RFQ	Datasheet	-	Nonstandard	Box	Active	-	-	5 mH	-	25 A	-	Unshielded	25mOhm	-	-	-	-	-	-	Chassis Mount	-	5.252" L x 4.752" W (133.40mm x 120.70mm)	4.437" (112.70mm)
193JP FIXED IND 10H 200MA 79 OHM CHASS Hammond Manufacturing	4,798	224.68	RFQ	Datasheet	193	Nonstandard, 2 Lead	Box	Active	Wirewound	-	10 H	±15%	200 mA	-	Unshielded	79Ohm	-	-	-	-40°C ~ 65°C	-	-	Chassis Mount	-	3.880" L x 3.310" W (98.55mm x 84.07mm)	4.250" (107.95mm)
193NP FIXED IND 3H 500MA 36 OHM CHASS Hammond Manufacturing	4,997	215.30	RFQ	Datasheet	193	Nonstandard, 2 Lead	Bulk	Active	Wirewound	-	3 H	±15%	500 mA	-	Unshielded	36Ohm	-	-	-	-40°C ~ 65°C	-	-	Chassis Mount	-	3.880" L x 3.310" W (98.55mm x 84.07mm)	4.250" (107.95mm)
193CP FIXED IND 20H 100MA 184 OHM CHAS Hammond Manufacturing	2,421	224.68	RFQ	Datasheet	193	Nonstandard, 2 Lead	Box	Active	Wirewound	-	20 H	±15%	100 mA	-	Unshielded	184Ohm	-	-	-	-40°C ~ 65°C	-	-	Chassis Mount	-	3.880" L x 3.310" W (98.55mm x 84.07mm)	4.250" (107.95mm)

Total 147749 Record«Prev 1... 2174 2175 2176 217721782179 2180 2181...7388 Next»
