Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1C1-201208-4R7MFIXED IND 4.7UH 1.5A 325 MOHM |
2,577 | 0.00 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 1.5 A | 1.4A | Shielded | 325mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
SRU1038-151YFIXED IND 150UH 900MA 358MOHM SM |
20,700 | 1.07 |
|
Datasheet |
SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 900 mA | 800mA | Shielded | 358mOhm | 20 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
FP1008R1-R220-RFIXED IND 220NH 79A 0.17MOHM SMD |
12,045 | 1.59 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 79 A | 56A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
B82442T1106K050FIXED IND 10MH 46MA 112 OHM SMD |
6,983 | 1.30 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 46 mA | 81mA | Unshielded | 112Ohm Max | 25 @ 79.6kHz | 500kHz | AEC-Q200 | -55°C ~ 125°C | 79.6 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
IHLP1212AEER1R5M11FIXED IND 1.5UH 2.7A 46 MOHM SMD |
5,118 | 1.42 |
|
Datasheet |
IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.7 A | 4.5A | Shielded | 46mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.059" (1.50mm) |
|
ETQ-P4M150KFNFIXED IND 15UH 4.2A 70.18MOHM SM |
2,633 | 1.17 |
|
Datasheet |
PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 4.2 A | 6.7A | Shielded | 70.18mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|
|
ETQ-P4M3R3KFNFIXED IND 3.3UH 9.2A 14.41 MOHM |
2,543 | 1.17 |
|
Datasheet |
PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 9.2 A | 12A | Shielded | 14.41mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|
TFM322512ALVA2R2MTAAFIXED IND 2.2UH 2.7A 77 MOHM SMD |
1,883 | 1.12 |
|
Datasheet |
TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.7 A | 3.3A | Shielded | 77mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SRU1048-6R8YFIXED IND 6.8UH 4.8A 13.6MOHM SM |
42,930 | 1.09 |
|
Datasheet |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.8 A | 4.1A | Shielded | 13.6mOhm | 10 @ 7.96MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
CDRH2D18/LDNP-100NCFIXED IND 10UH 1A 180 MOHM SMD |
42,066 | 1.13 |
|
Datasheet |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1 A | 430mA | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH74NP-101MC-BFIXED IND 100UH 600MA 610MOHM SM |
36,709 | 1.13 |
|
Datasheet |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 600 mA | - | Shielded | 610mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SRU1048-330YFIXED IND 33UH 2.1A 63 MOHM SMD |
21,441 | 1.09 |
|
Datasheet |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.1 A | 1.7A | Shielded | 63mOhm | 24 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
CDRH2D18/LDNP-4R7NCFIXED IND 4.7UH 1.65A 78MOHM SMD |
17,461 | 1.13 |
|
Datasheet |
CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.65 A | 630mA | Shielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CDRH74NP-680MC-BFIXED IND 68UH 690MA 380MOHM SMD |
10,517 | 1.13 |
|
Datasheet |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 690 mA | - | Shielded | 380mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SRU1048-8R2YFIXED IND 8.2UH 4.6A 15 MOHM SMD |
10,180 | 1.09 |
|
Datasheet |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 4.6 A | 3.8A | Shielded | 15mOhm | 8 @ 7.96MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048-151YFIXED IND 150UH 1A 235 MOHM SMD |
10,155 | 1.09 |
|
Datasheet |
SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1 A | 800mA | Shielded | 235mOhm | 24 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
PA4341.103NLTFIXED IND 10UH 3.5A 85 MOHM SMD |
9,135 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 3.5 A | 6A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
SDR1105-101KLFIXED IND 100UH 1.5A 320MOHM SMD |
8,248 | 1.10 |
|
Datasheet |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.5 A | 2.8A | Unshielded | 320mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
|
PA4341.102NLTFIXED IND 1UH 11A 10 MOHM SMD |
7,948 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|

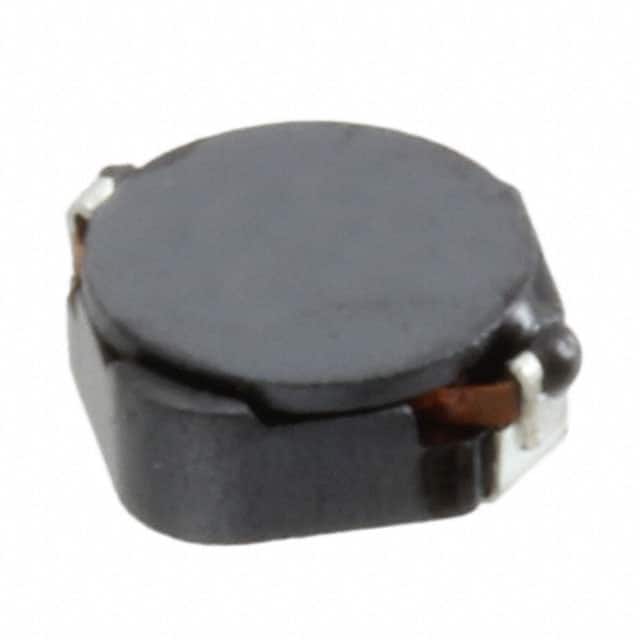

CDRH4D16FB/NP-100MCFIXED IND 10UH 1.2A 118 MOHM SMD |
7,261 | 1.13 |
|
Datasheet |
CDRH4D16FB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.2 A | 800mA | Shielded | 118mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
