Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-FB3R9KFFIXED IND 3.9UH 360MA 740MOHM SM |
3,549 | 0.46 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±10% | 360 mA | - | Unshielded | 740mOhm Max | 50 @ 7.96MHz | 36MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB5R6KFFIXED IND 5.6UH 330MA 880MOHM SM |
1,525 | 0.46 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 5.6 µH | ±10% | 330 mA | - | Unshielded | 880mOhm Max | 50 @ 5MHz | 30MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB8R2KFFIXED IND 8.2UH 250MA 1.6OHM SMD |
3,978 | 0.46 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±10% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 5MHz | 24MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB120JFFIXED IND 12UH 225MA 1.9 OHM SMD |
2,317 | 0.46 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±5% | 225 mA | - | Unshielded | 1.9Ohm Max | 50 @ 5MHz | 20MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB180JFFIXED IND 18UH 205MA 2.3 OHM SMD |
2,652 | 0.00 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 18 µH | ±5% | 205 mA | - | Unshielded | 2.3Ohm Max | 50 @ 5MHz | 16MHz | - | -20°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB820JFFIXED IND 82UH 110MA 5.9 OHM SMD |
1,310 | 0.00 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 110 mA | - | Unshielded | 5.9Ohm Max | 40 @ 2.52MHz | 7.5MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB121JFFIXED IND 120UH 100MA 10 OHM SMD |
1,596 | 0.46 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±5% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 1.5MHz | 6.1MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB221JFFIXED IND 220UH 85MA 13 OHM SMD |
3,047 | 0.46 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±5% | 85 mA | - | Unshielded | 13Ohm Max | 40 @ 796kHz | 4.5MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB271JFFIXED IND 270UH 80MA 14 OHM SMD |
1,449 | 0.00 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 µH | ±5% | 80 mA | - | Unshielded | 14Ohm Max | 40 @ 796kHz | 4.1MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB331JFFIXED IND 330UH 75MA 16 OHM SMD |
1,104 | 0.46 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | ±5% | 75 mA | - | Unshielded | 16Ohm Max | 40 @ 796kHz | 3.7MHz | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
NR6012T2R5NEFIXED IND 2.5UH 1.73A 108MOHM SM |
4,172 | 0.21 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 1.73 A | 2.1A | Shielded | 108mOhm Max | - | 45MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NR6012T5R3MEFIXED IND 5.3UH 1.4A 150MOHM SMD |
4,550 | 0.21 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 5.3 µH | ±20% | 1.4 A | 1.5A | Shielded | 150mOhm Max | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NR6012T6R8MEFIXED IND 6.8UH 1.18A 198MOHM SM |
1,236 | 0.21 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.18 A | 1.3A | Shielded | 198mOhm Max | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
NR6012T220MEFIXED IND 22UH 630MA 636MOHM SMD |
3,530 | 0.21 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 630 mA | 760mA | Shielded | 636mOhm Max | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
PE-1206CD100JTTFIXED IND 10NH 1A 80 MOHM SMD |
4,940 | 0.17 |
|
- |
1206CD | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 40 @ 300MHz | 4GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|
AISC-0805F-4R7J-TFIXED IND 4.7UH 140MA 2.8OHM SMD |
1,112 | 0.00 |
|
Datasheet |
AISC-0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 140 mA | - | Unshielded | 2.8Ohm Max | 15 @ 7.9MHz | 43MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
NR6012T150MEFIXED IND 15UH 790MA 396MOHM SMD |
1,740 | 0.21 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 790 mA | 800mA | Shielded | 396mOhm Max | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

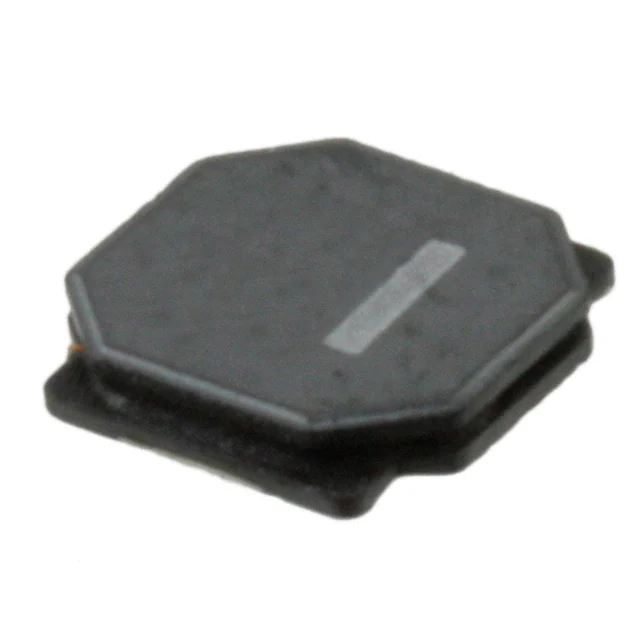

NR6012T330MEFIXED IND 33UH 530MA 840MOHM SMD |
4,364 | 0.21 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 530 mA | 590mA | Shielded | 840mOhm Max | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
AISC-0805F-4R7G-TFIXED IND 4.7UH 140MA 2.8OHM SMD |
3,601 | 0.20 |
|
Datasheet |
AISC-0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±2% | 140 mA | - | Unshielded | 2.8Ohm Max | 15 @ 7.9MHz | 43MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
AISC-0805F-680G-TFIXED IND 68UH 40MA 17.5 OHM SMD |
3,915 | 0.20 |
|
Datasheet |
AISC-0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±2% | 40 mA | - | Unshielded | 17.5Ohm Max | 8 @ 2.5MHz | 11MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
