Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74479763147AFIXED IND 470NH 1.5A 112.5 MOHM |
1,266 | 0.00 |
|
Datasheet |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±20% | 1.5 A | 1.5A | Unshielded | 112.5mOhm Max | 10 @ 1MHz | 190MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
CDRH73NP-220MC-BFIXED IND 22UH 1.07A 190MOHM SMD |
2,736 | 0.57 |
|
Datasheet |
CDRH73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 1.07 A | - | Shielded | 190mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
CDRH73NP-471MC-BFIXED IND 470UH 240MA 4.18OHM SM |
4,883 | 0.57 |
|
Datasheet |
CDRH73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 240 mA | - | Shielded | 4.18Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.134" (3.40mm) |
|
|
CDRH5D28RBH125NP-150MCFIXED IND 15UH 1.24A 148MOHM SMD |
3,208 | 0.65 |
|
Datasheet |
CDRH5D28RB/H125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.24 A | 2.08A | Shielded | 148mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
SRR1005-3R0MFIXED IND 3UH 2.9A 30 MOHM SMD |
4,390 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 2.9 A | 5A | Shielded | 30mOhm Max | 25 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-7R0MFIXED IND 7UH 2.2A 55 MOHM SMD |
3,327 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±20% | 2.2 A | 3.2A | Shielded | 55mOhm Max | 22 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-220MFIXED IND 22UH 1.4A 100 MOHM SMD |
2,466 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.9A | Shielded | 100mOhm Max | 42 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-121KFIXED IND 120UH 600MA 460MOHM SM |
1,348 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 600 mA | 800mA | Shielded | 460mOhm Max | 30 @ 796kHz | 7.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-181KFIXED IND 180UH 500MA 700MOHM SM |
2,343 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 500 mA | 650mA | Shielded | 700mOhm Max | 28 @ 796kHz | 5.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-1R5MFIXED IND 1.5UH 3.6A 20 MOHM SMD |
2,672 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.6 A | 7A | Shielded | 20mOhm Max | 25 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-270YFIXED IND 27UH 1.3A 120 MOHM SMD |
1,333 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±15% | 1.3 A | 1.6A | Shielded | 120mOhm Max | 40 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-271KFIXED IND 270UH 400MA 1.1OHM SMD |
1,648 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 400 mA | 520mA | Shielded | 1.1Ohm Max | 30 @ 796kHz | 4.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-390YFIXED IND 39UH 1.05A 180MOHM SMD |
3,242 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 1.05 A | 1.4A | Shielded | 180mOhm Max | 40 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-560YFIXED IND 56UH 900MA 210MOHM SMD |
2,268 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±15% | 900 mA | 1.1A | Shielded | 210mOhm Max | 35 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
SRR1005-820YFIXED IND 82UH 750MA 380MOHM SMD |
4,613 | 0.62 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±15% | 750 mA | 950mA | Shielded | 380mOhm Max | 35 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
.jpg)
|
74479887222CFIXED IND 2.2UH 1.6A 110MOHM SMD |
3,459 | 0.79 |
|
Datasheet |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.6 A | 1.5A | Shielded | 110mOhm | 20 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ELJ-PB820KFFIXED IND 82UH 160MA 3.5 OHM SMD |
3,264 | 0.00 |
|
Datasheet |
PB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±10% | 160 mA | - | Unshielded | 3.5Ohm Max | 10 @ 2.52MHz | 6.5MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

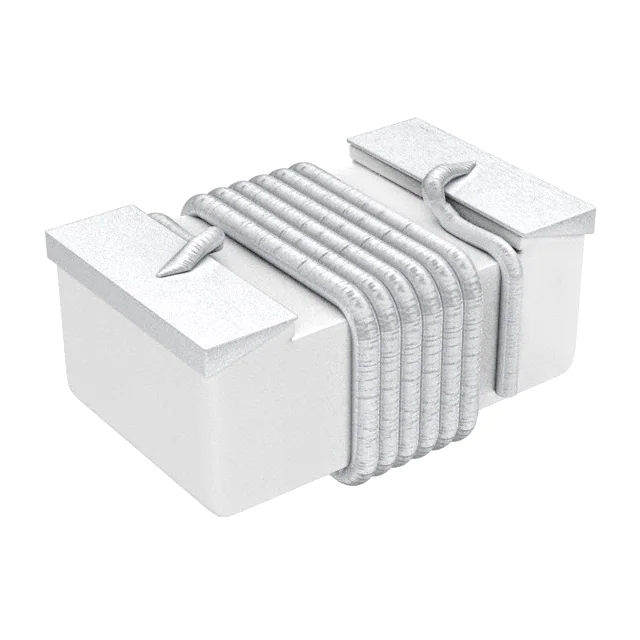

55081003400FIXED IND 10NH 700MA 60 MOHM SMD |
1,479 | 0.00 |
|
Datasheet |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 700 mA | - | Unshielded | 60mOhm Max | 40 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
|
55084703400FIXED IND 47NH 500MA 130MOHM SMD |
4,603 | 0.00 |
|
Datasheet |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 130mOhm Max | 45 @ 200MHz | 1.9GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
TYS252010L100M-10FIXED IND 10UH 500MA 1.092OHM SM |
1,578 | 0.20 |
|
Datasheet |
TYS252010L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 500 mA | 650mA | Shielded | 1.092Ohm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
