Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM628S-390-RCFIXED IND 39UH 1A 195 MOHM SMD |
2,024 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±30% | 1 A | 750mA | Shielded | 195mOhm Max | 10 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-3R0-RCFIXED IND 3UH 3A 28 MOHM SMD |
2,956 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±30% | 3 A | 2.6A | Shielded | 28mOhm Max | 9 @ 7.96MHz | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-3R9-RCFIXED IND 3.9UH 2.45A 32MOHM SMD |
3,708 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 2.45 A | 2.3A | Shielded | 32mOhm Max | 9 @ 7.96MHz | 47MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-560-RCFIXED IND 56UH 850MA 260MOHM SMD |
4,673 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 850 mA | 650mA | Shielded | 260mOhm Max | 10 @ 796kHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-5R0-RCFIXED IND 5UH 2.4A 36 MOHM SMD |
3,241 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±30% | 2.4 A | 2.1A | Shielded | 36mOhm Max | 8 @ 2.52MHz | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-680-RCFIXED IND 68UH 800MA 300MOHM SMD |
1,186 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 800 mA | 600mA | Shielded | 300mOhm Max | 11 @ 796kHz | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-6R0-RCFIXED IND 6UH 2.3A 40 MOHM SMD |
3,210 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±30% | 2.3 A | 2A | Shielded | 40mOhm Max | 9 @ 7.96MHz | 48MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-7R3-RCFIXED IND 7.3UH 2.2A 52 MOHM SMD |
3,489 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.3 µH | ±30% | 2.2 A | 1.85A | Shielded | 52mOhm Max | 6 @ 7.96MHz | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-820-RCFIXED IND 82UH 700MA 400MOHM SMD |
2,817 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 700 mA | 560mA | Shielded | 400mOhm Max | 9 @ 796kHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-8R6-RCFIXED IND 8.6UH 2.1A 56 MOHM SMD |
2,619 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.6 µH | ±30% | 2.1 A | 1.82A | Shielded | 56mOhm Max | 8 @ 2.52MHz | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
B82133A5302M000FIXED IND 10UH 3A 77 MOHM TH |
3,646 | 0.00 |
|
Datasheet |
B82133 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±20% | 3 A | - | Unshielded | 77mOhm | - | 69MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | - |
|
SRR1806-2R2MFIXED IND 2.2UH SMD |
1,370 | 0.68 |
|
Datasheet |
SRR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|
|
SRR1806-7R0MFIXED IND 7UH SMD |
2,914 | 0.68 |
|
Datasheet |
SRR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.280" (7.10mm) |
|

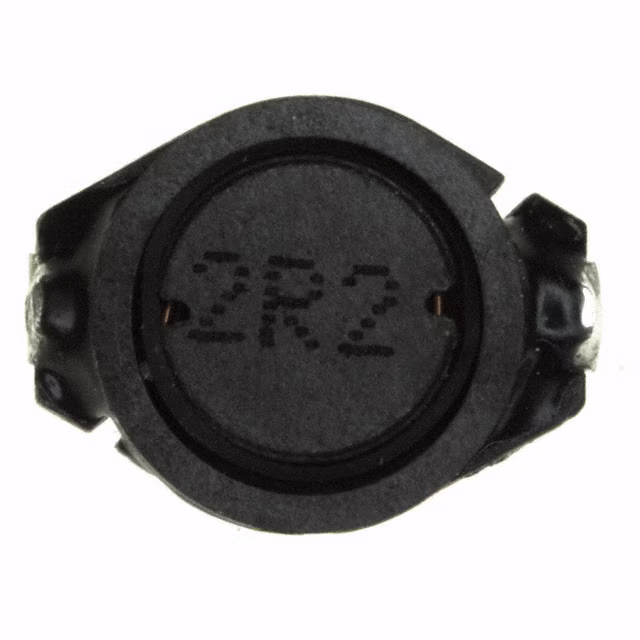

SDS130R-222NFIXED IND 2.2UH 3.5A 45 MOHM SMD |
1,462 | 0.00 |
|
Datasheet |
SDS130R | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | - | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
SCIHP1040-100MFIXED IND 10UH 5A 42 MOHM SMD |
1,567 | 0.61 |
|
Datasheet |
SCIHP1040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5 A | 8A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
SCIHP1040-220MFIXED IND 22UH 3.5A 92 MOHM SMD |
2,449 | 0.61 |
|
Datasheet |
SCIHP1040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.5 A | 6A | Shielded | 92mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
SCIHP1040-2R5MFIXED IND 2.5UH 12A 9.5 MOHM SMD |
2,544 | 0.61 |
|
Datasheet |
SCIHP1040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.5 µH | ±20% | 12 A | 16A | Shielded | 9.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
SCIHP1040-3R3MFIXED IND 3.3UH 11A 11.5MOHM SMD |
4,373 | 0.61 |
|
Datasheet |
SCIHP1040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 11 A | 16A | Shielded | 11.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
SCIHP1040-4R7MFIXED IND 4.7UH 8A 16 MOHM SMD |
1,235 | 0.61 |
|
Datasheet |
SCIHP1040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 8 A | 14A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
SCIHP1040-5R6MFIXED IND 5.6UH 8A 23.5 MOHM SMD |
4,056 | 0.61 |
|
Datasheet |
SCIHP1040 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 8 A | 12A | Shielded | 23.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
