Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLCV25T-4R7M-EFRDFIXED IND 4.7UH 500MA 684MOHM SM |
2,405 | 0.31 |
|
Datasheet |
NLCV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 500 mA | - | Unshielded | 684mOhm Max | 10 @ 7.96MHz | 46MHz | AEC-Q200 | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
-BR-Series.jpg)
|
BRC2518T4R7MFIXED IND 4.7UH 750MA 230MOHM SM |
2,402 | 0.32 |
|
Datasheet |
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 750 mA | 1.25A | Unshielded | 230mOhm | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
AISC-0805-1R0G-TFIXED IND 1UH 150MA 2.5 OHM SMD |
2,356 | 0.32 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±2% | 150 mA | - | Unshielded | 2.5Ohm Max | 20 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
LSXND3030QKT1R0NNGFIXED IND 1UH 2.1A 36 MOHM SMD |
2,271 | 0.31 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 2.1A | Shielded | 36mOhm Max | - | 100MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
-2,70mm.jpg)
|
CBC3225T150KRVFIXED IND 15UH 590MA 253.5 MOHM |
2,242 | 0.33 |
|
- |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 590 mA | 730mA | Unshielded | 253.5mOhm Max | - | 20MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
-1,0.jpg)
|

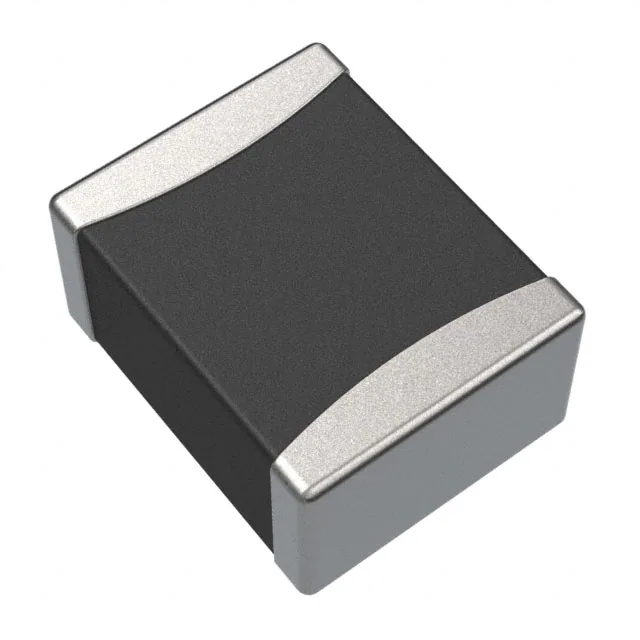

CVH201610A-2R2MFIXED IND 2.2UH 1.2A 137.5 MOHM |
2,097 | 0.31 |
|
Datasheet |
CVH201610A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 137.5mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
AISC-1008-R15J-TFIXED IND 150NH 580MA 620MOHM SM |
2,091 | 0.32 |
|
Datasheet |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 580 mA | - | Unshielded | 620mOhm Max | 50 @ 100MHz | 800MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-0805-R15G-TFIXED IND 150NH 400MA 560MOHM SM |
2,068 | 0.32 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±2% | 400 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 920MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
CBC3225T100MRVFIXED IND 10UH 720MA 172.9 MOHM |
2,063 | 0.33 |
|
- |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 720 mA | 900mA | Unshielded | 172.9mOhm Max | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
AISC-0603HP-15NJ-TFIXED IND 15NH 1.1A 85 MOHM SMD |
2,004 | 0.33 |
|
Datasheet |
AISC-0603HP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1.1 A | - | Unshielded | 85mOhm Max | 38 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
VLS201612ET-2R2MFIXED IND 2.2UH 1.05A 195MOHM SM |
2,000 | 0.44 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.05 A | 1.05A | Shielded | 195mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
-Unshielded-Inductor.jpg)
|
IMC0805ERR12J01FIXED IND 120NH 500MA 480MOHM SM |
1,995 | 0.32 |
|
Datasheet |
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 500 mA | - | Unshielded | 480mOhm Max | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 105°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LSXNE3030MKT330MNINDUCTOR POWER 33UH SMD |
1,936 | 0.32 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 450 mA | 360mA | Shielded | 1.152Ohm Max | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
AISC-0805-R47G-TFIXED IND 470NH 250MA 1.72OHM SM |
1,905 | 0.32 |
|
Datasheet |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 250 mA | - | Unshielded | 1.72Ohm Max | 33 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
IMC0805ER6N8J01FIXED IND 6.8NH 600MA 60MOHM SMD |
1,890 | 0.32 |
|
Datasheet |
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 600 mA | - | Unshielded | 60mOhm Max | 60 @ 1GHz | 5.5GHz | - | -40°C ~ 105°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
744760082AFIXED IND 8.2NH 600MA 60MOHM SMD |
1,868 | 0.30 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±5% | 600 mA | - | Unshielded | 60mOhm Max | 60 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LQW2UASR47G00LFIXED IND 470NH 470MA 1.19OHM SM |
1,840 | 0.25 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±2% | 470 mA | - | Unshielded | 1.19Ohm Max | 45 @ 100MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
IMC1008ER15NJFIXED IND 15NH 1A 80 MOHM SMD |
1,819 | 0.32 |
|
Datasheet |
IMC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 2.7GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
WPN252010U1R0MTFIXED IND 1UH 3.1A 50 MOHM SMD |
1,734 | 0.46 |
|
Datasheet |
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.1 A | 4.6A | Shielded | 50mOhm Max | - | 54MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQW2UASR39G00LFIXED IND 390NH 470MA 1.12OHM SM |
1,720 | 0.25 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±2% | 470 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
