Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD25-220-RFIXED IND 22UH 1.34A 147.8 MOHM |
8,613 | 2.85 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.34 A | 857mA | Shielded | 147.8mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
IHLP6767GZER3R3M11FIXED IND 3.3UH 35A 2.93MOHM SMD |
3,204 | 4.71 |
|
Datasheet |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 35 A | 27A | Shielded | 2.93mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

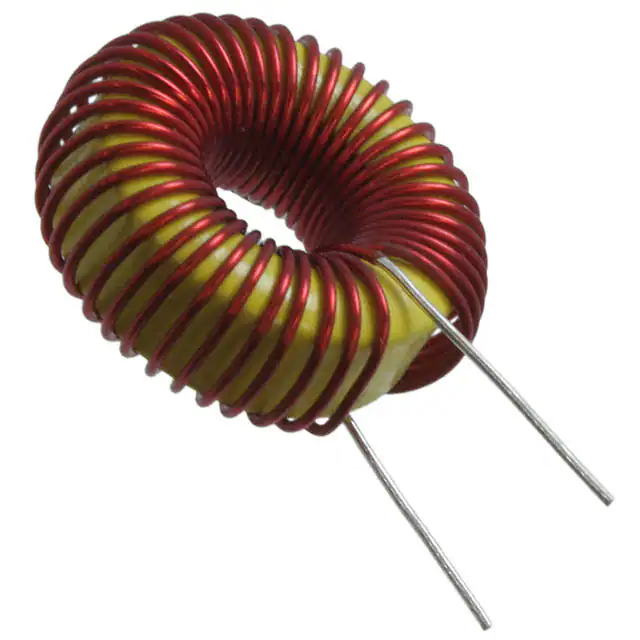

PE-92102NLFIXED IND 100UH 2.6A 100 MOHM TH |
1,668 | 3.18 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 2.6 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
|

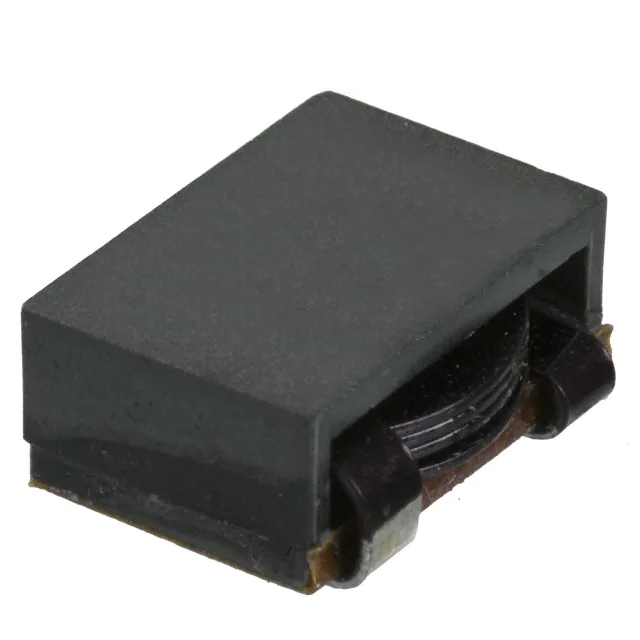

B82559A0222A013FIXED IND 2.15UH 15A 3.2MOHM SMD |
1,223 | 4.06 |
|
Datasheet |
ERU13 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.15 µH | ±10% | 15 A | 15A | Shielded | 3.2mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.512" L x 0.421" W (13.00mm x 10.70mm) | 0.195" (4.95mm) |
|

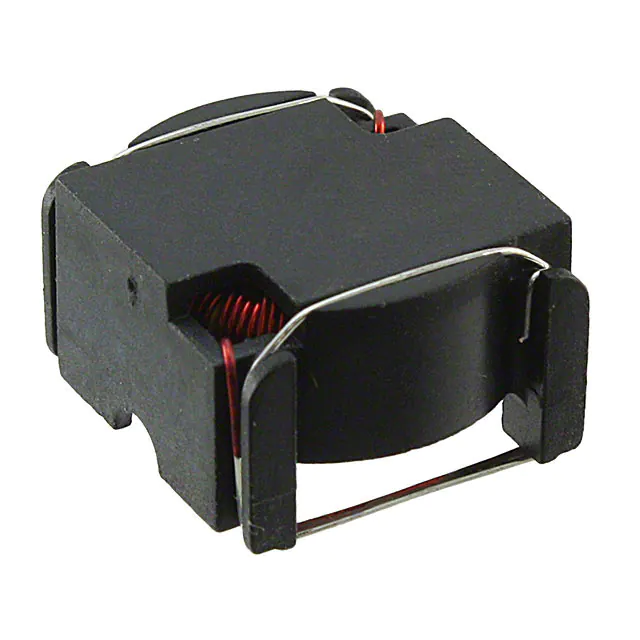

PE-53831SNLTFIXED IND 53UH 1.87A 130MOHM SMD |
1,756 | 3.15 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 53 µH | ±20% | 1.87 A | - | Shielded | 130mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|

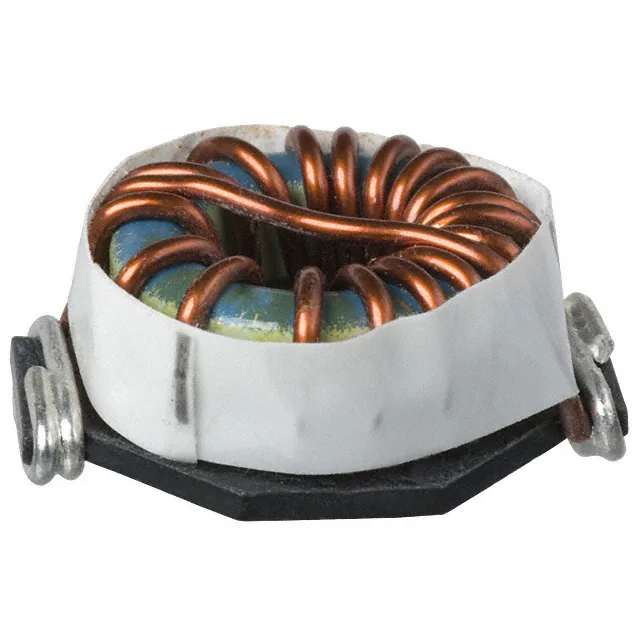

PM2110-221K-RCFIXED IND 220UH 3.5A 74 MOHM SMD |
4,518 | 3.36 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 220 µH | ±10% | 3.5 A | - | Unshielded | 74mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|

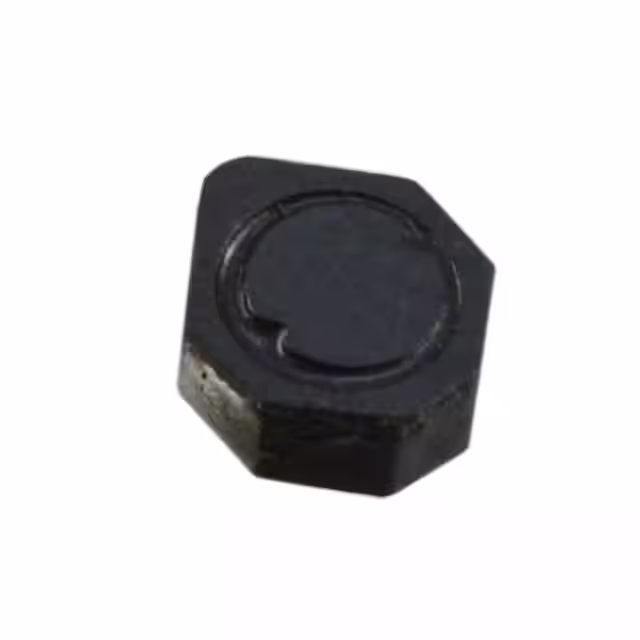

SD3114-100-RFIXED IND 10UH 570MA 458MOHM SMD |
6,412 | 2.34 |
|
Datasheet |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 570 mA | 780mA | Shielded | 458mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|

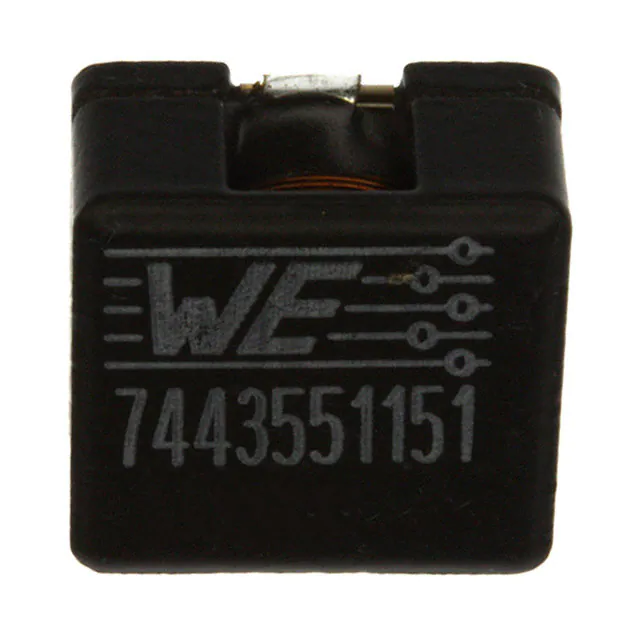

7443551151FIXED IND 15.4UH 9A 14.8MOHM SMD |
13,861 | 3.48 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15.4 µH | ±20% | 9 A | 8A | Shielded | 14.8mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

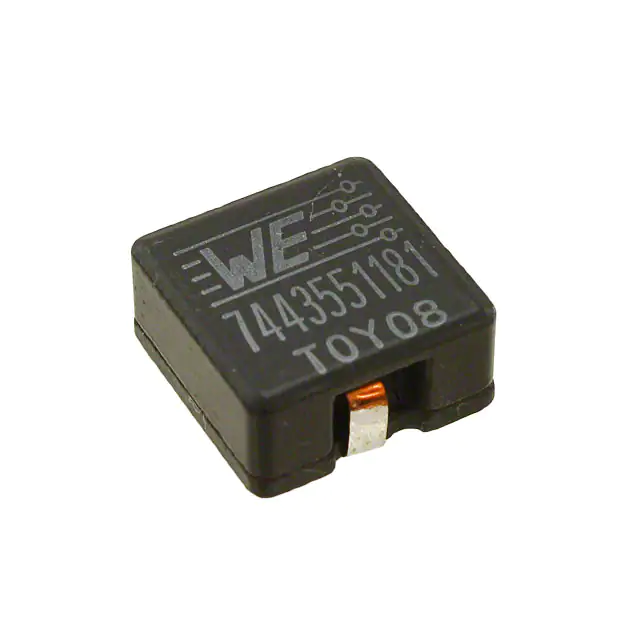

7443551181FIXED IND 18UH 7.5A 22 MOHM SMD |
3,763 | 3.48 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 7.5 A | 7.5A | Shielded | 22mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

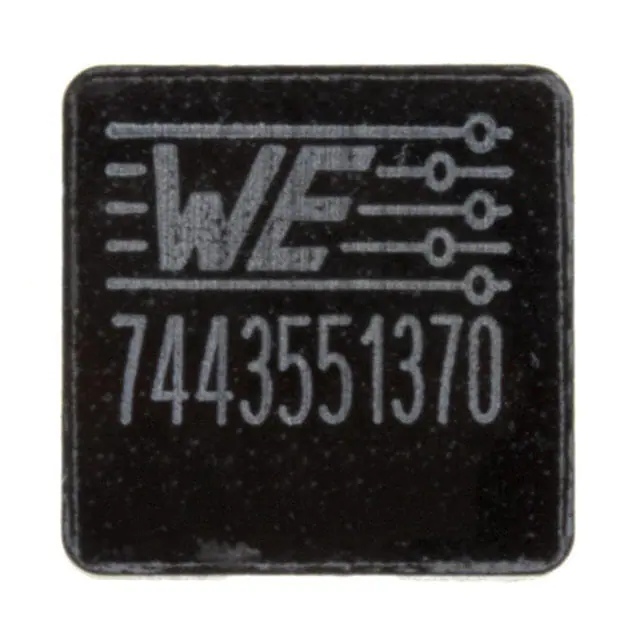

7443551370FIXED IND 3.7UH 17A 4.9 MOHM SMD |
3,036 | 3.48 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.7 µH | ±20% | 17 A | 16A | Shielded | 4.9mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

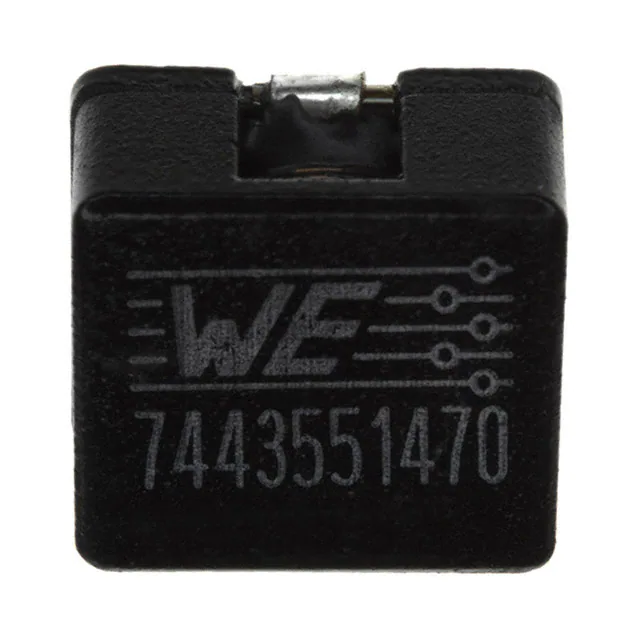

7443551470FIXED IND 4.7UH 13A 7 MOHM SMD |
2,907 | 3.48 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 13 A | 15A | Shielded | 7mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

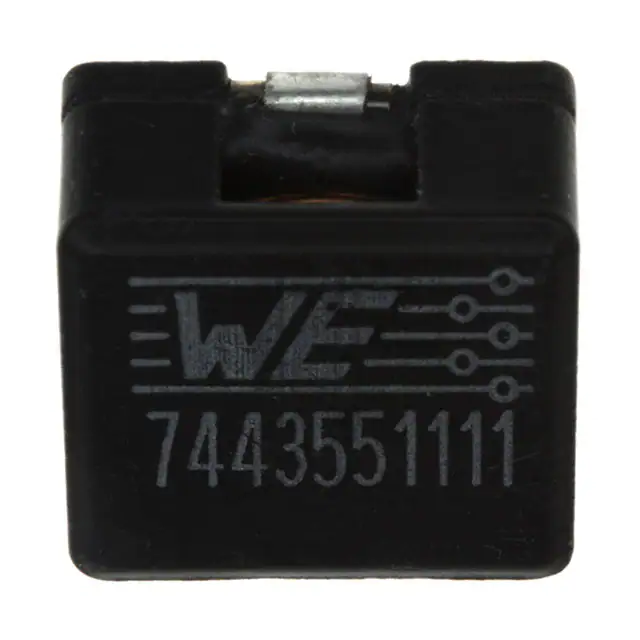

7443551111FIXED IND 11.3UH 11A 9.1MOHM SMD |
1,989 | 3.48 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 11.3 µH | ±20% | 11 A | 9.5A | Shielded | 9.1mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

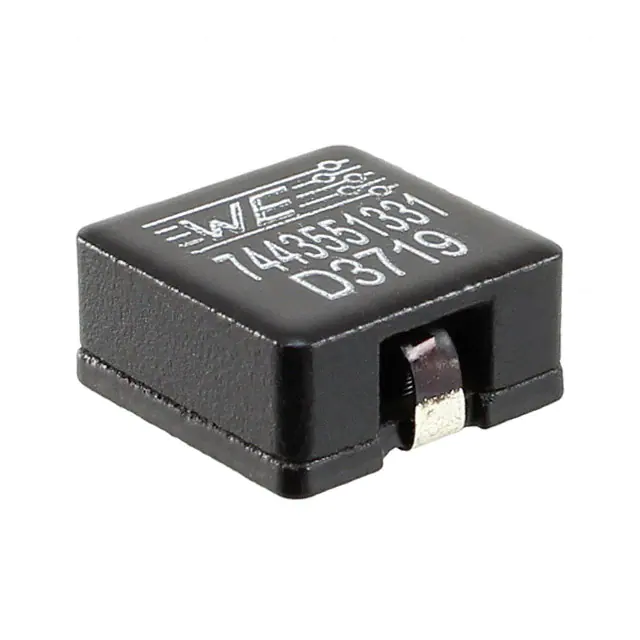

7443551331FIXED IND 33UH 5.5A 30.5MOHM SMD |
1,122 | 3.48 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 5.5 A | 5.5A | Shielded | 30.5mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

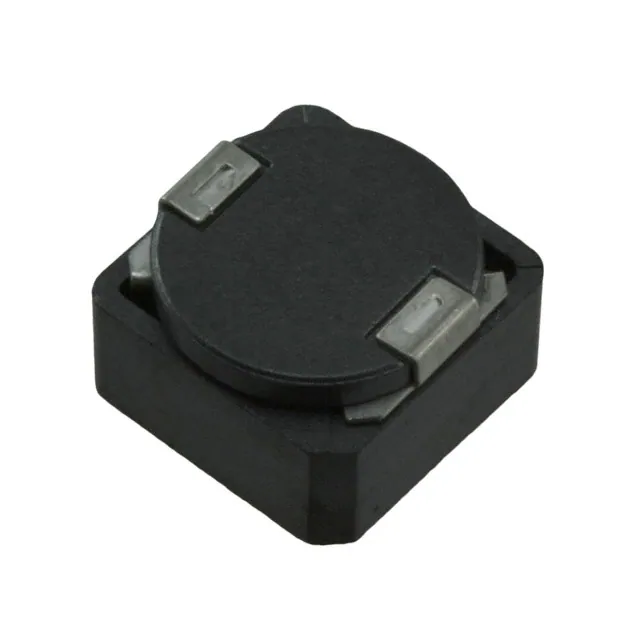

7447798720FIXED IND 7.2UH 7.9A 12.8MOHM SM |
7,337 | 3.57 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 7.2 µH | ±30% | 7.9 A | 6A | Shielded | 12.8mOhm Max | - | 31MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798111FIXED IND 11UH 6.9A 15.8MOHM SMD |
2,923 | 3.57 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 11 µH | ±20% | 6.9 A | 5.3A | Shielded | 15.8mOhm Max | - | 25MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|

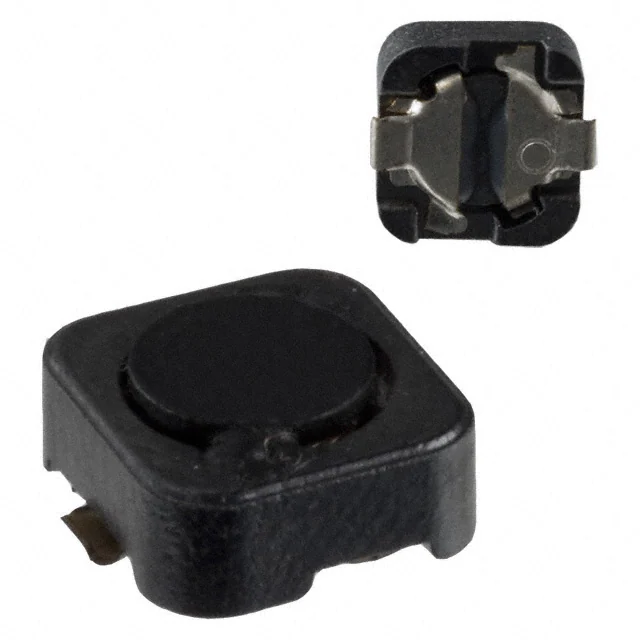

SPD62R-473MFIXED IND 47UH 700MA 750MOHM SMD |
8,559 | 3.21 |
|
Datasheet |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 700 mA | 700mA | Shielded | 750mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SPD62R-472MFIXED IND 4.7UH 2A 150 MOHM SMD |
7,481 | 3.21 |
|
Datasheet |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2 A | 2A | Shielded | 150mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SPD62R-223MFIXED IND 22UH 1A 400 MOHM SMD |
741 | 3.21 |
|
Datasheet |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 1A | Shielded | 400mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
VLBUC12060120R10LF3FIXED IND 105NH 125A 0.125MOHM S |
408 | 0.00 |
|
Datasheet |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 105 nH | ±15% | 70 A | 125A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|

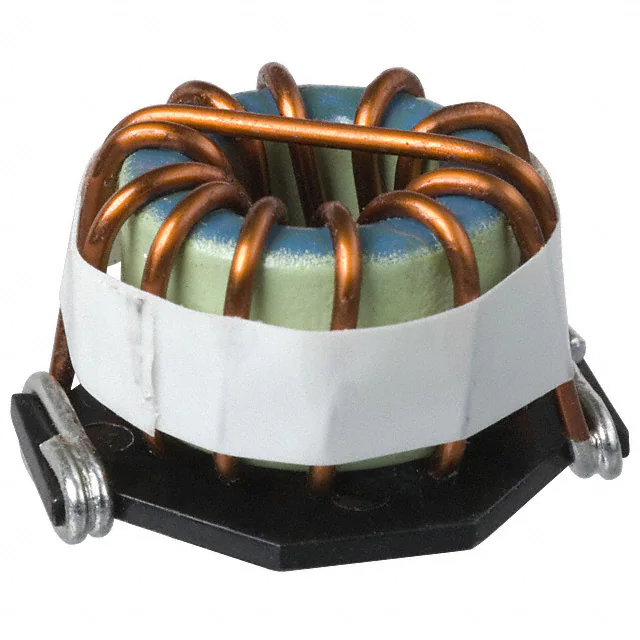

PM2120-221K-RCFIXED IND 220UH 5A 52 MOHM SMD |
2,655 | 3.67 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 220 µH | ±10% | 5 A | - | Unshielded | 52mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.830" (21.08mm) |
