Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

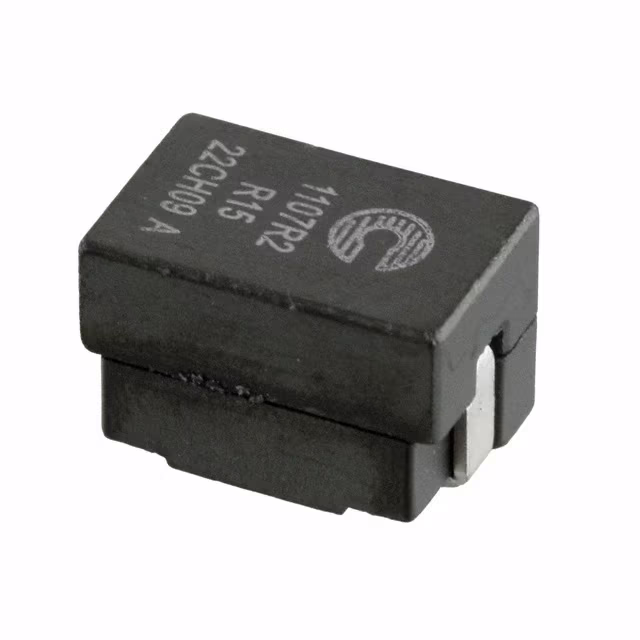

FP1107R2-R07-RFIXED IND 70NH 42A 0.47 MOHM SMD |
4,026 | 1.27 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 70 nH | ±10% | 42 A | 140A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.283" (7.20mm) |
|
|
FP1107R2-R12-RFIXED IND 120NH 42A 0.47MOHM SMD |
2,416 | 1.27 |
|
Datasheet |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 42 A | 90A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.283" (7.20mm) |
|
DRC-1213-150J-ULRADIAL INDUCTOR WITH LEADS, 15.0 |
3,001 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 4.5 A | 6.5A | Unshielded | 28mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
|
DRC-1213-472J-ULRADIAL INDUCTOR WITH LEADS, 4700 |
2,758 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 370 mA | 360mA | Unshielded | 4.4Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
|
DRC-1213-100J-ULRADIAL INDUCTOR WITH LEADS, 10.0 |
3,789 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 5.1 A | 8A | Unshielded | 23mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
|
DRC-1213-332J-ULRADIAL INDUCTOR WITH LEADS, 3300 |
1,669 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 440 mA | 430mA | Unshielded | 3.1Ohm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
|
DRC-1213-471J-ULRADIAL INDUCTOR WITH LEADS, 470. |
3,979 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 1.1 A | 1.1A | Unshielded | 430mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
|
DRC-1213-220J-ULRADIAL INDUCTOR WITH LEADS, 22.0 |
1,891 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 4.2 A | 5.5A | Unshielded | 35mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
|
DRC-1213-330J-ULRADIAL INDUCTOR WITH LEADS, 33.0 |
4,516 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 3.7 A | 4.5A | Unshielded | 43mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
|
DRC-1213-331J-ULRADIAL INDUCTOR WITH LEADS, 330. |
3,906 | 0.00 |
|
Datasheet |
DRC-1213 | Radial, Vertical Cylinder | Bag | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 1.4 A | 1.4A | Unshielded | 300mOhm Max | - | - | - | -20°C ~ 85°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.551" Dia (14.00mm) | 0.630" (16.00mm) |
|
SDR1307A-1R5MFIXED IND 1.5UH 9.5A 5 MOHM SMD |
4,985 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 9.5 A | 20A | Unshielded | 5mOhm Max | 20 @ 7.96MHz | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-2R2MFIXED IND 2.2UH 9A 6 MOHM SMD |
4,206 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9 A | 18A | Unshielded | 6mOhm Max | 22 @ 7.96MHz | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-2R7MFIXED IND 2.7UH 8.2A 8 MOHM SMD |
1,075 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 8.2 A | 16A | Unshielded | 8mOhm Max | 24 @ 7.96MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-5R6MFIXED IND 5.6UH 6.5A 15 MOHM SMD |
3,759 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 6.5 A | 11A | Unshielded | 15mOhm Max | 24 @ 7.96MHz | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-6R8MFIXED IND 6.8UH 6A 17 MOHM SMD |
2,569 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6 A | 10.5A | Unshielded | 17mOhm Max | 24 @ 7.96MHz | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-120MFIXED IND 12UH 4.8A 30 MOHM SMD |
4,568 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4.8 A | 8A | Unshielded | 30mOhm Max | 25 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-150MFIXED IND 15UH 4.5A 34 MOHM SMD |
2,136 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.5 A | 7.5A | Unshielded | 34mOhm Max | 28 @ 2.52MHz | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-180MFIXED IND 18UH 4.2A 36 MOHM SMD |
3,974 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 4.2 A | 7A | Unshielded | 36mOhm Max | 28 @ 2.52MHz | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-390KFIXED IND 39UH 2.9A 75 MOHM SMD |
4,463 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 2.9 A | 4.6A | Unshielded | 75mOhm Max | 28 @ 2.52MHz | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SDR1307A-560KFIXED IND 56UH 2.5A 100 MOHM SMD |
1,394 | 0.60 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 2.5 A | 3.8A | Unshielded | 100mOhm Max | 22 @ 2.52MHz | 7.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
