Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD14-470-RFIXED IND 47UH 525MA 905.5 MOHM |
1,067 | 1.41 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 525 mA | 538mA | Shielded | 905.5mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|
|
SD14-4R5-RFIXED IND 4.5UH 1.64A 93.5 MOHM |
2,323 | 1.41 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.5 µH | ±20% | 1.64 A | 1.74A | Shielded | 93.5mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|
|
SD14-680-RFIXED IND 68UH 474MA 1.11OHM SMD |
3,413 | 1.41 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 474 mA | 449mA | Shielded | 1.11Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|
|
SD14-8R8-RFIXED IND 8.8UH 1.14A 191.3 MOHM |
1,097 | 1.41 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.8 µH | ±20% | 1.14 A | 1.25A | Shielded | 191.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|
|
SD14-R58-RFIXED IND 580NH 3.52A 22MOHM SMD |
2,246 | 1.41 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 580 nH | ±20% | 3.52 A | 4.84A | Shielded | 22mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|
|
SD14-2R5-RFIXED IND 2.5UH 2.05A 59.5 MOHM |
2,941 | 1.41 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 2.05 A | 2.29A | Shielded | 59.5mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|
|
SD14-R87-RFIXED IND 870NH 3.2A 24.3MOHM SM |
2,965 | 1.41 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 870 nH | ±20% | 3.2 A | 3.96A | Shielded | 24.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|

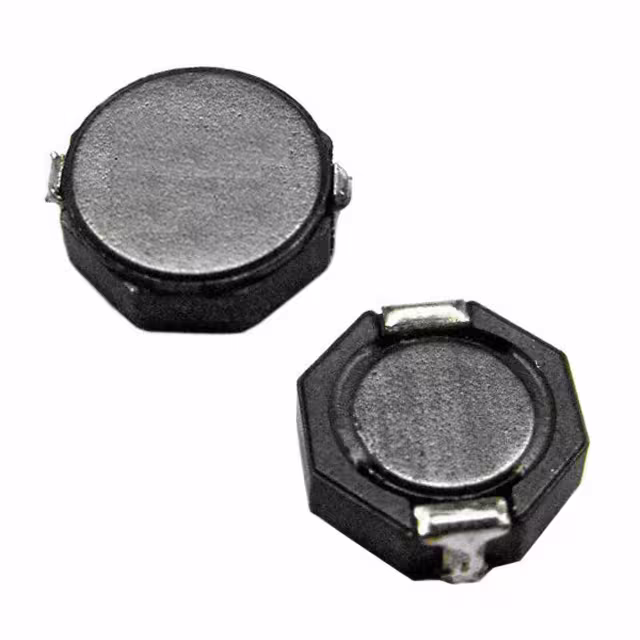

SCRH8D28-100FIXED IND 10UH 2.3A 47 MOHM SMD |
1,005 | 0.55 |
|
Datasheet |
SCRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 2.3 A | 2.3A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.126" (3.20mm) |
|
|
SCRH8D28-330FIXED IND 33UH 1.3A 156 MOHM SMD |
3,129 | 0.55 |
|
Datasheet |
SCRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±30% | 1.3 A | 1.3A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.126" (3.20mm) |
|

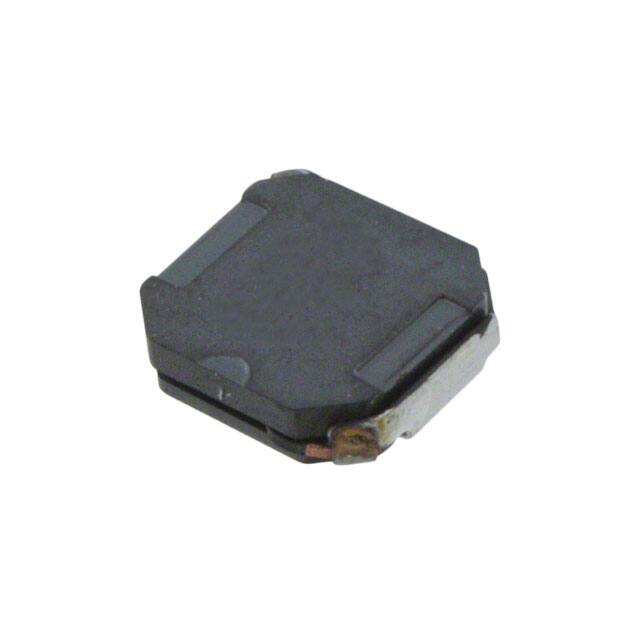

CDPH45D13FHF-100MCFIXED IND 10UH 1.1A 264 MOHM SMD |
3,630 | 0.00 |
|
Datasheet |
CDPH | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±20% | 1.1 A | 1.04A | Shielded | 264mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
CDPH45D13FHF-220MCFIXED IND 22UH 660MA 644MOHM SMD |
3,765 | 0.00 |
|
Datasheet |
CDPH | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 22 µH | ±20% | 660 mA | 740mA | Shielded | 644mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
B82132A5152M000FIXED IND 8UH 1.5A 160 MOHM TH |
2,933 | 0.00 |
|
Datasheet |
B82132 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 8 µH | ±20% | 1.5 A | - | Unshielded | 160mOhm | - | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.217" Dia x 0.787" L (5.50mm x 20.00mm) | - |
|
|
B82132A5401M000FIXED IND 50UH 400MA 3 OHM TH |
2,371 | 1.30 |
|
Datasheet |
B82132 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 50 µH | ±20% | 400 mA | - | Unshielded | 3Ohm | - | 37MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.217" Dia x 0.787" L (5.50mm x 20.00mm) | - |
|
|
B82132A5701M000FIXED IND 23UH 700MA 730 MOHM TH |
2,058 | 0.00 |
|
Datasheet |
B82132 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 23 µH | ±20% | 700 mA | - | Unshielded | 730mOhm | - | 55MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.217" Dia x 0.787" L (5.50mm x 20.00mm) | - |
|

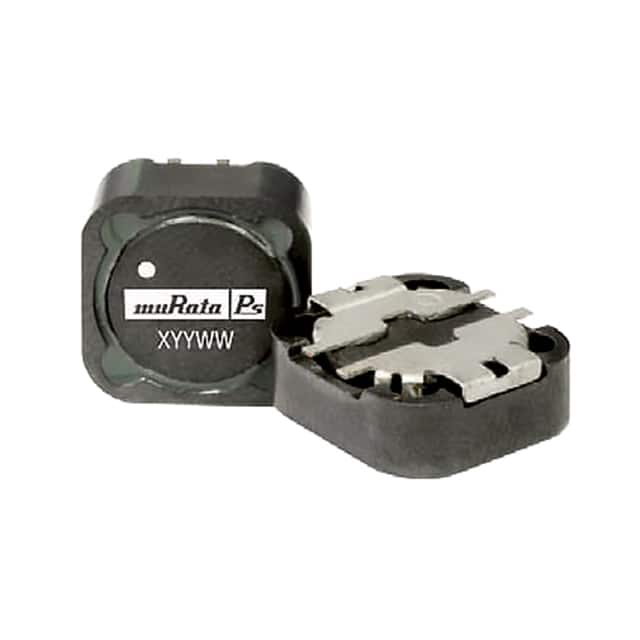

47100SCFIXED IND 10UH 3.8A 32.3MOHM SMD |
2,177 | 1.26 |
|
Datasheet |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3.8 A | - | Shielded | 32.3mOhm Max | 22 @ 1MHz | 22MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47101SCFIXED IND 100UH 1.3A 267MOHM SMD |
3,711 | 0.00 |
|
Datasheet |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.3 A | - | Shielded | 267mOhm Max | 20 @ 800kHz | 8MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47220SCFIXED IND 22UH 2.7A 62.9MOHM SMD |
3,027 | 1.26 |
|
Datasheet |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2.7 A | - | Shielded | 62.9mOhm Max | 29 @ 1MHz | 14MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47221SCFIXED IND 220UH 800MA 629MOHM SM |
3,000 | 1.26 |
|
Datasheet |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 800 mA | - | Shielded | 629mOhm Max | 20 @ 800kHz | 6MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47330SCFIXED IND 33UH 2.2A 91.1MOHM SMD |
4,920 | 0.00 |
|
Datasheet |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 2.2 A | - | Shielded | 91.1mOhm Max | 23 @ 1MHz | 13MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47470SCFIXED IND 47UH 1.9A 168MOHM SMD |
2,601 | 0.00 |
|
Datasheet |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.9 A | - | Shielded | 168mOhm Max | 23 @ 1MHz | 11MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
