Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM105-101KFIXED IND 100UH 970MA 350MOHM SM |
2,289 | 0.00 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 970 mA | - | Unshielded | 350mOhm | - | 7MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-121KFIXED IND 120UH 890MA 400MOHM SM |
4,603 | 0.00 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 890 mA | - | Unshielded | 400mOhm | - | 6MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-151KFIXED IND 150UH 780MA 470MOHM SM |
3,148 | 0.00 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 780 mA | - | Unshielded | 470mOhm | - | 5MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-221KFIXED IND 220UH 660MA 730MOHM SM |
4,932 | 0.00 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 660 mA | - | Unshielded | 730mOhm | - | 5MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-471KFIXED IND 470UH 420MA 1.48OHM SM |
2,216 | 0.00 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 420 mA | - | Unshielded | 1.48Ohm | - | 3MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-561KFIXED IND 560UH 330MA 1.9OHM SMD |
3,286 | 0.00 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 330 mA | - | Unshielded | 1.9Ohm | - | 3MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-821KFIXED IND 820UH 240MA 2.55OHM SM |
4,782 | 0.00 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 240 mA | - | Unshielded | 2.55Ohm | - | 2MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
VLF302512MT-1R0NFIXED IND 1UH 2.77A 37 MOHM SMD |
1,052 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.77 A | 2.12A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-1R5NFIXED IND 1.5UH 2.54A 44MOHM SMD |
1,913 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.54 A | 1.85A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-2R2MFIXED IND 2.2UH 1.95A 66MOHM SMD |
1,409 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.95 A | 1.4A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-3R3MFIXED IND 3.3UH 1.63A 108MOHM SM |
4,308 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.63 A | 1.2A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-4R7MFIXED IND 4.7UH 1.42A 136MOHM SM |
4,314 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.42 A | 1.08A | Shielded | 136mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-6R8MFIXED IND 6.8UH 1.21A 194MOHM SM |
3,644 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.21 A | 840mA | Shielded | 194mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-100MFIXED IND 10UH 950MA 299MOHM SMD |
4,282 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 950 mA | 690mA | Shielded | 299mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-150MFIXED IND 15UH 800MA 448MOHM SMD |
1,476 | 0.00 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | 570mA | Shielded | 448mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|
|
VLF302512MT-220MFIXED IND 22UH 640MA 700MOHM SMD |
1,534 | 1.28 |
|
Datasheet |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 640 mA | 470mA | Shielded | 700mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.047" (1.20mm) |
|

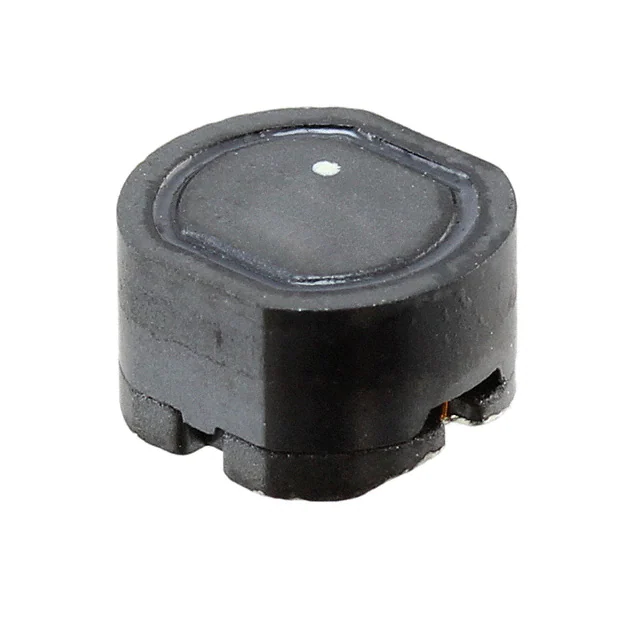

744787470FIXED IND 47UH 1.25A 243MOHM SMD |
2,245 | 1.95 |
|
Datasheet |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.25 A | 1.15A | Shielded | 243mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
SPM3015T-1R0MFIXED IND 1UH 3.5A 52.9 MOHM SMD |
1,622 | 1.34 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.5 A | 5.1A | Shielded | 52.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
SPM4015T-3R3M-LRFIXED IND 3.3UH 2.5A 116.6 MOHM |
4,374 | 1.38 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.5 A | 3.9A | Shielded | 116.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
SPM4010T-R47M-LRFIXED IND 470NH 5.6A 25.3MOHM SM |
4,008 | 0.63 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.6 A | 8.3A | Shielded | 25.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
