Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812-151KFIXED IND 150NH 818MA 300MOHM SM |
2,937 | 1.36 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 818 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812-181KFIXED IND 180NH 757MA 350MOHM SM |
1,950 | 1.36 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 180 nH | ±10% | 757 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
1812-271KFIXED IND 270NH 668MA 450MOHM SM |
3,943 | 1.36 |
|
Datasheet |
1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 270 nH | ±10% | 668 mA | - | Unshielded | 450mOhm Max | 30 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
DRA73-8R2-RFIXED IND 8.2UH 2.3A 53 MOHM SMD |
4,865 | 1.79 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 2.3 A | 2.74A | Shielded | 53mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

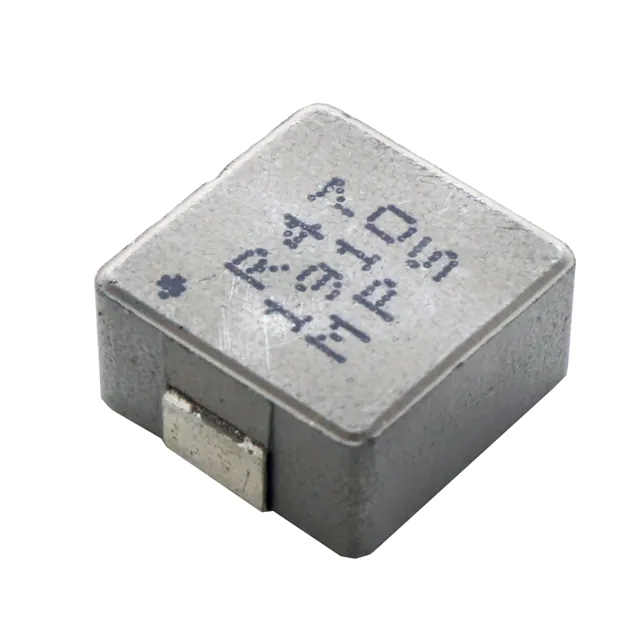

MPL-AY1265-3R3FIXED IND 3.3UH 16A 5.5 MOHM SMD |
3,496 | 1.59 |
|
Datasheet |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | - | 16 A | 25A | Unshielded | 5.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-1R5FIXED IND 1.5UH 22A 2.3 MOHM SMD |
1,887 | 1.59 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | - | 22 A | 34A | Unshielded | 2.3mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-4R7FIXED IND 4.7UH 14A 7 MOHM SMD |
1,948 | 1.59 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | - | 14 A | 23A | Unshielded | 7mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-6R8FIXED IND 6.8UH 12A 9.9 MOHM SMD |
3,078 | 1.59 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | - | 12 A | 19.5A | Unshielded | 9.9mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-100FIXED IND 10UH 10.7A 13.3MOHM SM |
4,545 | 2.89 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 10 µH | - | 10.7 A | 16A | Unshielded | 13.3mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-R47FIXED IND 470NH 33A 0.89MOHM SMD |
4,492 | 1.59 |
|
Datasheet |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 470 nH | - | 33 A | 64A | Unshielded | 0.89mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-2R2FIXED IND 2.2UH 17A 3.7 MOHM SMD |
3,825 | 1.59 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 17 A | 26.5A | Unshielded | 3.7mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
5602FIXED IND 10UH 14A 8 MOHM TH |
4,652 | 60.14 |
|
Datasheet |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 14 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|
5606FIXED IND 250UH 2.9A 173 MOHM TH |
2,783 | 0.00 |
|
Datasheet |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 2.9 A | - | Unshielded | 173mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|
|
5609FIXED IND 2.5MH 850MA 2.04OHM TH |
2,958 | 0.00 |
|
Datasheet |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 mH | ±10% | 850 mA | - | Unshielded | 2.04Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|
PA2248.682NLTIND COMPOSITE 17X16X13 |
1,445 | 2.73 |
|
Datasheet |
PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 27 A | 37A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
|
PA2248.223NLTIND COMPOSITE 17X16X13 |
1,348 | 2.73 |
|
Datasheet |
PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 17 A | 22A | Shielded | 13.86mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.512" (13.00mm) |
|
|
PA2248.103NLTIND COMPOSITE 17X16X13 |
1,409 | 2.73 |
|
Datasheet |
PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 25 A | 30A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.512" (13.00mm) |
|
|
PA2248.333NLTIND COMPOSITE 17X16X13 |
1,998 | 2.73 |
|
Datasheet |
PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 14 A | 19A | Shielded | 22.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.650" W (17.50mm x 16.50mm) | 0.512" (13.00mm) |
|
|
PA2248.822NLTIND COMPOSITE 17X16X13 |
4,765 | 2.73 |
|
Datasheet |
PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 26 A | 33A | Shielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
|
PA2248.562NLTIND COMPOSITE 17X16X13 |
4,833 | 2.73 |
|
Datasheet |
PA2248.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 29 A | 40A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
