Home > Products > Inductors, Coils, Chokes > Fixed Inductors

Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
1782R-51G FIXED IND 20UH 140MA 3.3 OHM TH Delevan	1,100	3.43	RFQ	Datasheet	1782R	Axial	Tape & Reel (TR)	Active	Molded	Iron	20 µH	±2%	140 mA	-	Unshielded	3.3Ohm Max	50 @ 2.5MHz	25MHz	-	-55°C ~ 105°C	2.5 MHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
1782R-53G FIXED IND 24UH 135MA 3.5 OHM TH Delevan	3,712	3.43	RFQ	Datasheet	1782R	Axial	Tape & Reel (TR)	Active	Molded	Iron	24 µH	±2%	135 mA	-	Unshielded	3.5Ohm Max	50 @ 2.5MHz	20MHz	-	-55°C ~ 105°C	2.5 MHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
1782R-95G FIXED IND 110NH 1.27A 90 MOHM TH Delevan	2,262	3.43	RFQ	Datasheet	1782R	Axial	Tape & Reel (TR)	Active	Molded	Phenolic	110 nH	±2%	1.27 A	-	Unshielded	90mOhm Max	40 @ 25MHz	640MHz	-	-55°C ~ 125°C	25 MHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-
1782R-97G FIXED IND 130NH 1.2A 100 MOHM TH Delevan	3,175	3.43	RFQ	Datasheet	1782R	Axial	Tape & Reel (TR)	Active	Molded	Phenolic	130 nH	±2%	1.2 A	-	Unshielded	100mOhm Max	38 @ 25MHz	600MHz	-	-55°C ~ 125°C	25 MHz	-	Through Hole	-	0.095" Dia x 0.250" L (2.41mm x 6.35mm)	-

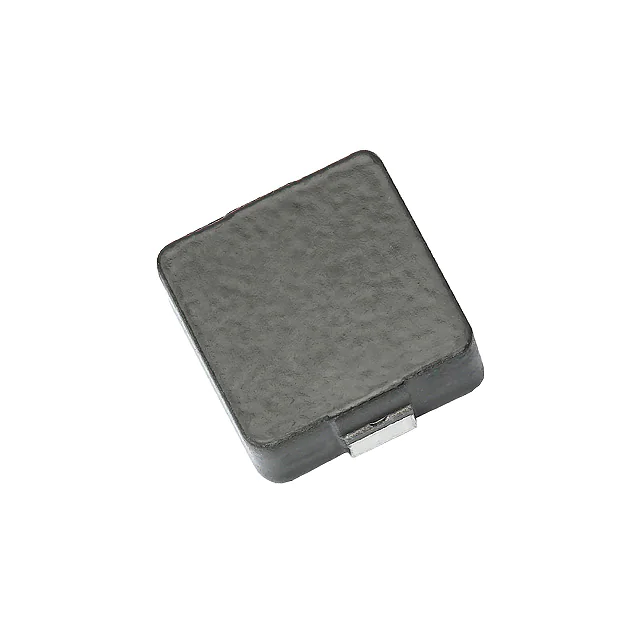

HCMA1707-220-R FIXED IND 22UH 9.5A 23 MOHM SMD Eaton - Electronics Division	4,088	3.85	RFQ	Datasheet	HCMA1707	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Iron Powder	22 µH	±20%	9.5 A	11A	Shielded	23mOhm Max	-	-	AEC-Q200	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.677" L x 0.663" W (17.20mm x 16.85mm)	0.276" (7.00mm)
SWT-0.67-115 FIXED IND 115UH 670MA 400MOHM TH Amgis, LLC	1,918	3.68	RFQ	Datasheet	SW	Radial, Horizontal (Open)	Bulk	Obsolete	Toroidal	Iron Powder	115 µH	±20%	670 mA	-	Unshielded	400mOhm	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	0.504" L x 0.504" W (12.80mm x 12.80mm)	0.307" (7.80mm)
SWT-0.82-78 FIXED IND 78UH 820MA 300 MOHM TH Amgis, LLC	4,323	3.68	RFQ	Datasheet	SW	Radial, Horizontal (Open)	Bulk	Obsolete	Toroidal	Iron Powder	78 µH	±20%	820 mA	-	Unshielded	300mOhm	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	0.504" L x 0.504" W (12.80mm x 12.80mm)	0.307" (7.80mm)

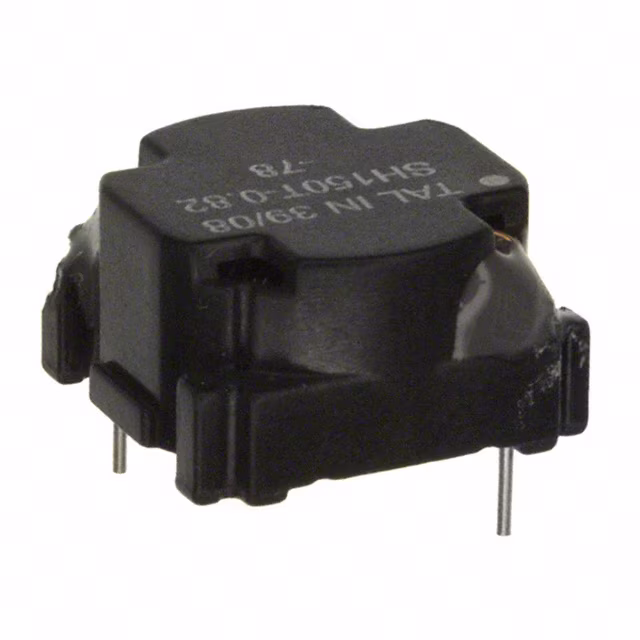

SH150T-0.82-78 FIXED IND 78UH 820MA 300 MOHM TH Amgis, LLC	2,864	4.00	RFQ	Datasheet	SH150	Radial, Horizontal - Corner Terminals	Tray	Active	Toroidal	Iron Powder	78 µH	±20%	820 mA	-	Unshielded	300mOhm	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	0.551" L x 0.559" W (14.00mm x 14.20mm)	0.311" (7.90mm)
SP1008-563J FIXED IND 56UH 133MA 6.4 OHM SMD Delevan	4,353	3.71	RFQ	Datasheet	SP1008	Nonstandard	Tape & Reel (TR)	Obsolete	Drum Core, Wirewound	Ferrite	56 µH	±5%	133 mA	-	Shielded	6.4Ohm Max	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.115" L x 0.105" W (2.92mm x 2.66mm)	0.095" (2.41mm)
B82111B0000C021 FIXED IND 5UH 10A 5 MOHM TH EPCOS - TDK Electronics	4,170	3.87	RFQ	Datasheet	B82111B	Axial	Bulk	Obsolete	Drum Core, Wirewound	Ferrite	5 µH	±20%	10 A	-	Unshielded	5mOhm	-	175MHz	-	-55°C ~ 125°C	1 MHz	-	Through Hole	-	0.374" Dia x 1.339" L (9.50mm x 34.00mm)	-
GA5-334K HIGH CURRENT AXIAL POWER CHOKE Gowanda Electronics	2,793	0.00	RFQ	Datasheet	GA5	Axial	Tape & Reel (TR)	Active	Toroidal	Ferrite	3.3 mH	±10%	83 mA	52mA	Unshielded	29Ohm Max	-	530kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Axial	0.160" Dia x 0.400" L (4.06mm x 10.16mm)	-
GA5-394K HIGH CURRENT AXIAL POWER CHOKE Gowanda Electronics	4,457	0.00	RFQ	Datasheet	GA5	Axial	Tape & Reel (TR)	Active	Toroidal	Ferrite	3.9 mH	±10%	77 mA	48mA	Unshielded	34Ohm Max	-	480kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Axial	0.160" Dia x 0.400" L (4.06mm x 10.16mm)	-
GA5-274K HIGH CURRENT AXIAL POWER CHOKE Gowanda Electronics	4,907	0.00	RFQ	Datasheet	GA5	Axial	Tape & Reel (TR)	Active	Toroidal	Ferrite	2.7 mH	±10%	90 mA	58mA	Unshielded	25Ohm Max	-	560kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Axial	0.160" Dia x 0.400" L (4.06mm x 10.16mm)	-
GA5-224K HIGH CURRENT AXIAL POWER CHOKE Gowanda Electronics	2,164	0.00	RFQ	Datasheet	GA5	Axial	Tape & Reel (TR)	Active	Toroidal	Ferrite	2.2 mH	±10%	100 mA	64mA	Unshielded	19Ohm Max	-	640kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	Axial	0.160" Dia x 0.400" L (4.06mm x 10.16mm)	-
4470-15H FIXED IND 15UH 1.3A 300 MOHM TH Delevan	3,101	3.69	RFQ	Datasheet	4470	Axial	Tape & Reel (TR)	Active	Molded	Iron	15 µH	±3%	1.3 A	-	Unshielded	300mOhm Max	75 @ 5MHz	32MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	-	0.310" Dia x 0.910" L (7.87mm x 23.11mm)	-
4470-16H FIXED IND 18UH 1.15A 400 MOHM TH Delevan	4,011	3.69	RFQ	Datasheet	4470	Axial	Tape & Reel (TR)	Active	Molded	Iron	18 µH	±3%	1.15 A	-	Unshielded	400mOhm Max	75 @ 5MHz	28.8MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	-	0.310" Dia x 0.910" L (7.87mm x 23.11mm)	-
4470-17H FIXED IND 22UH 1A 500 MOHM TH Delevan	1,755	3.69	RFQ	Datasheet	4470	Axial	Tape & Reel (TR)	Active	Molded	Iron	22 µH	±3%	1 A	-	Unshielded	500mOhm Max	75 @ 2.5MHz	25.6MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	-	0.310" Dia x 0.910" L (7.87mm x 23.11mm)	-
4470-18H FIXED IND 27UH 900MA 600 MOHM TH Delevan	3,739	3.69	RFQ	Datasheet	4470	Axial	Tape & Reel (TR)	Active	Molded	Iron	27 µH	±3%	900 mA	-	Unshielded	600mOhm Max	70 @ 2.5MHz	24MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	-	0.310" Dia x 0.910" L (7.87mm x 23.11mm)	-
4470-19H FIXED IND 33UH 850MA 700 MOHM TH Delevan	4,433	3.69	RFQ	Datasheet	4470	Axial	Tape & Reel (TR)	Active	Molded	Iron	33 µH	±3%	850 mA	-	Unshielded	700mOhm Max	70 @ 2.5MHz	22.4MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	-	0.310" Dia x 0.910" L (7.87mm x 23.11mm)	-
4470-20H FIXED IND 39UH 720MA 1 OHM TH Delevan	1,949	3.69	RFQ	Datasheet	4470	Axial	Tape & Reel (TR)	Active	Molded	Iron	39 µH	±3%	720 mA	-	Unshielded	1Ohm Max	70 @ 2.5MHz	20.8MHz	-	-55°C ~ 125°C	2.5 MHz	-	Through Hole	-	0.310" Dia x 0.910" L (7.87mm x 23.11mm)	-

Total 147749 Record«Prev 1... 5794 5795 5796 579757985799 5800 5801...7388 Next»
