Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWT-0.36-375FIXED IND 375UH 360MA 1.3 OHM TH |
2,702 | 3.79 |
|
Datasheet |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 375 µH | ±20% | 360 mA | - | Unshielded | 1.3Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.307" (7.80mm) |
|

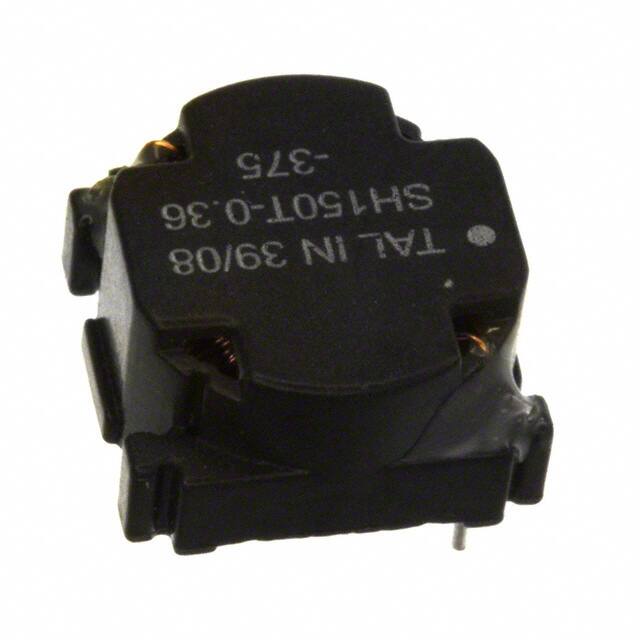

SH150T-0.36-375FIXED IND 375UH 360MA 1.3 OHM TH |
2,482 | 4.13 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 375 µH | ±20% | 360 mA | - | Unshielded | 1.3Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
IH03EB100KFIXED IND 10UH 9A 18 MOHM TH |
3,306 | 3.94 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 9 A | 19A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) | - |
|
|
IH05BQ100KFIXED IND 10UH 12A 15 MOHM TH |
4,086 | 3.94 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 12 A | 19A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) | - |
|
|
GA20-822KHIGH CURRENT AXIAL POWER CHOKE |
1,511 | 0.00 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 82 µH | ±10% | 1.352 A | 1.4A | Unshielded | 152mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-682KHIGH CURRENT AXIAL POWER CHOKE |
2,298 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 68 µH | ±10% | 1.503 mA | 900mA | Unshielded | 123mOhm Max | - | 3.6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-562KLFHIGH CURRENT AXIAL POWER CHOKE |
1,959 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 56 µH | ±10% | 1.59 mA | 1mA | Unshielded | 110mOhm Max | - | 4.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-822KHIGH CURRENT AXIAL POWER CHOKE |
1,901 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 82 µH | ±10% | 1.29 mA | 760mA | Unshielded | 167mOhm Max | - | 3.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-562KHIGH CURRENT AXIAL POWER CHOKE |
2,626 | 0.00 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 56 µH | ±10% | 1.409 A | 1.7A | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA20-682KHIGH CURRENT AXIAL POWER CHOKE |
2,429 | 0.00 |
|
Datasheet |
GA20 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 68 µH | ±10% | 1.385 A | 1.5A | Unshielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-562KHIGH CURRENT AXIAL POWER CHOKE |
3,267 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 56 µH | ±10% | 1.59 mA | 1mA | Unshielded | 110mOhm Max | - | 4.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-822KLFHIGH CURRENT AXIAL POWER CHOKE |
4,047 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 82 µH | ±10% | 1.29 mA | 760mA | Unshielded | 167mOhm Max | - | 3.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-472KHIGH CURRENT AXIAL POWER CHOKE |
1,437 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 47 µH | ±10% | 1.808 mA | 1.1mA | Unshielded | 85mOhm Max | - | 5.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-472KLFHIGH CURRENT AXIAL POWER CHOKE |
2,043 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 47 µH | ±10% | 1.808 mA | 1.1mA | Unshielded | 85mOhm Max | - | 5.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
|
GA10-682KLFHIGH CURRENT AXIAL POWER CHOKE |
4,906 | 0.00 |
|
Datasheet |
GA10 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 68 µH | ±10% | 1.503 mA | 900mA | Unshielded | 123mOhm Max | - | 3.6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.260" Dia x 0.630" L (6.60mm x 16.00mm) | - |
|
SP1210-102HFIXED IND 1UH 1.19A 147 MOHM SMD |
1,401 | 3.68 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±3% | 1.19 A | 1.29A | Shielded | 147mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-103HFIXED IND 10UH 464MA 960MOHM SMD |
3,289 | 3.68 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±3% | 464 mA | 410mA | Shielded | 960mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-104HFIXED IND 100UH 154MA 8.7OHM SMD |
3,242 | 3.68 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±3% | 154 mA | 129mA | Shielded | 8.7Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-122HFIXED IND 1.2UH 1.14A 160MOHM SM |
1,345 | 3.68 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±3% | 1.14 A | 1.18A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
|
|
SP1210-123HFIXED IND 12UH 400MA 1.3 OHM SMD |
3,996 | 3.68 |
|
Datasheet |
SP1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±3% | 400 mA | 375mA | Shielded | 1.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 0.101" (2.57mm) |
