Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

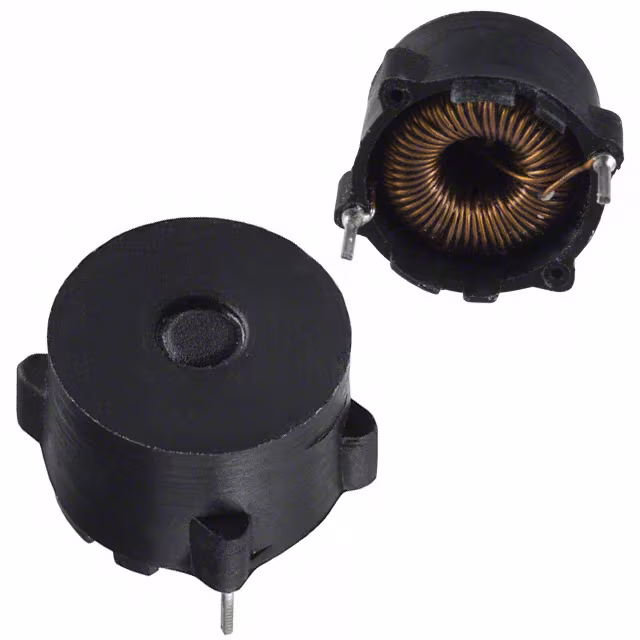

SWF-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
4,629 | 3.89 |
|
Datasheet |
SW | Radial, Vertical Cylinder | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
SWV-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
1,617 | 3.89 |
|
Datasheet |
SW | Radial, Vertical | Bulk | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|

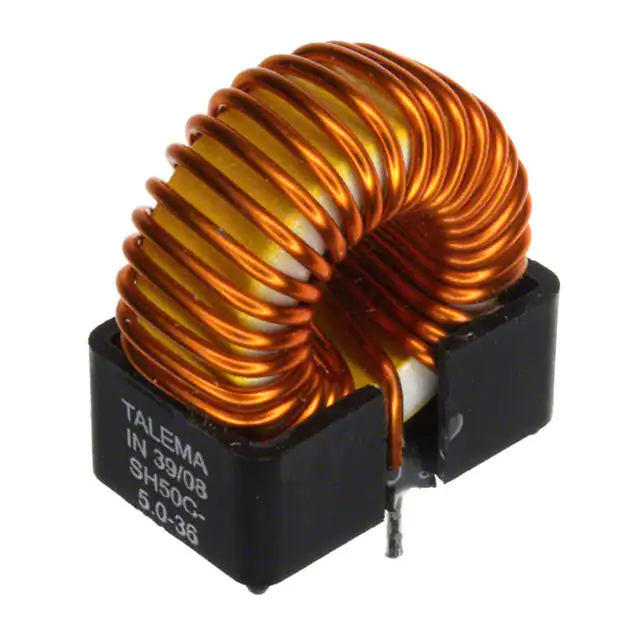

SH50C-5.0-36FIXED IND 36UH 5A 20 MOHM TH |
1,201 | 4.41 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 36 µH | ±20% | 5 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SH50V-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH |
4,156 | 4.24 |
|
Datasheet |
SH50 | Radial, Vertical | Tray | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|
SH260T-5.0-15FIXED IND 15UH 5A 27 MOHM TH |
4,175 | 4.08 |
|
Datasheet |
SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 15 µH | ±20% | 5 A | - | Unshielded | 27mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.409" (10.40mm) |
|
|
S0603-221NJ1DFIXED IND 220NH 250MA 1.7OHM SMD |
3,409 | 0.00 |
|
Datasheet |
S0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 220 nH | ±5% | 250 mA | - | Unshielded | 1.7Ohm Max | 22 @ 100MHz | 1.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.062" L x 0.035" W (1.58mm x 0.89mm) | 0.040" (1.02mm) |
|
|
MLRF0805-270GSMIL CERAMIC CHIP INDUCTOR |
3,518 | 0.00 |
|
Datasheet |
MLRF0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 270 nH | ±2% | 300 mA | - | Unshielded | 1.2Ohm Max | 40 @ 200MHz | 730MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.095" L x 0.070" W (2.41mm x 1.78mm) | 0.060" (1.52mm) |
|
|
SMRF5025S-684KMOLDED SHIELDED INDUCTOR |
2,365 | 0.00 |
|
Datasheet |
SMRF5025S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 mH | ±10% | 59 mA | 13mA | Shielded | 111Ohm Max | 50 @ 250kHz | 1.4MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | - | 0.500" L x 0.240" W (12.70mm x 6.10mm) | 0.230" (5.84mm) |
|
|
4307-106JFIXED IND 10MH 49MA 137 OHM TH |
4,272 | 3.88 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 10 mH | ±5% | 49 mA | 14mA | Shielded | 137Ohm Max | 50 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307-126JFIXED IND 12MH 46MA 143 OHM TH |
1,263 | 3.88 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 mH | ±5% | 46 mA | 13mA | Shielded | 143Ohm Max | 30 @ 79kHz | 800kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307-156JFIXED IND 15MH 45MA 157 OHM TH |
4,502 | 3.88 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 mH | ±5% | 45 mA | 12mA | Shielded | 157Ohm Max | 30 @ 79kHz | 600kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307-186JFIXED IND 18MH 41MA 225 OHM TH |
1,721 | 3.88 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 mH | ±5% | 41 mA | 10mA | Shielded | 225Ohm Max | 30 @ 79kHz | 550kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307-226JFIXED IND 22MH 33MA 274 OHM TH |
2,101 | 3.88 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 22 mH | ±5% | 33 mA | 9mA | Shielded | 274Ohm Max | 27 @ 79kHz | 500kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307-276JFIXED IND 27MH 31MA 308 OHM TH |
4,341 | 3.88 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 27 mH | ±5% | 31 mA | 8mA | Shielded | 308Ohm Max | 27 @ 79kHz | 400kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307-336JFIXED IND 33MH 29MA 343 OHM TH |
2,404 | 3.88 |
|
Datasheet |
4307 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 33 mH | ±5% | 29 mA | 7.5mA | Shielded | 343Ohm Max | 27 @ 79kHz | 400kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-106JFIXED IND 10MH 49MA 137 OHM TH |
1,997 | 3.88 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 10 mH | ±5% | 49 mA | 14mA | Shielded | 137Ohm Max | 50 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-126JFIXED IND 12MH 46MA 143 OHM TH |
1,773 | 3.88 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 12 mH | ±5% | 46 mA | 13mA | Shielded | 143Ohm Max | 30 @ 79kHz | 800kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-156JFIXED IND 15MH 45MA 157 OHM TH |
1,875 | 3.88 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 15 mH | ±5% | 45 mA | 12mA | Shielded | 157Ohm Max | 30 @ 79kHz | 600kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-186JFIXED IND 18MH 41MA 225 OHM TH |
3,057 | 3.88 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 18 mH | ±5% | 41 mA | 10mA | Shielded | 225Ohm Max | 30 @ 79kHz | 550kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
|
|
4307R-226JFIXED IND 22MH 33MA 274 OHM TH |
4,658 | 3.88 |
|
Datasheet |
4307R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 22 mH | ±5% | 33 mA | 9mA | Shielded | 274Ohm Max | 27 @ 79kHz | 500kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | - | 0.197" Dia x 0.447" L (5.00mm x 11.35mm) | - |
