Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD127-224MFIXED IND 220UH 1.2A 390MOHM SMD |
3,839 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | - | Shielded | 390mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-273MFIXED IND 27UH 3.4A 60 MOHM SMD |
1,582 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.4 A | - | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-274MFIXED IND 270UH 1.1A 520MOHM SMD |
3,396 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 1.1 A | - | Shielded | 520mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-332MFIXED IND 3.3UH 7.5A 18 MOHM SMD |
3,231 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 7.5 A | - | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-333MFIXED IND 33UH 3A 65 MOHM SMD |
4,970 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | - | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-334MFIXED IND 330UH 1A 620 MOHM SMD |
2,155 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1 A | - | Shielded | 620mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-393MFIXED IND 39UH 2.8A 80 MOHM SMD |
2,868 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 2.8 A | - | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-394MFIXED IND 390UH 900MA 750MOHM SM |
2,874 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 900 mA | - | Shielded | 750mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-472MFIXED IND 4.7UH 6.8A 22 MOHM SMD |
4,767 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.8 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-473MFIXED IND 47UH 2.5A 100 MOHM SMD |
2,215 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.5 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-474MFIXED IND 470UH 800MA 980MOHM SM |
3,775 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 800 mA | - | Shielded | 980mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-563MFIXED IND 56UH 2.3A 120 MOHM SMD |
3,229 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.3 A | - | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-564MFIXED IND 560UH 750MA 1.15OHM SM |
3,823 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 750 mA | - | Shielded | 1.15Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-682MFIXED IND 6.8UH 6.2A 30 MOHM SMD |
4,426 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.2 A | - | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-683MFIXED IND 68UH 2.1A 140 MOHM SMD |
1,661 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.1 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-684MFIXED IND 680UH 700MA 1.22OHM SM |
2,029 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 700 mA | - | Shielded | 1.22Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-823MFIXED IND 82UH 1.9A 170 MOHM SMD |
4,160 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.9 A | - | Shielded | 170mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127-824MFIXED IND 820UH 650MA 1.4OHM SMD |
1,716 | 0.00 |
|
Datasheet |
SPD127 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 650 mA | - | Shielded | 1.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

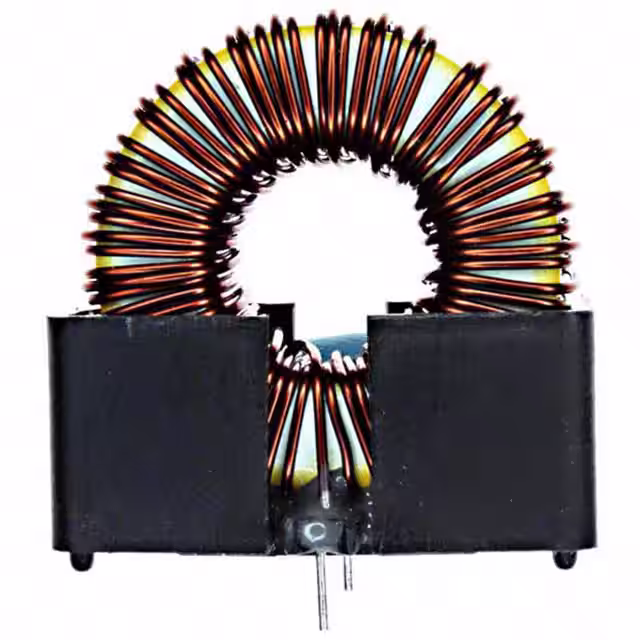

SH50C-1.3-680FIXED IND 680UH 1.3A 200 MOHM TH |
3,101 | 5.07 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 680 µH | ±20% | 1.3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
2510R-00FFIXED IND 100NH 865MA 140MOHM SM |
1,358 | 4.65 |
|
Datasheet |
2510R | 2-SMD | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±1% | 865 mA | - | Unshielded | 140mOhm Max | 25 @ 25MHz | 640MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
