Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER3013-101JMINDUCTOR RF SMD |
1,470 | 0.00 |
|
Datasheet |
ER3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±5% | 390 mA | - | Shielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|

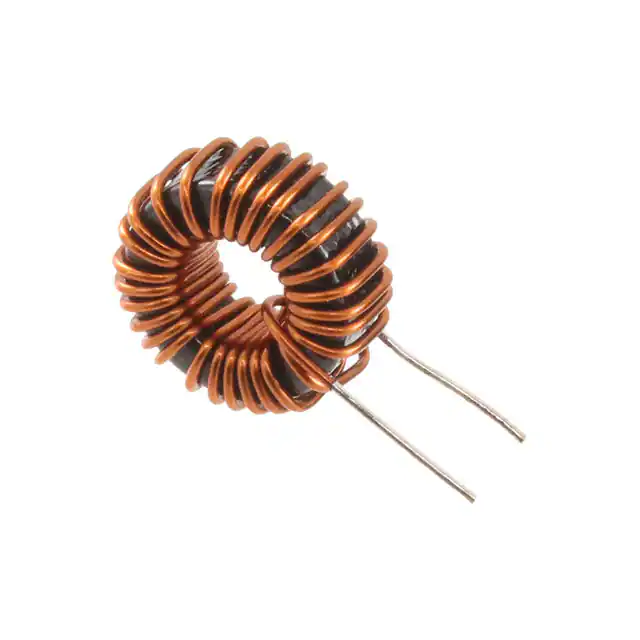

SHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
2,711 | 8.96 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 97 µH | ±20% | 12 A | - | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.622" Dia (41.20mm) | 1.622" (41.20mm) |
|
|
22M154KMOLDED AXL UNSHIELDED RF COILS |
4,147 | 0.00 |
|
Datasheet |
22M | Axial | Tape & Reel (TR) | Active | Molded | - | 1.5 mH | ±10% | 72 mA | - | Unshielded | 25Ohm Max | 65 @ 250kHz | 2.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
|
SH260T-4.9-23FIXED IND 22.8UH 4.9A 36 MOHM TH |
3,601 | 5.58 |
|
Datasheet |
SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.386" (9.80mm) |
|
|
22M134JLFMOLDED AXL UNSHIELDED RF COILS |
4,566 | 0.00 |
|
Datasheet |
22M | Axial | Tape & Reel (TR) | Active | Molded | - | 1.3 mH | ±5% | 75 mA | - | Unshielded | 23Ohm Max | 60 @ 250kHz | 2.6MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.215" Dia x 0.560" L (5.46mm x 14.22mm) | - |
|
IHSM5832ER101LFIXED IND 100UH 950MA 452MOHM SM |
3,026 | 2.94 |
|
Datasheet |
IHSM-5832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 950 mA | 680mA | Unshielded | 452mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.640" L x 0.320" W (16.26mm x 8.13mm) | 0.285" (7.24mm) |
|
IHSM7832ER102LFIXED IND 1MH 510MA 2.42 OHM SMD |
4,432 | 3.23 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±15% | 510 mA | 210mA | Unshielded | 2.42Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
IHSM7832ER222LFIXED IND 2.2MH 310MA 4.62OHM SM |
4,084 | 3.23 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 mH | ±15% | 310 mA | 135mA | Unshielded | 4.62Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
GT20-202-1VERTICAL MOUNT TOROIDAL CHOKE |
2,126 | 0.00 |
|
Datasheet |
GT20 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | - | 2A | Unshielded | 62mOhm | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 0.350" Dia x 0.250" L (8.89mm x 6.35mm) | - |
|
|
1B753WW HIGH CURRENT POWER CHOKE |
1,377 | 0.00 |
|
Datasheet |
1B | Axial | Bulk | Active | Toroidal | - | 750 µH | ±10% | 1 A | - | Unshielded | 740mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 1.100" L (12.70mm x 27.94mm) | - |
|
SWB-0.42-2200FIXED IND 2.2MH 420MA 1.8 OHM TH |
3,508 | 0.00 |
|
Datasheet |
SW | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|
GA40-183KHIGH CURRENT AXIAL POWER CHOKE |
4,407 | 0.00 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 µH | ±10% | 1.741 mA | 1.98A | Unshielded | 150mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-183KHIGH CURRENT AXIAL POWER CHOKE |
2,515 | 0.00 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 180 µH | ±10% | 1.741 A | 760mA | Unshielded | 150mOhm Max | - | 1.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-153KLFHIGH CURRENT AXIAL POWER CHOKE |
2,352 | 0.00 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 150 µH | ±10% | 1.878 mA | 2.22A | Unshielded | 129mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-103KHIGH CURRENT AXIAL POWER CHOKE |
3,216 | 0.00 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 2.248 mA | 2.79A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-123KHIGH CURRENT AXIAL POWER CHOKE |
4,025 | 0.00 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 120 µH | ±10% | 2.006 A | 930mA | Unshielded | 113mOhm Max | - | 2.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-123KHIGH CURRENT AXIAL POWER CHOKE |
1,478 | 0.00 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 µH | ±10% | 2.006 mA | 2.54A | Unshielded | 113mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA40-153KHIGH CURRENT AXIAL POWER CHOKE |
2,314 | 0.00 |
|
Datasheet |
GA40 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±10% | 1.878 mA | 2.22A | Unshielded | 129mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-153KHIGH CURRENT AXIAL POWER CHOKE |
2,136 | 0.00 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 150 µH | ±10% | 1.878 A | 830mA | Unshielded | 129mOhm Max | - | 1.9MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
|
|
GA30-103KHIGH CURRENT AXIAL POWER CHOKE |
2,739 | 0.00 |
|
Datasheet |
GA30 | Axial | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 µH | ±10% | 2.327 A | 1A | Unshielded | 84mOhm Max | - | 2.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.450" Dia x 0.900" L (11.43mm x 22.86mm) | - |
