Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2500-76HFIXED IND 10MH 48MA 72 OHM TH |
4,195 | 5.38 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 mH | ±3% | 48 mA | - | Unshielded | 72Ohm Max | 80 @ 250kHz | 950kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
PL9303NLTFIXED IND 2.2UH 5.8A 10.9MOHM SM |
3,732 | 7.09 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±25% | 5.8 A | 6.15A | Shielded | 10.9mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
SWC-2.50-167FIXED IND 167UH 2.5A 140 MOHM TH |
1,073 | 5.64 |
|
Datasheet |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 167 µH | ±20% | 2.5 A | - | Unshielded | 140mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|

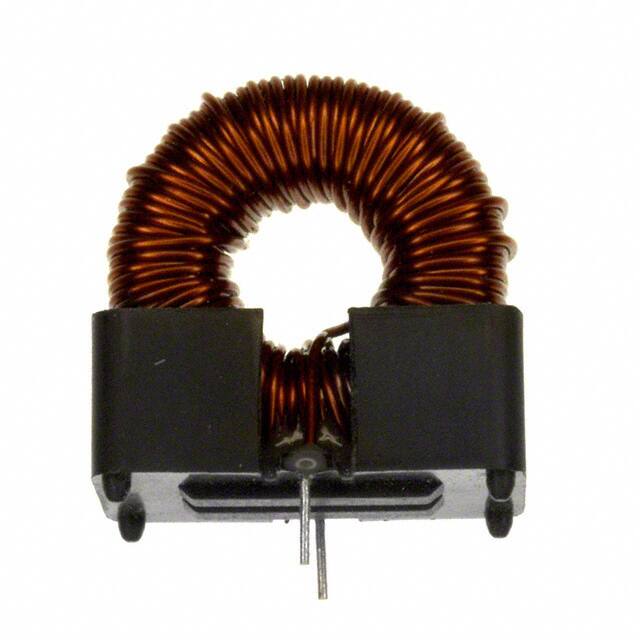

SH150C-2.50-167FIXED IND 167UH 2.5A 140 MOHM TH |
1,171 | 6.14 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 167 µH | ±20% | 2.5 A | - | Unshielded | 140mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
|
24M394JMOLDED AXL UNSHIELDED RF COILS |
1,635 | 0.00 |
|
Datasheet |
24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.9 mH | ±5% | 61 mA | - | Unshielded | 44Ohm Max | 80 @ 250kHz | 1.45MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
24M434JMOLDED AXL UNSHIELDED RF COILS |
3,664 | 0.00 |
|
Datasheet |
24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.3 mH | ±5% | 59 mA | - | Unshielded | 46Ohm Max | 80 @ 250kHz | 1.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
IHD1BH102LFIXED IND 1MH 330MA 2.3 OHM TH |
4,415 | 9.19 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±15% | 330 mA | 230mA | Unshielded | 2.3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH122LFIXED IND 1.2MH 310MA 2.55OHM TH |
2,084 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±15% | 310 mA | 210mA | Unshielded | 2.55Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH152LFIXED IND 1.5MH 290MA 3 OHM TH |
4,177 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±15% | 290 mA | 190mA | Unshielded | 3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH182LFIXED IND 1.8MH 250MA 4 OHM TH |
1,631 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±15% | 250 mA | 180mA | Unshielded | 4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH222LFIXED IND 2.2MH 240MA 4.4 OHM TH |
2,627 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±15% | 240 mA | 160mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH272LFIXED IND 2.7MH 210MA 5.8 OHM TH |
3,240 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±15% | 210 mA | 140mA | Unshielded | 5.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH332LFIXED IND 3.3MH 200MA 6.56OHM TH |
3,320 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±15% | 200 mA | 130mA | Unshielded | 6.56Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH471LFIXED IND 470UH 490MA 1.03OHM TH |
1,882 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±15% | 490 mA | 340mA | Unshielded | 1.03Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH681LFIXED IND 680UH 410MA 1.5 OHM TH |
2,449 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±15% | 410 mA | 280mA | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
IHD1BH821LFIXED IND 820UH 360MA 1.98OHM TH |
1,599 | 6.25 |
|
Datasheet |
IHD | Axial | - | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±15% | 360 mA | 260mA | Unshielded | 1.98Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | - |
|
|
1782R-55FFIXED IND 30UH 130MA 3.4 OHM TH |
3,649 | 5.42 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 30 µH | ±1% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782R-57FFIXED IND 36UH 125MA 3.6 OHM TH |
4,449 | 5.42 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 36 µH | ±1% | 125 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782R-59FFIXED IND 43UH 110MA 4.5 OHM TH |
2,300 | 5.42 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 43 µH | ±1% | 110 mA | - | Unshielded | 4.5Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1782R-61FFIXED IND 51UH 100MA 5.7 OHM TH |
1,152 | 5.42 |
|
Datasheet |
1782R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 51 µH | ±1% | 100 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
