Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB2-823RADIAL POWER LINE CHOKE |
1,431 | 0.00 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 820 µH | ±15% | 1.3 A | 3.4A | Unshielded | 445mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
DB2-154RADIAL POWER LINE CHOKE |
2,360 | 0.00 |
|
Datasheet |
DB2 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 1.5 mH | ±10% | 960 A | 2.4A | Unshielded | 746mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.800" Dia (20.32mm) | 0.712" (18.08mm) |
|
|
2150R-18GFIXED IND 5.6UH 1.04A 130MOHM TH |
2,510 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 µH | ±2% | 1.04 A | - | Unshielded | 130mOhm Max | 35 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-20GFIXED IND 6.8UH 835MA 200MOHM TH |
4,467 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 µH | ±2% | 835 mA | - | Unshielded | 200mOhm Max | 35 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-22GFIXED IND 8.2UH 795MA 220MOHM TH |
1,808 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 8.2 µH | ±2% | 795 mA | - | Unshielded | 220mOhm Max | 35 @ 7.9MHz | 44MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-24GFIXED IND 10UH 735MA 260 MOHM TH |
2,639 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 10 µH | ±2% | 735 mA | - | Unshielded | 260mOhm Max | 35 @ 7.9MHz | 42MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-26GFIXED IND 12UH 560MA 450 MOHM TH |
2,772 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 12 µH | ±2% | 560 mA | - | Unshielded | 450mOhm Max | 45 @ 2.5MHz | 34MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-28GFIXED IND 15UH 520MA 520 MOHM TH |
4,943 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 15 µH | ±2% | 520 mA | - | Unshielded | 520mOhm Max | 45 @ 2.5MHz | 32MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-30GFIXED IND 18UH 445MA 700 MOHM TH |
3,402 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 18 µH | ±2% | 445 mA | - | Unshielded | 700mOhm Max | 50 @ 2.5MHz | 28MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-32GFIXED IND 22UH 375MA 1 OHM TH |
1,178 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 22 µH | ±2% | 375 mA | - | Unshielded | 1Ohm Max | 60 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-34GFIXED IND 27UH 330MA 1.3 OHM TH |
2,687 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 27 µH | ±2% | 330 mA | - | Unshielded | 1.3Ohm Max | 60 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-36GFIXED IND 33UH 305MA 1.5 OHM TH |
4,900 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 33 µH | ±2% | 305 mA | - | Unshielded | 1.5Ohm Max | 60 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150R-38GFIXED IND 39UH 264MA 2 OHM TH |
3,438 | 5.29 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 39 µH | ±2% | 264 mA | - | Unshielded | 2Ohm Max | 70 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
24M754JLFMOLDED AXL UNSHIELDED RF COILS |
1,492 | 0.00 |
|
Datasheet |
24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 7.5 mH | ±5% | 51 mA | - | Unshielded | 62Ohm Max | 80 @ 250kHz | 1.1MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|

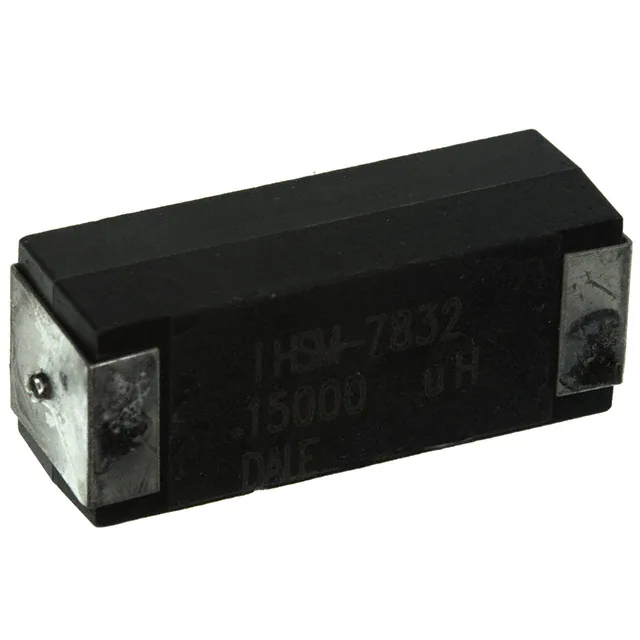

IHSM7832ER103LFIXED IND 10MH 160MA 24.6OHM SMD |
4,145 | 3.40 |
|
Datasheet |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 mH | ±15% | 160 mA | 70mA | Unshielded | 24.6Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
|
HCV1707R1-R48-RFIXED IND 480NH 32A SMD |
3,250 | 3.12 |
|
- |
HCV1707 | Nonstandard, 3 Lead | Bag | Active | - | - | 480 nH | - | 32 A | - | - | - | - | - | - | - | - | - | Surface Mount | 3-SMD | 0.681" L x 0.551" W (17.30mm x 14.00mm) | 0.272" (6.90mm) |
|

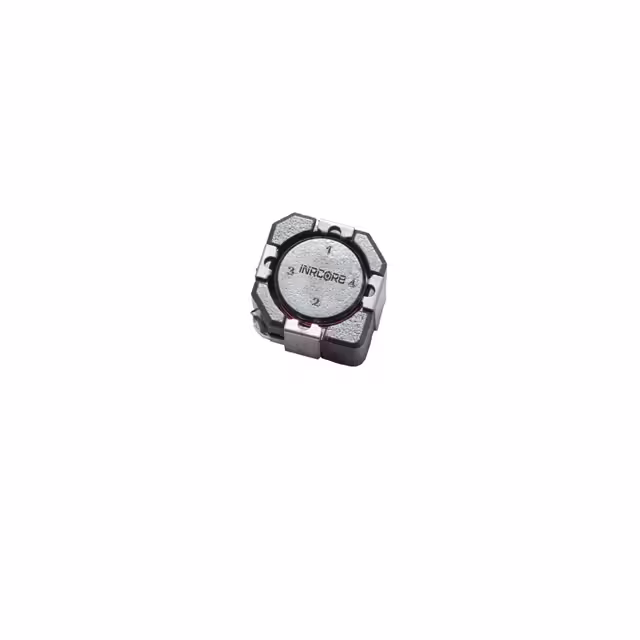

PL9232TFIXED IND 1MH 400MA 2.85 OHM SMD |
2,815 | 6.33 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 400 mA | 410mA | Shielded | 2.85Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
ER5025S-224KMINDUCTOR RF SMD |
3,328 | 0.00 |
|
Datasheet |
ER5025S | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 mH | ±10% | 60 mA | - | Shielded | 33.8Ohm Max | 45 @ 250kHz | 2.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
24M504JMOLDED AXL UNSHIELDED RF COILS |
3,193 | 0.00 |
|
Datasheet |
24M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 5 mH | ±5% | 57 mA | - | Unshielded | 50Ohm Max | 80 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
1840-00HFIXED IND 150NH 3.05A 30 MOHM TH |
4,982 | 3.61 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±3% | 3.05 A | - | Unshielded | 30mOhm Max | 55 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
