Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC630R-222MFIXED IND 2.2UH 12.8A 5 MOHM TH |
2,145 | 5.46 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 12.8 A | 46A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

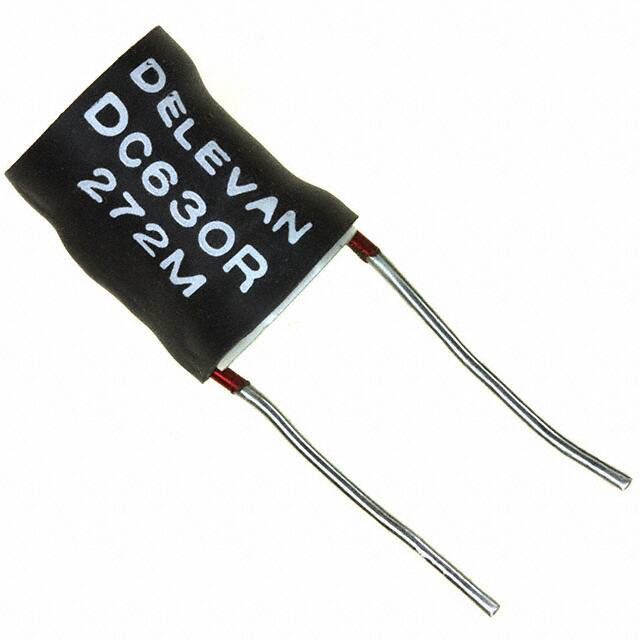

DC630R-272MFIXED IND 2.7UH 12.8A 5 MOHM TH |
3,680 | 5.46 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 12.8 A | 42A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

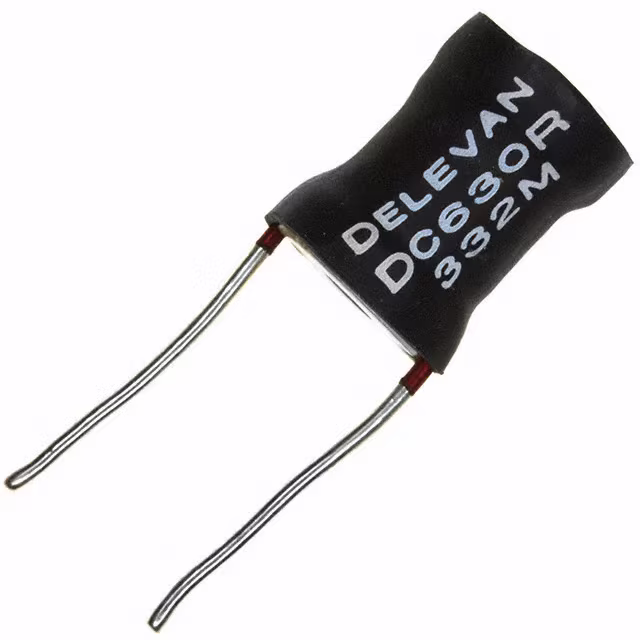

DC630R-332MFIXED IND 3.3UH 12.8A 5 MOHM TH |
2,963 | 5.46 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 12.8 A | 38A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

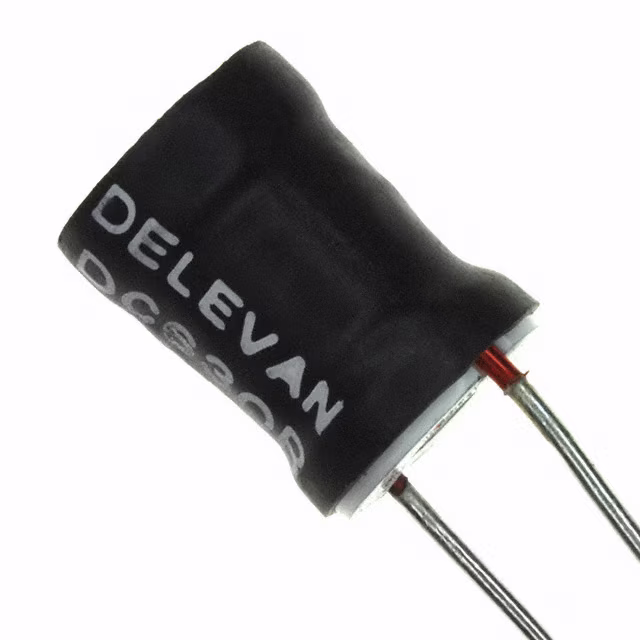

DC630R-392MFIXED IND 3.9UH 12.3A 6 MOHM TH |
2,778 | 5.46 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 12.3 A | 34.5A | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

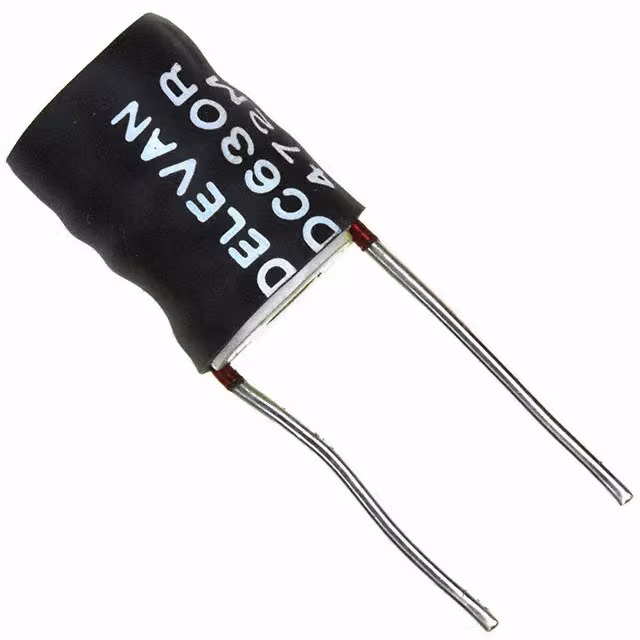

DC630R-472MFIXED IND 4.7UH 11.7A 7 MOHM TH |
3,999 | 5.46 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 11.7 A | 31.5A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

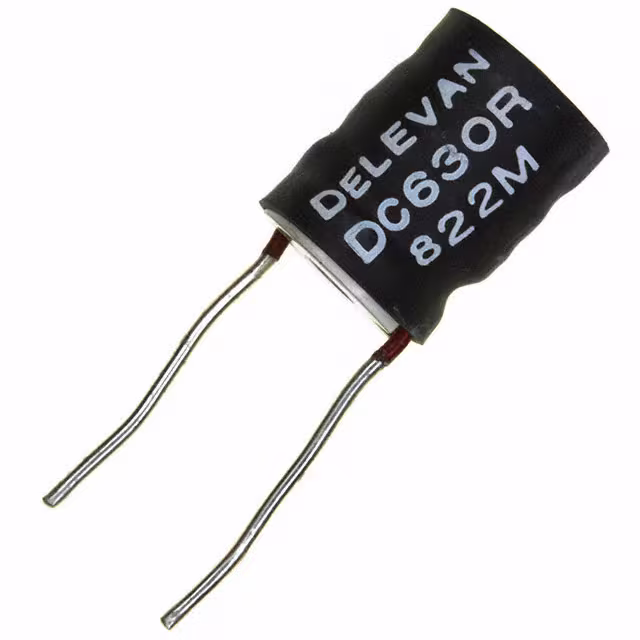

DC630R-822MFIXED IND 8.2UH 10A 9 MOHM TH |
2,661 | 5.46 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 10 A | 24A | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
IH10BQ270KFIXED IND 27UH 12.5A 18 MOHM TH |
4,310 | 6.75 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 12.5 A | 12A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.125" L (23.75mm x 28.58mm) | - |
|
S4924-682KFIXED IND 6.8UH 610MA 1.02OHM SM |
4,566 | 3.29 |
|
Datasheet |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 6.8 µH | ±10% | 610 mA | 610mA | Shielded | 1.02Ohm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
SMRF1210-182GLFMOLDED UNSHIELDED INDUCTOR |
4,899 | 0.00 |
|
Datasheet |
SMRF1210S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 18 µH | ±2% | 237 mA | - | Unshielded | 3.3Ohm Max | 30 @ 2.5MHz | 23MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.130" L x 0.095" W (3.30mm x 2.42mm) | 0.106" (2.70mm) |
|
|
ER1025-21JMFIXED IND 1.1UH 590MA 180MOHM TH |
1,800 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.1 µH | ±5% | 590 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-21JPFIXED IND 1.1UH 590MA 180MOHM TH |
1,305 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.1 µH | ±5% | 590 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-22KMFIXED IND 1.2UH 590MA 180MOHM TH |
4,123 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.2 µH | ±10% | 590 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-22KPFIXED IND 1.2UH 590MA 180MOHM TH |
3,700 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.2 µH | ±10% | 590 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-24KMFIXED IND 1.5UH 535MA 220MOHM TH |
1,131 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.5 µH | ±10% | 535 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-24KPFIXED IND 1.5UH 535MA 220MOHM TH |
1,556 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.5 µH | ±10% | 535 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-26KMFIXED IND 1.8UH 455MA 300MOHM TH |
3,388 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 µH | ±10% | 455 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-26KPFIXED IND 1.8UH 455MA 300MOHM TH |
3,273 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 µH | ±10% | 455 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-26KRFIXED IND 1.8UH 455MA 300MOHM TH |
1,203 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 µH | ±10% | 455 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-28KMFIXED IND 2.2UH 395MA 400MOHM TH |
3,194 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.2 µH | ±10% | 395 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-28KPFIXED IND 2.2UH 395MA 400MOHM TH |
3,361 | 5.87 |
|
Datasheet |
ER1025 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 2.2 µH | ±10% | 395 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
