Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8700NLTFIXED IND 2.2UH 14.4A 4.41 MOHM |
2,456 | 6.59 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.2 µH | ±20% | 14.4 A | - | Unshielded | 4.41mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|

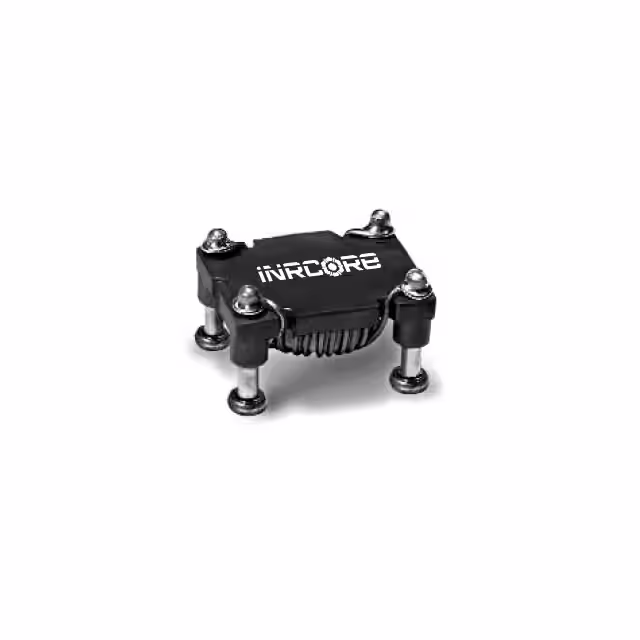

PL8700TFIXED IND 2.2UH 14.4A 4.41 MOHM |
3,328 | 6.59 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.2 µH | ±20% | 14.4 A | - | Unshielded | 4.41mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
S1812-102GFIXED IND 1UH 755MA 350 MOHM SMD |
4,272 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±2% | 755 mA | - | Shielded | 350mOhm Max | 40 @ 7.9MHz | 160MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-103GFIXED IND 10UH 333MA 1.8 OHM SMD |
2,376 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±2% | 333 mA | - | Shielded | 1.8Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-104GFIXED IND 100UH 169MA 7 OHM SMD |
2,065 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±2% | 169 mA | - | Shielded | 7Ohm Max | 40 @ 790kHz | 7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-105GFIXED IND 1MH 60MA 55 OHM SMD |
2,199 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±2% | 60 mA | - | Shielded | 55Ohm Max | 40 @ 790kHz | 2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-122GFIXED IND 1.2UH 725MA 380MOHM SM |
3,798 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±2% | 725 mA | - | Shielded | 380mOhm Max | 40 @ 7.9MHz | 140MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-123GFIXED IND 12UH 315MA 2 OHM SMD |
3,394 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±2% | 315 mA | - | Shielded | 2Ohm Max | 50 @ 2.5MHz | 22MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-124GFIXED IND 120UH 163MA 7.5OHM SMD |
4,578 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±2% | 163 mA | - | Shielded | 7.5Ohm Max | 40 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-152GFIXED IND 1.5UH 706MA 400MOHM SM |
3,707 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±2% | 706 mA | - | Shielded | 400mOhm Max | 40 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-153GFIXED IND 15UH 301MA 2.2 OHM SMD |
3,801 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±2% | 301 mA | - | Shielded | 2.2Ohm Max | 50 @ 2.5MHz | 18MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-154GFIXED IND 150UH 158MA 8 OHM SMD |
2,887 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±2% | 158 mA | - | Shielded | 8Ohm Max | 40 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-182GFIXED IND 1.8UH 681MA 430MOHM SM |
2,030 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±2% | 681 mA | - | Shielded | 430mOhm Max | 40 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-183GFIXED IND 18UH 288MA 2.4 OHM SMD |
4,489 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±2% | 288 mA | - | Shielded | 2.4Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-184GFIXED IND 180UH 153MA 8.5OHM SMD |
3,356 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±2% | 153 mA | - | Shielded | 8.5Ohm Max | 40 @ 790kHz | 4.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-222GFIXED IND 2.2UH 658MA 460MOHM SM |
2,315 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±2% | 658 mA | - | Shielded | 460mOhm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-223GFIXED IND 22UH 277MA 2.6 OHM SMD |
4,507 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±2% | 277 mA | - | Shielded | 2.6Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-224GFIXED IND 220UH 149MA 9 OHM SMD |
2,590 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±2% | 149 mA | - | Shielded | 9Ohm Max | 40 @ 790kHz | 4.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-272GFIXED IND 2.7UH 638MA 490MOHM SM |
2,430 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±2% | 638 mA | - | Shielded | 490mOhm Max | 40 @ 7.9MHz | 67MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|
|
S1812-273GFIXED IND 27UH 267MA 2.8 OHM SMD |
3,378 | 6.66 |
|
Datasheet |
S1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±2% | 267 mA | - | Shielded | 2.8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
