Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER1641-911JSFIXED IND 910NH 1.07A 70 MOHM TH |
3,018 | 6.20 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 910 nH | ±5% | 1.07 A | - | Shielded | 70mOhm Max | 44 @ 25MHz | 140MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
PL9517NLTFIXED IND 68UH 480MA 351MOHM SMD |
2,182 | 6.52 |
|
Datasheet |
PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 480 mA | 480mA | Shielded | 351mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
PL9517TFIXED IND 68UH 480MA 351MOHM SMD |
4,855 | 6.52 |
|
Datasheet |
PL95XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 480 mA | 480mA | Shielded | 351mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.122" (3.10mm) |
|
|
26HF2202VVERTICAL TOROIDAL INDUCTOR |
4,729 | 0.00 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 22 µH | ±10% | 1.9 A | 1.9A | Unshielded | 70mOhm Max | - | 20MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
|
DB3-471RADIAL POWER LINE CHOKE |
4,080 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 21 A | 54A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
LC37-7501SMTOROIDAL INDUCTOR |
1,213 | 0.00 |
|
Datasheet |
LCSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 7.5 µH | ±20% | 5.4 A | - | Shielded | 17.7mOhm Max | - | 31MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.565" L x 0.560" W (14.35mm x 14.22mm) | 0.360" (9.14mm) |
|
|
CPD2320S-150MTHT CLASS D IND FOR DIGITAL AMP |
1,492 | 0.00 |
|
Datasheet |
CPD2320S | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 15 µH | ±20% | 9.8 A | 35A | Shielded | 14.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|
|
CPD2320S-100MTHT CLASS D IND FOR DIGITAL AMP |
3,703 | 0.00 |
|
Datasheet |
CPD2320S | Vertical, 4 PC Pin | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 10 A | 40A | Shielded | 13.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, 4 PC Pin | 0.906" L x 0.787" W (23.00mm x 20.00mm) | 0.906" (23.00mm) |
|

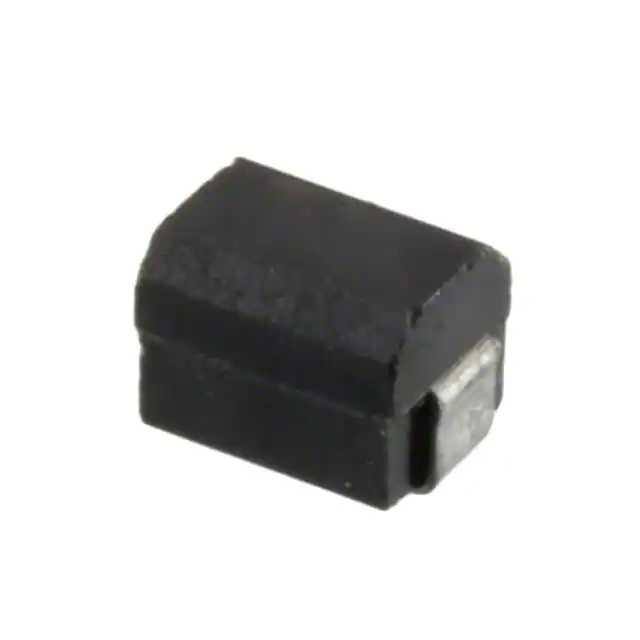

M83446/39-57FFIXED IND 470UH 88MA 26 OHM SMD |
4,827 | 3.63 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±5% | 88 mA | - | Unshielded | 26Ohm Max | 40 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IH10EB500KFIXED IND 50UH 11A 25 MOHM TH |
3,497 | 6.97 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 11 A | 10A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.375" L (23.75mm x 34.93mm) | - |
|
IHA205EBFIXED IND 500UH 2.3A 320 MOHM TH |
2,006 | 6.97 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 2.3 A | - | Unshielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.750" Dia x 1.050" L (19.05mm x 26.67mm) | - |
|
|
ER3013-111JMINDUCTOR RF SMD |
2,538 | 0.00 |
|
Datasheet |
ER3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.1 µH | ±5% | 620 mA | - | Shielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|
|
IHA504EBFIXED IND 50UH 6.1A 40 MOHM TH |
1,671 | 6.99 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 6.1 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.700" Dia x 1.050" L (17.78mm x 26.67mm) | - |
|
|
2510-74FFIXED IND 120UH 52MA 17 OHM SMD |
3,742 | 5.98 |
|
Datasheet |
2510 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 120 µH | ±1% | 52 mA | - | Unshielded | 17Ohm Max | 15 @ 790kHz | 8.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510-76FFIXED IND 150UH 49MA 19 OHM SMD |
4,699 | 5.98 |
|
Datasheet |
2510 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±1% | 49 mA | - | Unshielded | 19Ohm Max | 15 @ 790kHz | 7.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510-78FFIXED IND 180UH 46MA 21.5OHM SMD |
3,270 | 5.98 |
|
Datasheet |
2510 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±1% | 46 mA | - | Unshielded | 21.5Ohm Max | 15 @ 790kHz | 7.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510-80FFIXED IND 220UH 38MA 32 OHM SMD |
1,254 | 5.98 |
|
Datasheet |
2510 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±1% | 38 mA | - | Unshielded | 32Ohm Max | 15 @ 790kHz | 6.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510-82FFIXED IND 270UH 35MA 37 OHM SMD |
3,460 | 5.98 |
|
Datasheet |
2510 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±1% | 35 mA | - | Unshielded | 37Ohm Max | 15 @ 790kHz | 6.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510-84FFIXED IND 330UH 31MA 47 OHM SMD |
4,539 | 5.98 |
|
Datasheet |
2510 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±1% | 31 mA | - | Unshielded | 47Ohm Max | 15 @ 790kHz | 5.3MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
|
|
2510-86FFIXED IND 390UH 30MA 53 OHM SMD |
3,316 | 5.98 |
|
Datasheet |
2510 | 2-SMD | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±1% | 30 mA | - | Unshielded | 53Ohm Max | 15 @ 790kHz | 5MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | 0.110" (2.79mm) |
