Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8705NLTFIXED IND 18.5UH 5.2A 23.24 MOHM |
3,089 | 7.40 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 18.5 µH | ±20% | 5.2 A | - | Unshielded | 23.24mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
SMP2007-330MLFVERTICAL MOUNT TOROIDAL INDUCTOR |
1,092 | 0.00 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 330 nH | ±20% | 5.1 mA | 6A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
IH10BQ680KFIXED IND 68UH 10A 27 MOHM TH |
3,193 | 7.39 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 10 A | 8A | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.375" L (23.75mm x 34.93mm) | - |
|
|
PL9219NLTFIXED IND 82UH 1.36A 232MOHM SMD |
3,689 | 7.54 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.36 A | 1.4A | Shielded | 232mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
PL9220NLTFIXED IND 100UH 1.29A 270MOHM SM |
3,868 | 7.54 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.29 A | 1.3A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
PQ108081-471MHFFIXED IND 470UH 4.5A 76.5MOHM SM |
2,633 | 6.90 |
|
Datasheet |
PQ108081 | Nonstandard | Tray | Active | - | Ferrite | 470 µH | ±20% | 4.5 A | 4.5A | Shielded | 76.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-101MHFFIXED IND 100UH 10A 22 MOHM SMD |
3,492 | 6.90 |
|
Datasheet |
PQ108081 | Nonstandard | Tray | Active | - | Ferrite | 100 µH | ±20% | 10 A | 9.8A | Shielded | 22mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-151MHFFIXED IND 150UH 7.5A 31.5MOHM SM |
4,558 | 6.90 |
|
Datasheet |
PQ108081 | Nonstandard | Tray | Active | - | Ferrite | 150 µH | ±20% | 7.5 A | 8.7A | Shielded | 31.5mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|
|
PQ108081-331MHFFIXED IND 330UH 5.5A 56MOHM SMD |
3,318 | 6.90 |
|
Datasheet |
PQ108081 | Nonstandard | Tray | Active | - | Ferrite | 330 µH | ±20% | 5.5 A | 5.3A | Shielded | 56mOhm | - | - | - | -55°C ~ 130°C | 300 kHz | - | Surface Mount | - | 1.100" L x 1.100" W (27.94mm x 27.94mm) | 0.787" (20.00mm) |
|

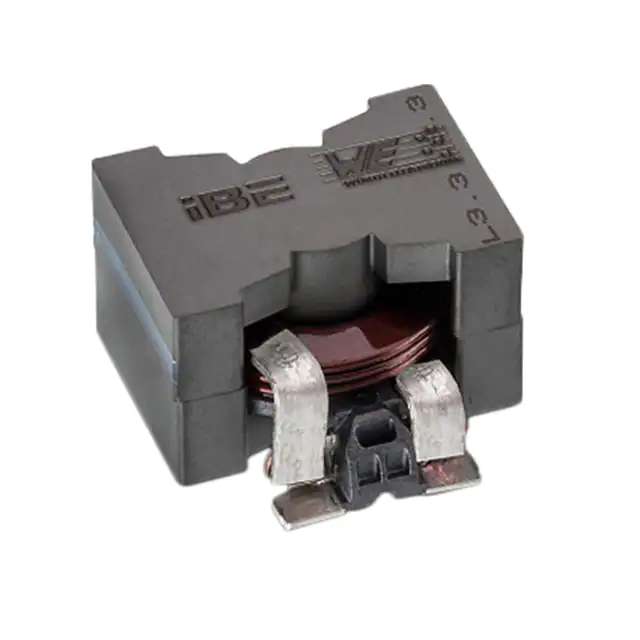

701014330FIXED IND 3.3UH 35A 1.1 MOHM SMD |
3,273 | 0.00 |
|
Datasheet |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±15% | 35 A | 40A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
701014470FIXED IND 4.7UH 35A 1.1 MOHM SMD |
3,760 | 0.00 |
|
Datasheet |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±15% | 35 A | 30A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
701014680FIXED IND 6.8UH 35A 1.1 MOHM SMD |
3,984 | 0.00 |
|
Datasheet |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±15% | 35 A | 20A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
MLP8527-152LHIGH CURRENT T-LEVEL INDUCTOR |
3,639 | 0.00 |
|
Datasheet |
MLP8527 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±15% | 2.97 A | 1.6A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.295" W (21.85mm x 7.49mm) | 0.286" (7.26mm) |
|
|
IH15BQ270KFIXED IND 27UH 16A 15 MOHM TH |
1,245 | 7.44 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 16 A | 14A | Unshielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.375" L (25.40mm x 34.93mm) | - |
|
|
2500R-30GFIXED IND 1.1MH 81MA 21 OHM TH |
2,309 | 6.64 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.1 mH | ±2% | 81 mA | - | Unshielded | 21Ohm Max | 60 @ 250kHz | 2.8MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-32GFIXED IND 1.2MH 79MA 22 OHM TH |
2,809 | 6.64 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.2 mH | ±2% | 79 mA | - | Unshielded | 22Ohm Max | 60 @ 250kHz | 2.7MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-34GFIXED IND 1.3MH 78MA 23 OHM TH |
2,118 | 6.64 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.3 mH | ±2% | 78 mA | - | Unshielded | 23Ohm Max | 60 @ 250kHz | 2.6MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-36GFIXED IND 1.5MH 76MA 25 OHM TH |
1,166 | 6.64 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.5 mH | ±2% | 76 mA | - | Unshielded | 25Ohm Max | 65 @ 250kHz | 2.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-38GFIXED IND 1.6MH 74MA 26 OHM TH |
2,476 | 6.64 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.6 mH | ±2% | 74 mA | - | Unshielded | 26Ohm Max | 65 @ 250kHz | 2.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500R-40GFIXED IND 1.8MH 71MA 28 OHM TH |
3,881 | 6.64 |
|
Datasheet |
2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.8 mH | ±2% | 71 mA | - | Unshielded | 28Ohm Max | 65 @ 250kHz | 2.2MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
