Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9225NLTFIXED IND 270UH 780MA 775MOHM SM |
2,985 | 7.61 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 780 mA | 790mA | Shielded | 775mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
030AT1002SMWIREWOUND TOROIDAL INDUCTOR |
4,345 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10 µH | ±10% | 2.56 A | 3.4A | Shielded | 50mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
26HF1802HHORIZONTAL TOROIDAL INDUCTOR |
3,770 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 18 µH | ±10% | 2.05 A | 2A | Unshielded | 60mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
SMP5057-393KLFMOLDED UNSHIELDED INDUCTOR |
4,813 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±10% | 1.52 A | 2.7A | Unshielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-274MLFMOLDED UNSHIELDED INDUCTOR |
3,757 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 2.7 mH | ±20% | 560 mA | 1A | Unshielded | 2.13Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
DB3-822RADIAL POWER LINE CHOKE |
3,348 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 82 µH | ±10% | 9 A | 14A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-682RADIAL POWER LINE CHOKE |
4,467 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 68 µH | ±10% | 9 A | 15.6A | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-183RADIAL POWER LINE CHOKE |
3,294 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 180 µH | ±10% | 5.5 A | 9.7A | Unshielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-223RADIAL POWER LINE CHOKE |
2,068 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 220 µH | - | 5.5 A | 8.7A | Unshielded | 61mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-123RADIAL POWER LINE CHOKE |
3,460 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 120 µH | ±10% | 7.2 A | 12.1A | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-273RADIAL POWER LINE CHOKE |
2,095 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 270 µH | ±10% | 4.5 A | 7.9A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-103LFRADIAL POWER LINE CHOKE |
3,096 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 100 µH | ±10% | 9 A | 13.2A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-153RADIAL POWER LINE CHOKE |
4,196 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 150 µH | ±10% | 5.5 A | 10.8A | Unshielded | 51mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|

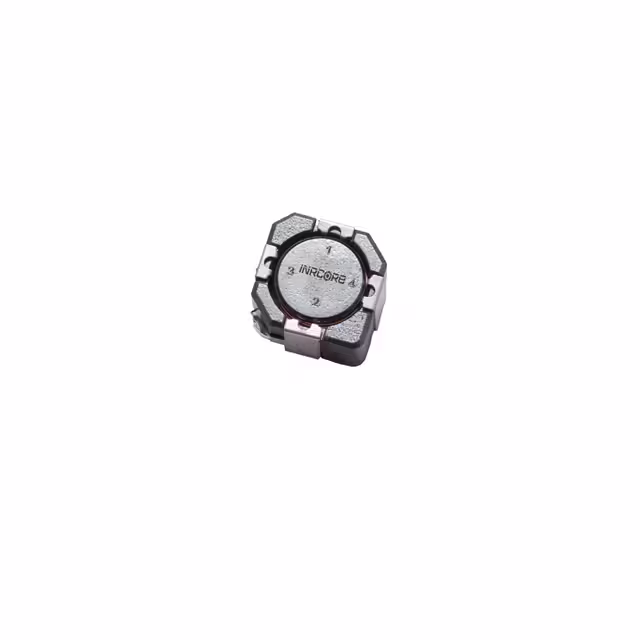

PL9311TFIXED IND 22UH 2.3A 77 MOHM SMD |
2,691 | 7.75 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.3 A | 2.8A | Shielded | 77mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
ER1641-101JMFIXED IND 100NH 1.79A 25 MOHM TH |
3,868 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±5% | 1.79 A | - | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-101JPFIXED IND 100NH 1.79A 25 MOHM TH |
2,270 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±5% | 1.79 A | - | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-101JRFIXED IND 100NH 1.79A 25 MOHM TH |
2,744 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±5% | 1.79 A | - | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-101JSFIXED IND 100NH 1.79A 25 MOHM TH |
1,910 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±5% | 1.79 A | - | Shielded | 25mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-111JMFIXED IND 110NH 1.53A 34 MOHM TH |
4,319 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 110 nH | ±5% | 1.53 A | - | Shielded | 34mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-111JPFIXED IND 110NH 1.53A 34 MOHM TH |
2,864 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 110 nH | ±5% | 1.53 A | - | Shielded | 34mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
