Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER1641-821JMFIXED IND 820NH 370MA 590MOHM TH |
1,014 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±5% | 370 mA | - | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-821JPFIXED IND 820NH 370MA 590MOHM TH |
2,842 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±5% | 370 mA | - | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-821JRFIXED IND 820NH 370MA 590MOHM TH |
2,166 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±5% | 370 mA | - | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-821JSFIXED IND 820NH 370MA 590MOHM TH |
1,305 | 6.90 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±5% | 370 mA | - | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
LC30-3532SMTOROIDAL INDUCTOR |
3,029 | 0.00 |
|
Datasheet |
LCSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 35.3 µH | ±20% | 1.7 A | - | Shielded | 166mOhm Max | - | 12MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
LC30-3532SMLFTOROIDAL INDUCTOR |
2,231 | 0.00 |
|
Datasheet |
LCSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 35.3 µH | ±20% | 1.7 A | - | Shielded | 166mOhm Max | - | 12MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
PL9125TFIXED IND 270UH 910MA 460MOHM SM |
1,068 | 7.69 |
|
Datasheet |
PL91XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 910 mA | 910mA | Shielded | 460mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
GT10-100LFVERTICAL MOUNT TOROIDAL CHOKE |
1,647 | 0.00 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 21 µH | -12%, +30% | 2.5 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 0.550" Dia x 0.250" W (13.97mm x 6.35mm) | - |
|
|
GT10-104LFVERTICAL MOUNT TOROIDAL CHOKE |
4,030 | 0.00 |
|
Datasheet |
GT10 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 61 µH | -12%, +30% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 0.860" Dia x 0.360" W (21.85mm x 9.14mm) | - |
|
|
050KM1002HHORIZONTAL TOROIDAL INDUCTOR |
2,209 | 0.00 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 10 µH | ±10% | 7.36 A | 3.3A | Shielded | 10mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.625" Dia (15.88mm) | 0.300" (7.62mm) |
|

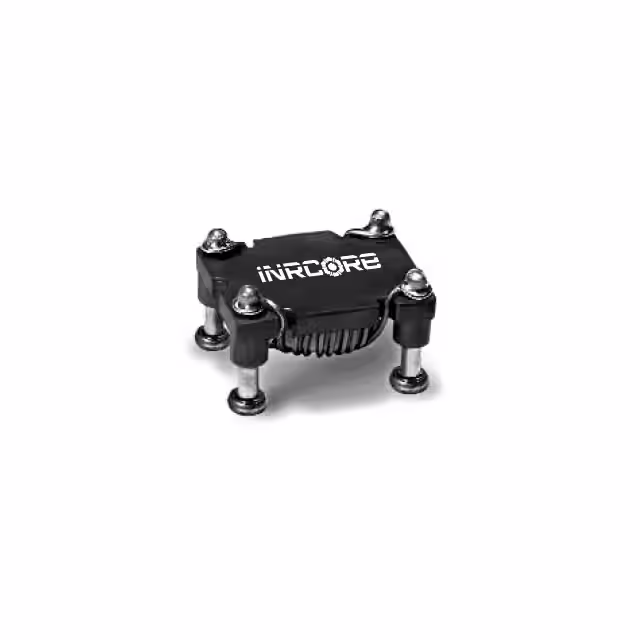

PL8600FIXED IND 2.2UH 8.3A 8 MOHM SMD |
1,955 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±10% | 8.3 A | - | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8600NLFIXED IND 2.2UH 8.3A 8 MOHM SMD |
2,148 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 2.2 µH | ±10% | 8.3 A | - | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8601FIXED IND 2.6UH 7.2A 10.9MOHM SM |
3,875 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 2.6 µH | ±10% | 7.2 A | - | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8601NLFIXED IND 2.6UH 7.2A 10.9MOHM SM |
3,931 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 2.6 µH | ±10% | 7.2 A | - | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8602FIXED IND 5.5UH 5.2A 19 MOHM SMD |
3,033 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 5.5 µH | ±10% | 5.2 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8602NLFIXED IND 5.5UH 5.2A 19 MOHM SMD |
2,372 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 5.5 µH | ±10% | 5.2 A | - | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8603FIXED IND 10.4UH 3.8A 30MOHM SMD |
1,762 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8603NLFIXED IND 10.4UH 3.8A 30MOHM SMD |
4,694 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 10.4 µH | ±10% | 3.8 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
PL8604FIXED IND 15.7UH 3.1A 45.5 MOHM |
1,184 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 15.7 µH | ±10% | 3.1 A | - | Unshielded | 45.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8604NLFIXED IND 15.7UH 3.1A 45.5 MOHM |
2,837 | 7.61 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 15.7 µH | ±10% | 3.1 A | - | Unshielded | 45.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
