Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPI4020V2-1R5-RFIXED IND 1.5UH 5A 30 MOHM SMD |
2,120 | 1.64 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | 45MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|

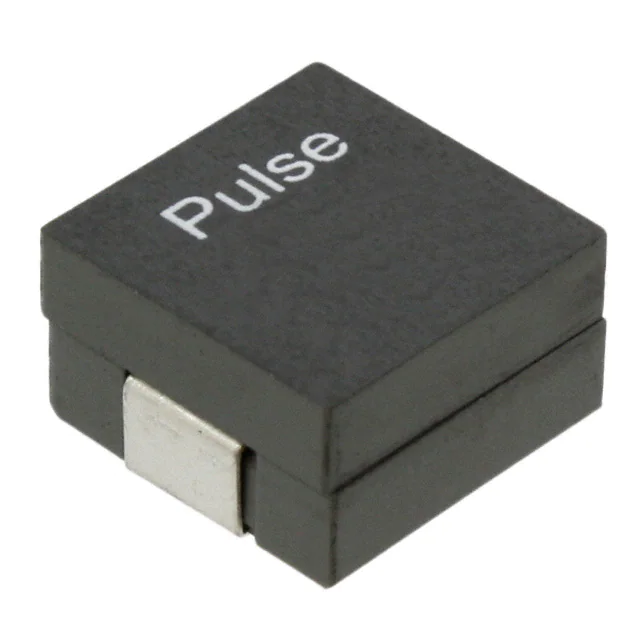

PA0513.441NLTFIXED IND 440NH 30A 0.32MOHM SMD |
1,743 | 2.15 |
|
Datasheet |
PA0513NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 440 nH | ±20% | 30 A | 35A | Shielded | 0.32mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.530" L x 0.510" W (13.46mm x 12.95mm) | 0.315" (8.00mm) |
|
B82464P4682M000FIXED IND 6.8UH 4.3A 20 MOHM SMD |
1,333 | 2.36 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 4.3 A | 4.6A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
CDEP147NP-8R0MC-125FIXED IND 8UH 11A 7.8 MOHM SMD |
1,162 | 2.17 |
|
Datasheet |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8 µH | ±20% | 11 A | 10A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
B82464P4472M000FIXED IND 4.7UH 4.9A 15 MOHM SMD |
464 | 2.36 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.9 A | 5.2A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
5900-100-RCFIXED IND 10UH 4.7A 19 MOHM TH |
18,184 | 2.80 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 4.7 A | 8.7A | Unshielded | 19mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
74438356018HTFIXED IND 1.8UH 4.6A 29.9MOHM SM |
5,180 | 2.09 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 4.6 A | 6.2A | Shielded | 29.9mOhm Max | - | 37.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
P1174.103NLTFIXED IND 10UH 800MA 73 MOHM SMD |
5,056 | 2.06 |
|
Datasheet |
P1174NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 800 mA | 800mA | Shielded | 73mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.265" L x 0.175" W (6.73mm x 4.45mm) | 0.110" (2.79mm) |
|
|
74438356033HTFIXED IND 3.3UH 3.6A 51.8MOHM SM |
3,887 | 2.09 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 3.6 A | 4.8A | Shielded | 51.8mOhm Max | - | 25.5MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
5900-222-RCFIXED IND 2.2MH 500MA 1.7 OHM TH |
3,851 | 2.80 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 500 mA | 560mA | Unshielded | 1.7Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
74438356010HTFIXED IND 1UH 7.2A 15.5MOHM SMD |
1,892 | 2.09 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 7.2 A | 6.5A | Shielded | 15.5mOhm Max | - | 46MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
744383560056HTFIXED IND 560NH 8.2A 8.6MOHM SMD |
1,332 | 2.09 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 8.2 A | 9.55A | Shielded | 8.6mOhm Max | - | 72MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
FP1308R3-R32-RFIXED IND 320NH 68A 0.18MOHM SMD |
8,970 | 1.76 |
|
Datasheet |
FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 320 nH | ±10% | 68 A | 52A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|
ETQ-P5MR68YLCFIXED IND 680NH 31.5A 1.93 MOHM |
1,665 | 2.30 |
|
Datasheet |
PCC-M1050ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 31.5 A | 42A | Shielded | 1.93mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|
DRA74-680-RFIXED IND 68UH 996MA 286MOHM SMD |
1,520 | 3.06 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 996 mA | 1.108A | Shielded | 286mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
7447783220FIXED IND 22UH 1.75A 115MOHM SMD |
1,151 | 2.51 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.75 A | 2.15A | Shielded | 115mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
SLF12565T-471MR70-HFIXED IND 470UH 750MA 924MOHM SM |
980 | 2.24 |
|
Datasheet |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 750 mA | 700mA | Shielded | 924mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
7447783221FIXED IND 220UH 540MA 1.04OHM SM |
891 | 2.51 |
|
Datasheet |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 540 mA | 690mA | Shielded | 1.04Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.138" (3.50mm) |
|
|
B82464P4474M000FIXED IND 470UH 500MA 930MOHM SM |
720 | 2.64 |
|
Datasheet |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | 550mA | Shielded | 930mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
PA4346.102ANLTFIXED IND 1UH 27A 1.9 MOHM SMD |
3,945 | 2.19 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 27 A | 34A | Shielded | 1.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
