Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5022R-684FFIXED IND 680UH 116MA 27.2OHM SM |
2,807 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 680 µH | ±1% | 116 mA | - | Unshielded | 27.2Ohm Max | 65 @ 790kHz | 3.1MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-751FFIXED IND 750NH 1.425A 180 MOHM |
4,134 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 750 nH | ±1% | 1.425 A | - | Unshielded | 180mOhm Max | 50 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-752FFIXED IND 7.5UH 765MA 550MOHM SM |
3,250 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 7.5 µH | ±1% | 765 mA | - | Unshielded | 550mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-753FFIXED IND 75UH 302MA 3.7 OHM SMD |
2,846 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 75 µH | ±1% | 302 mA | - | Unshielded | 3.7Ohm Max | 55 @ 2.5MHz | 10.5MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-754FFIXED IND 750UH 112MA 28.6OHM SM |
3,482 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 750 µH | ±1% | 112 mA | - | Unshielded | 28.6Ohm Max | 65 @ 790kHz | 2.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-821FFIXED IND 820NH 1.3A 220MOHM SMD |
3,874 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±1% | 1.3 A | - | Unshielded | 220mOhm Max | 50 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-822FFIXED IND 8.2UH 748MA 600MOHM SM |
3,922 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±1% | 748 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-823FFIXED IND 82UH 295MA 3.9 OHM SMD |
2,991 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 82 µH | ±1% | 295 mA | - | Unshielded | 3.9Ohm Max | 50 @ 2.5MHz | 10.3MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-824FFIXED IND 820UH 110MA 30 OHM SMD |
2,188 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 820 µH | ±1% | 110 mA | - | Unshielded | 30Ohm Max | 65 @ 790kHz | 2.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-911FFIXED IND 910NH 1.24A 240MOHM SM |
4,969 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 910 nH | ±1% | 1.24 A | - | Unshielded | 240mOhm Max | 50 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-912FFIXED IND 9.1UH 638MA 800MOHM SM |
1,279 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 9.1 µH | ±1% | 638 mA | - | Unshielded | 800mOhm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-913FFIXED IND 91UH 280MA 4.3 OHM SMD |
2,489 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 91 µH | ±1% | 280 mA | - | Unshielded | 4.3Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022R-914FFIXED IND 910UH 107MA 31.5OHM SM |
3,611 | 7.33 |
|
Datasheet |
5022R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 910 µH | ±1% | 107 mA | - | Unshielded | 31.5Ohm Max | 65 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
26HF2202HHORIZONTAL TOROIDAL INDUCTOR |
1,586 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 22 µH | ±10% | 1.9 A | 1.9A | Unshielded | 70mOhm Max | - | 20MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|

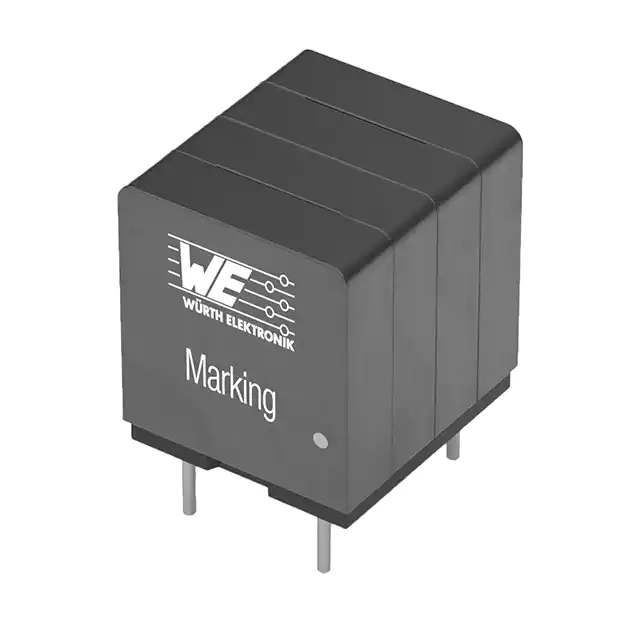

7444211415150FIXED IND 15UH 5.8A 14.6MOHM TH |
4,099 | 8.08 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 5.8 A | 9.5A | Unshielded | 14.6mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|
|
2150-00FFIXED IND 470NH 2.27A 60 MOHM TH |
2,736 | 6.35 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±1% | 2.27 A | - | Unshielded | 60mOhm Max | 65 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-01FFIXED IND 560NH 2.1A 70 MOHM TH |
4,384 | 6.35 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±1% | 2.1 A | - | Unshielded | 70mOhm Max | 65 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-02FFIXED IND 680NH 1.96A 80 MOHM TH |
4,712 | 6.35 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±1% | 1.96 A | - | Unshielded | 80mOhm Max | 65 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-03FFIXED IND 820NH 1.67A 110MOHM TH |
1,409 | 6.35 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±1% | 1.67 A | - | Unshielded | 110mOhm Max | 65 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
2150-04FFIXED IND 1UH 1.48A 140 MOHM TH |
3,910 | 6.35 |
|
Datasheet |
2150 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±1% | 1.48 A | - | Unshielded | 140mOhm Max | 65 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
