Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP5057-273KLFMOLDED UNSHIELDED INDUCTOR |
1,963 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±10% | 1.72 A | 3.2A | Unshielded | 226mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
GT20-103-2VERTICAL MOUNT TOROIDAL CHOKE |
3,095 | 0.00 |
|
Datasheet |
GT20 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | - | 4A | Unshielded | 40mOhm | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical (Open) | 0.950" Dia x 0.640" L (24.13mm x 16.26mm) | - |
|
|
26HF4702HHORIZONTAL TOROIDAL INDUCTOR |
4,585 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 47 µH | ±10% | 1.45 A | 1.3A | Unshielded | 120mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
26HF4702VVERTICAL TOROIDAL INDUCTOR |
4,640 | 0.00 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 47 µH | ±10% | 1.45 A | 1.3A | Unshielded | 120mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
|
50PX4703HLFHORIZONTAL TOROIDAL INDUCTOR |
4,444 | 0.00 |
|
Datasheet |
PX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 470 µH | ±15% | 1.1 A | 500mA | Unshielded | 400mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial, Horizontal (Open) | 0.620" Dia (15.75mm) | 0.340" (8.64mm) |
|

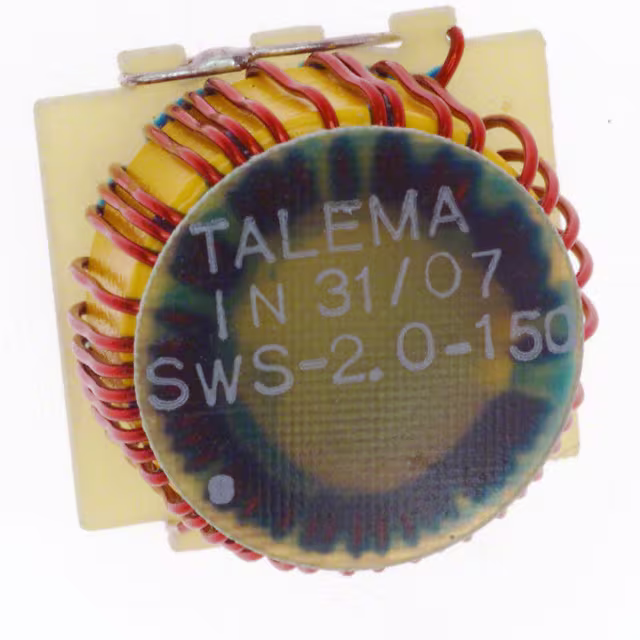

SWS-2.0-150FIXED IND 150UH 2A 100 MOHM SMD |
3,302 | 5.25 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.541" (13.75mm) |
|
|
030KM1503SMTOROIDAL INDUCTOR |
2,177 | 0.00 |
|
Datasheet |
KMSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±10% | 1.33 A | 400mA | Shielded | 185mOhm Max | - | 3.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
50PX4703HHORIZONTAL TOROIDAL INDUCTOR |
3,982 | 0.00 |
|
Datasheet |
PX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 470 µH | ±15% | 1.1 A | 500mA | Unshielded | 400mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.620" Dia (15.75mm) | 0.340" (8.64mm) |
|
|
50PX4703VVERTICAL TOROIDAL INDUCTOR |
4,377 | 0.00 |
|
Datasheet |
PX | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 470 µH | ±15% | 1.1 A | 500mA | Unshielded | 400mOhm Max | - | 1MHz | AEC-Q200 | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.620" Dia x 0.340" L (15.75mm x 8.64mm) | - |
|
|
059KM1002HHORIZONTAL TOROIDAL INDUCTOR |
4,941 | 0.00 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 10 µH | ±10% | 14.5 A | 13A | Shielded | 8mOhm Max | - | 20MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
SMP5057-683KMOLDED UNSHIELDED INDUCTOR |
2,573 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 680 µH | ±10% | 1.08 A | 2A | Unshielded | 570mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-393KMOLDED UNSHIELDED INDUCTOR |
1,043 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±10% | 1.52 A | 2.7A | Unshielded | 288mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-473KMOLDED UNSHIELDED INDUCTOR |
4,497 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±10% | 1.3 A | 2.5A | Unshielded | 393mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-823KMOLDED UNSHIELDED INDUCTOR |
2,357 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 820 µH | ±10% | 1.02 A | 1.9A | Unshielded | 643mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-563KMOLDED UNSHIELDED INDUCTOR |
1,293 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±10% | 1.15 A | 2.3A | Unshielded | 504mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
MLP8527-183LHIGH CURRENT T-LEVEL INDUCTOR |
2,397 | 0.00 |
|
Datasheet |
MLP8527 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 µH | ±15% | 990 mA | 480mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.295" W (21.85mm x 7.49mm) | 0.286" (7.26mm) |
|
|
SMP8527-393MMOLDED UNSHIELDED INDUCTOR |
3,105 | 0.00 |
|
Datasheet |
SMP8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±20% | 799 mA | 540mA | Unshielded | 770mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
PL9317NLTFIXED IND 220UH 730MA 739MOHM SM |
3,333 | 7.86 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 730 mA | 920mA | Shielded | 739mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
DC1050-104KFIXED IND 100UH 7.5A 34 MOHM TH |
2,350 | 7.63 |
|
Datasheet |
DC1050 | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 100 µH | ±10% | 7.5 A | 9A | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.180" Dia (29.98mm) | 0.840" (21.34mm) |
|
|
DC1050-124KFIXED IND 120UH 6.5A 46 MOHM TH |
4,752 | 7.63 |
|
Datasheet |
DC1050 | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 120 µH | ±10% | 6.5 A | 8A | Unshielded | 46mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.180" Dia (29.98mm) | 0.840" (21.34mm) |
